MOTHERBOARDS

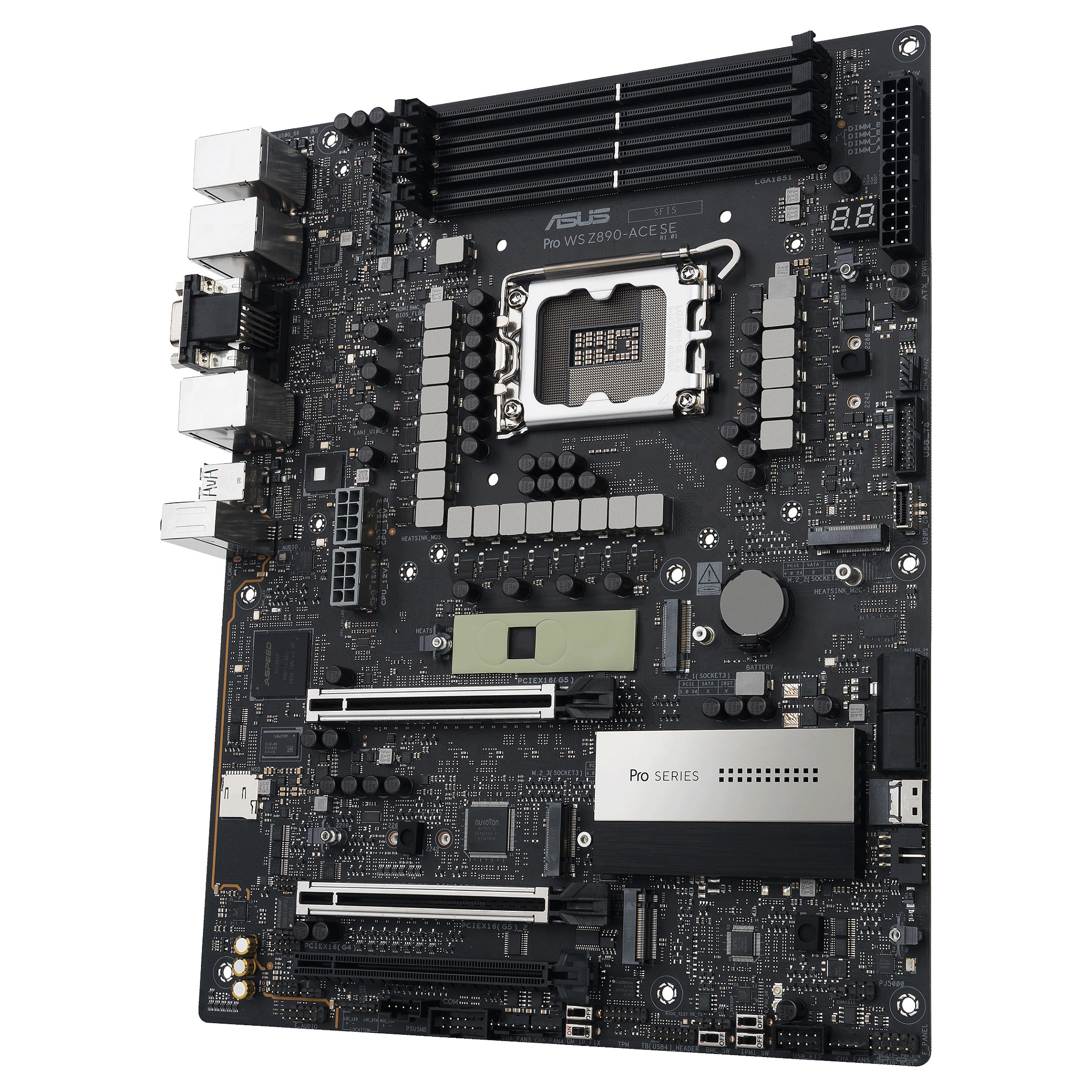

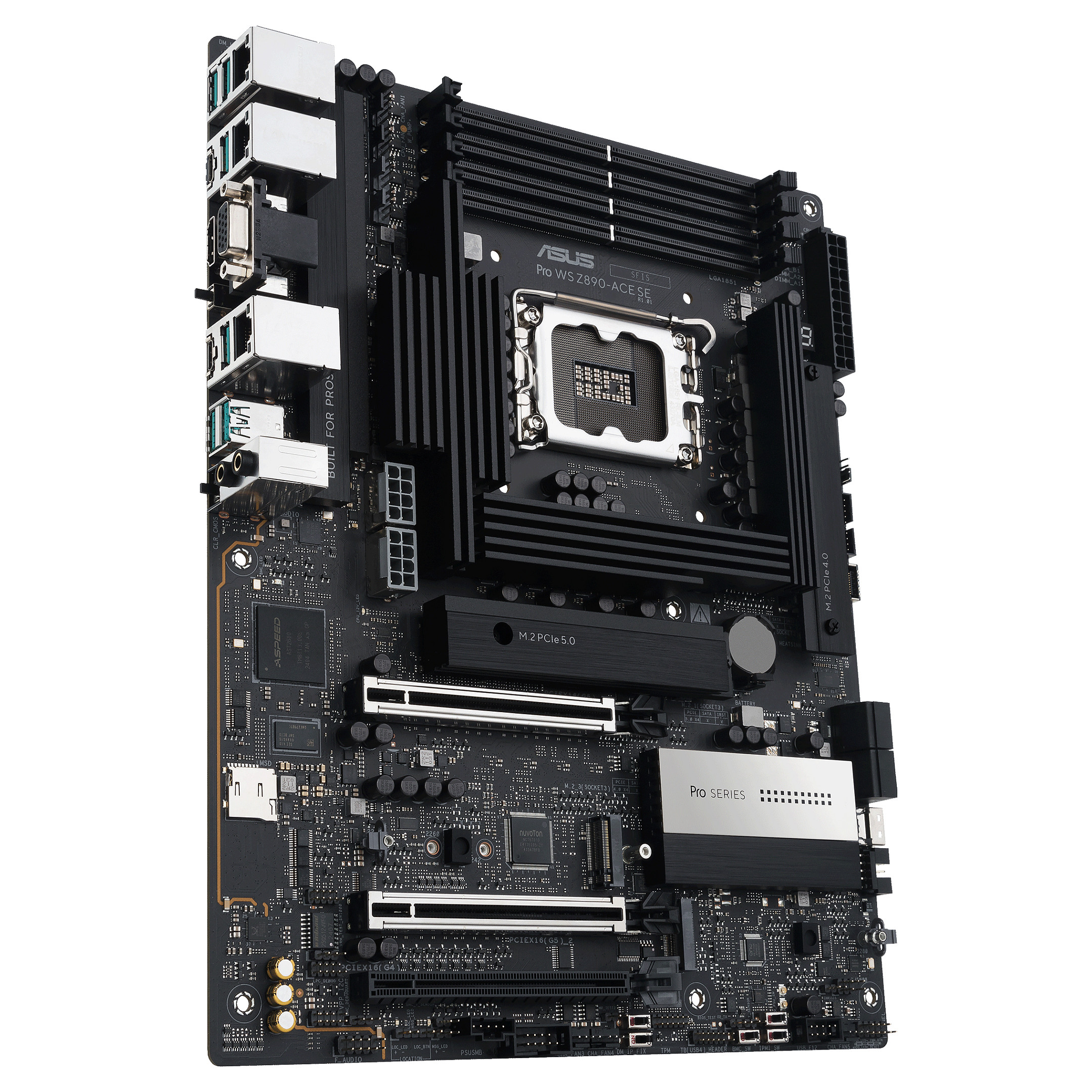

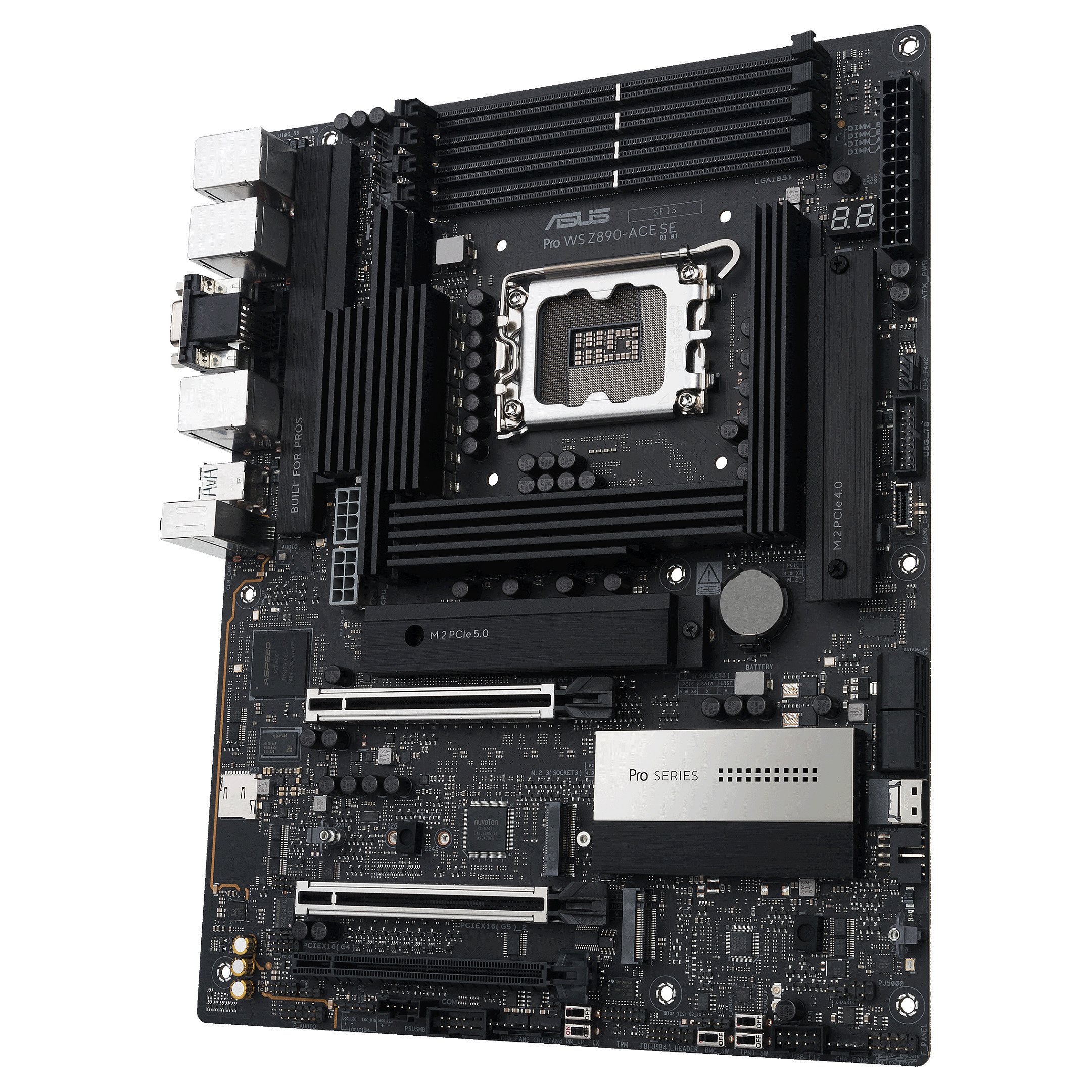

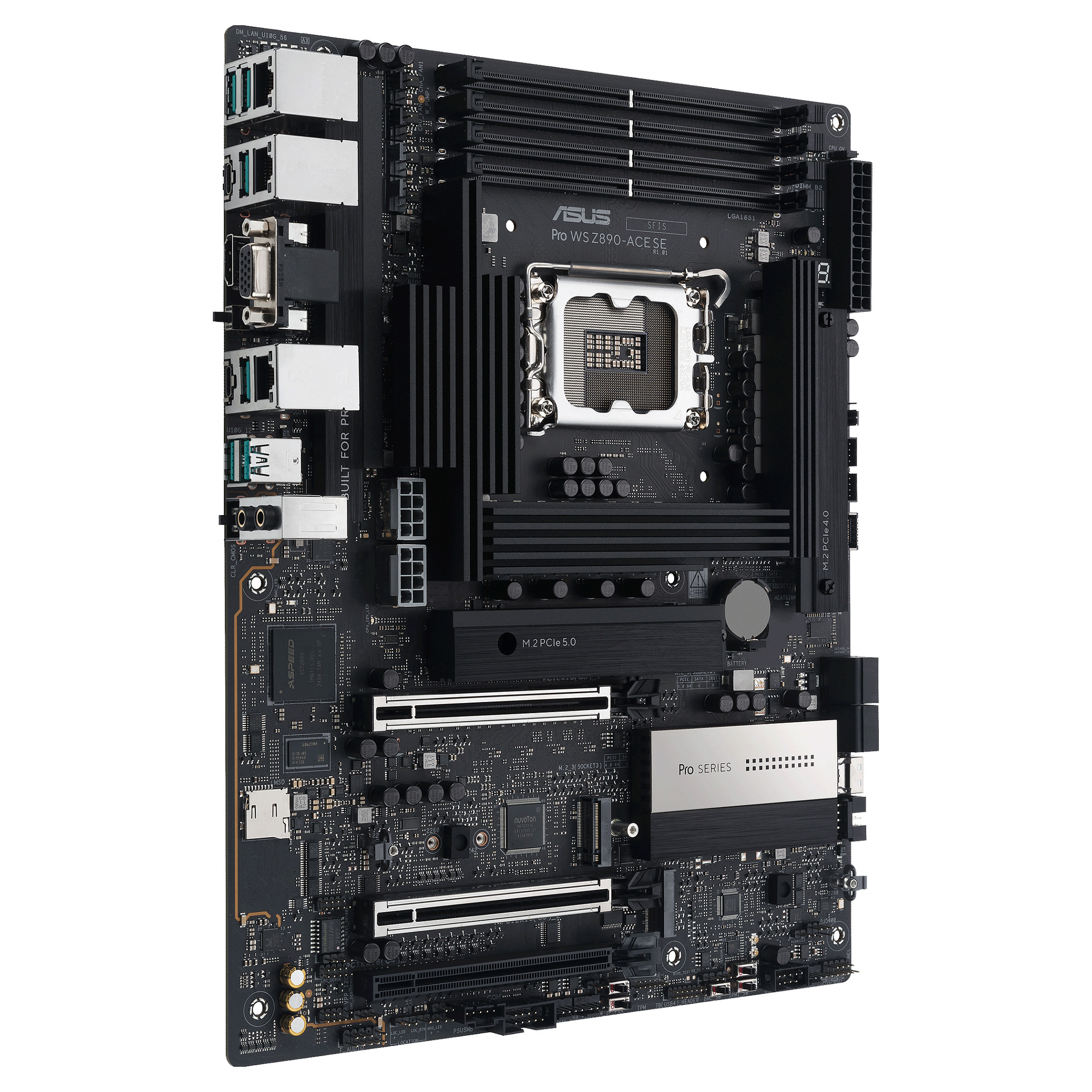

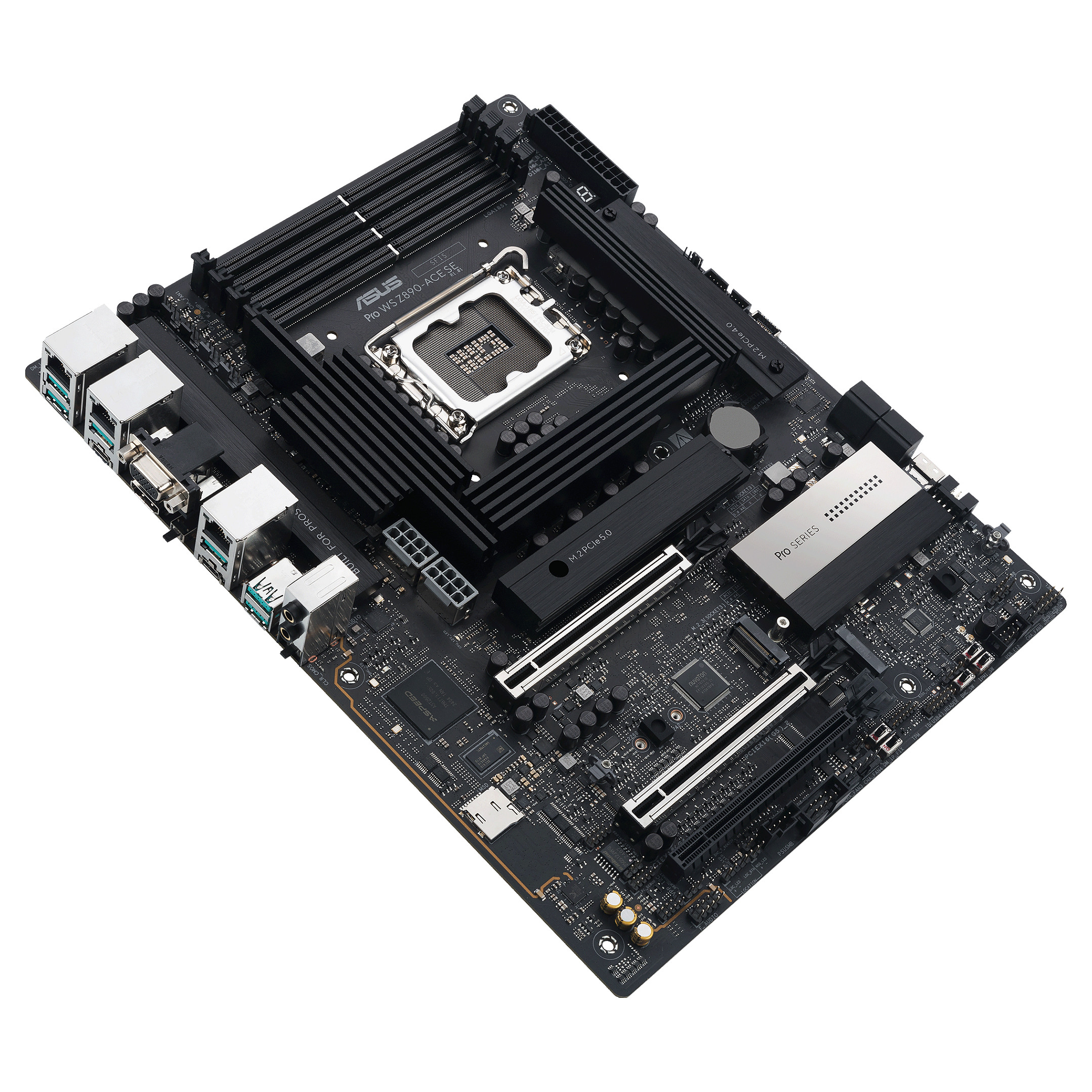

The Pro WS Z890-ACE SE empowers workstation users of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages. 0 and lightning-fast connectivity including Thunderbolt™ 4 port. The workstation motherboard is engineered to support dual graphics cards. making it an ideal choice for content creation. Thunderbolt™ Connectivity. The Pro WS Z890-ACE SE features a Thunderbolt™ 4 port. offering high-speed data transfers up to 40Gbps. This allows large files and datasets to be transferred in seconds. boosting productivity for workstation users. AI and deep learning experts. Thunderbolt™ 4 also supports multiple 4K displays or a single 8K display for clear and smooth visuals. essential for professional applications. Its strong compatibility with existing Thunderbolt™ and USB devices simplifies connectivity and management. The Pro WS Z890-ACE SE offers PCIe 5. 0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. Both of the x16 expansion slots are PCIe 5. offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards. they are also protected with SafeSlot retention brackets. and the both slots can be released easily via Q-Release Slim. The Pro WS Z890-ACE SE workstation motherboard features compatibility with BMC connections. and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries. ASUS Control Center Express. A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures. and it comes with an active fan to enhance thermal efficiency. Enable or disable the USB port. or set it to Read Only to prevent data leaks. a software blacklist is available to help prevent the use of high-risk applications. Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations. The Core of Your Powerful Workstation. Designed to meet the needs of high-core-count CPUs. the Pro WS Z890-ACE SE features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery. stability and performance for new Intel® Core™ Ultra Processors (Series 2). This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking. These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure. Superior Chokes & Capacitors. These are engineered to resist extreme temperatures. providing a higher level of performance than the industry standard. The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU. The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click. increasing performance by up to 24%. The Pro WS Z890-ACE SE enhances DDR5 performance by providing overclocking options that would otherwise be locked. whether you are dealing with high-speed or entry-level memory modules. DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency. compatibility and system stability. Whether you are an overclocker seeking ultimate performance. a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability. DIMM Fit provides optimizations tailored to your needs and your hardware configuration. ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process. AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability. even at cutting-edge speeds of DDR5-8000 or higher. Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits. Balance the thermals and acoustics of any build with a single click. Using AI technology to understand natural-language questions or scenario descriptions. ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. PCIe® Slot Q-Release Slim. The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot. This design also keeps the original method of removing the graphics card by pushing down on the retention clip. The innovative ASUS Q-Latch makes it easy to install or remove an M. 2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap. ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation. The Pro WS Z890-ACE SE features one PCIe 5. 2 slots to enjoy the fastest data transfers of up to 128 Gbps. 2 slots support NVMe RAID configurations to take advantage of the latest available speeds. Optimized for 24/7 operation. the Pro WS Z890-ACE SE motherboard is tested to work at up to 45°C and 80% humidity. ensuring it can handle diverse operating environments. ECC сompatibility: Non-ECC. 1 Gen 2) Type-A ports quantity: 6. 2 Gen 2x2 Type-C ports quantity: 1. 2 highest PCI Express generation: 5. 2 highest PCI Express generation: 4. 2 highest PCI Express generation: 4. 2 highest PCI Express generation: 4.
