USB HUBS

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

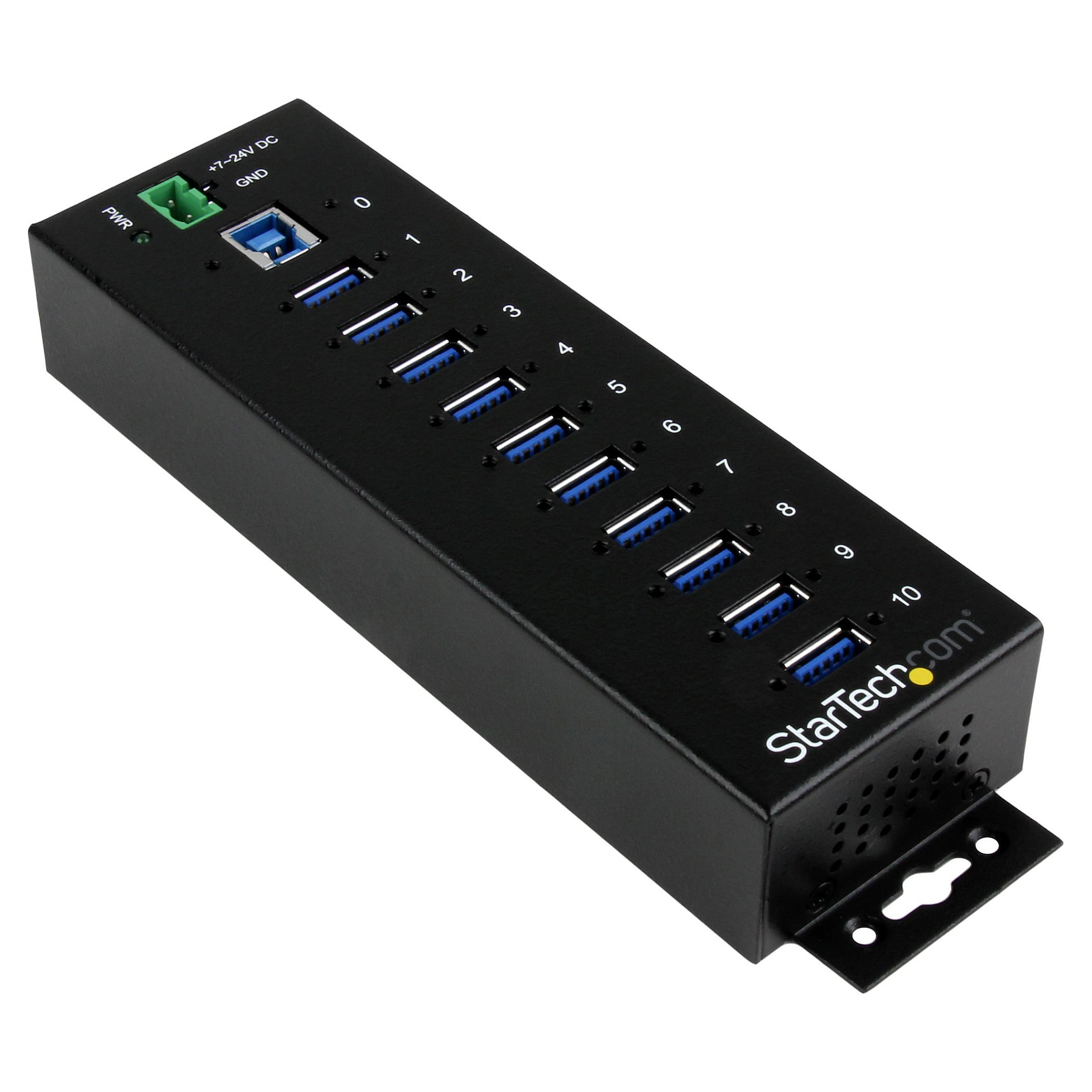

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

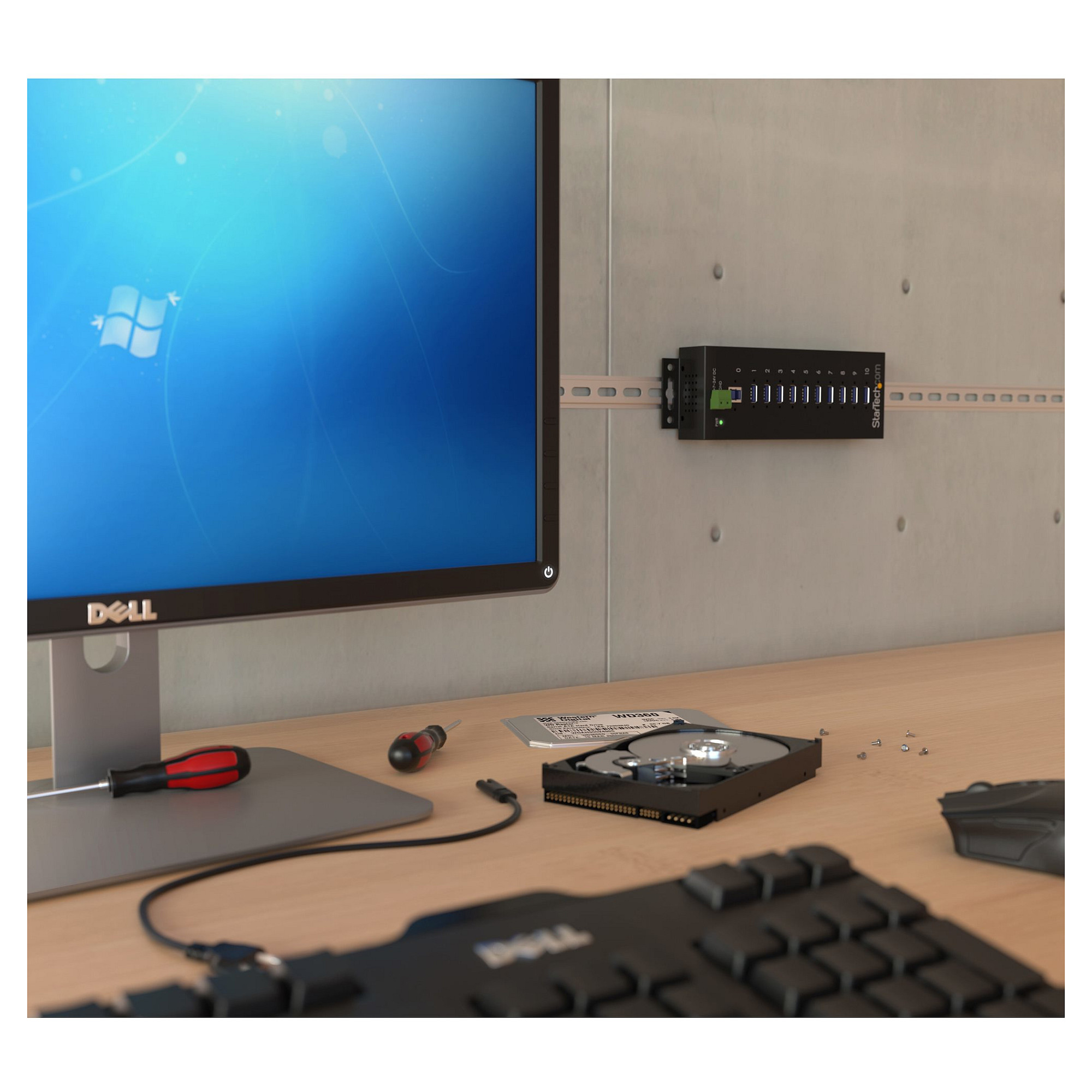

Locate the Hub Where You Need it Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works With Your Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 10
Ports quantity: 10
Card reader integrated: No
Terminal block port: Yes
Features
Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Steel
Surge protection: Yes
LED indicators: Power
Cable length: 2.032 m
Certification: RoHS, CE, FCC, TAA, REACH
Power
Input voltage: 7 - 24 V
Weight & dimensions
Width: 56 mm
Depth: 198 mm
Height: 31 mm
Weight: 357 g
Packaging data
Package width: 244 mm
Package depth: 169 mm
Package height: 57 mm
Package weight: 600 g

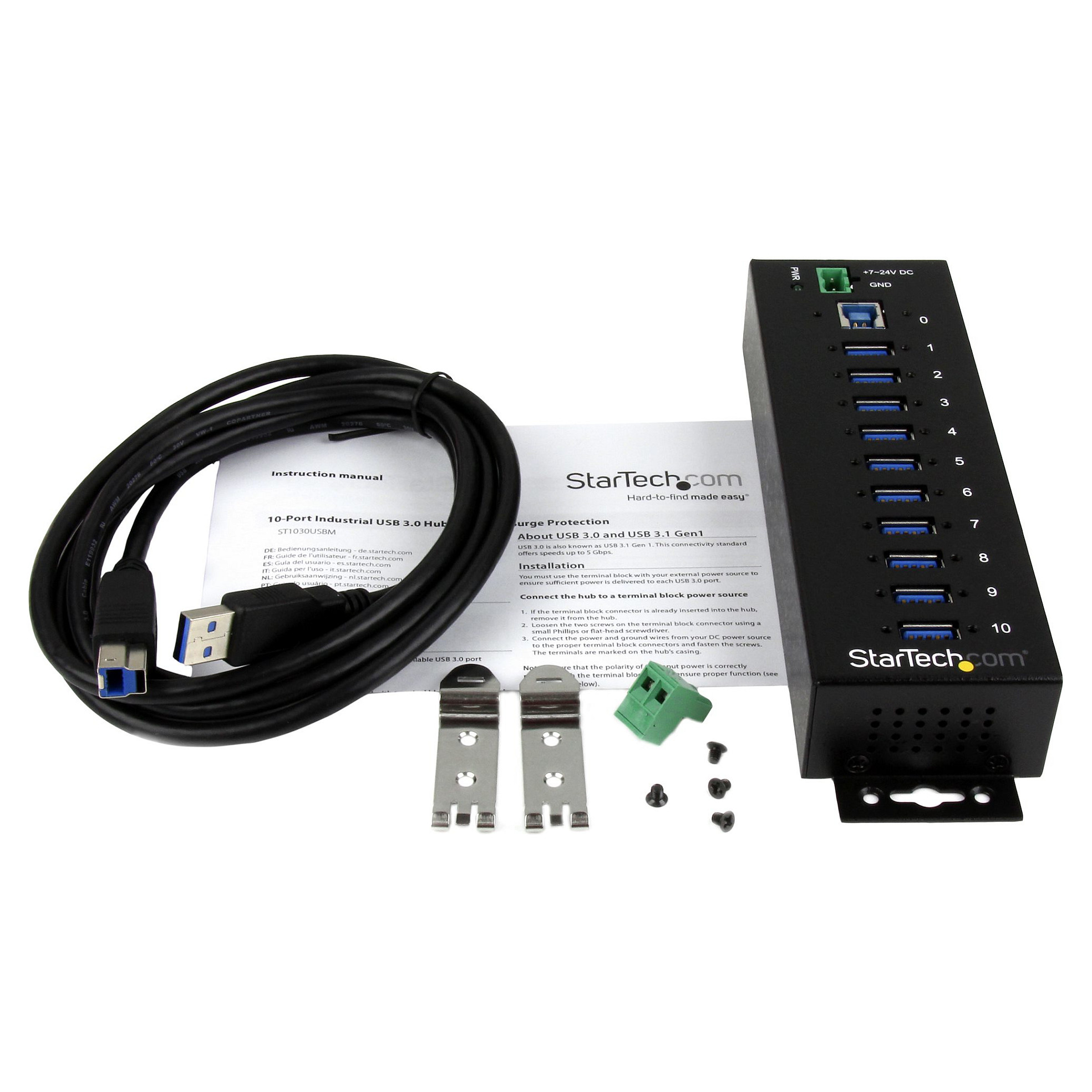

Packaging content
Cables included: USB
Manual: Yes
Terminal block included: Yes
DIN rail kit included: Yes
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Performance
Mean time between failures (MTBF): 119388 h
Logistics data
Master (outer) case width: 440 mm
Master (outer) case length: 530 mm
Master (outer) case height: 335 mm
Products per master (outer) case: 25 pc(s)
Harmonized System (HS) code: 84719000
Other features
Chipset: Genesys Logic - GL3520
