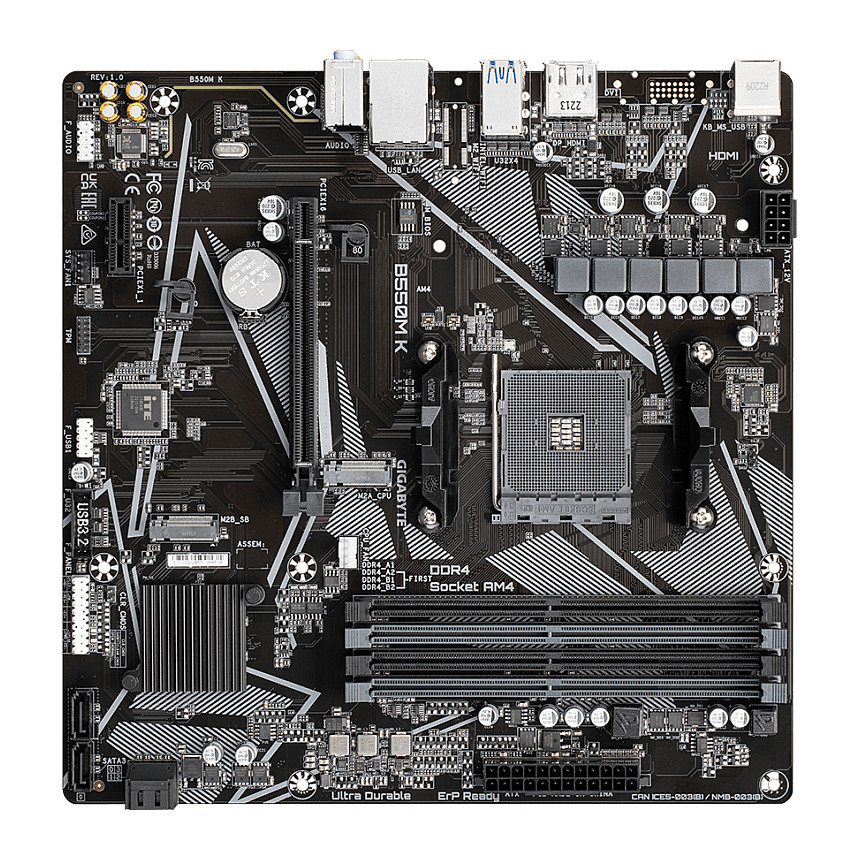

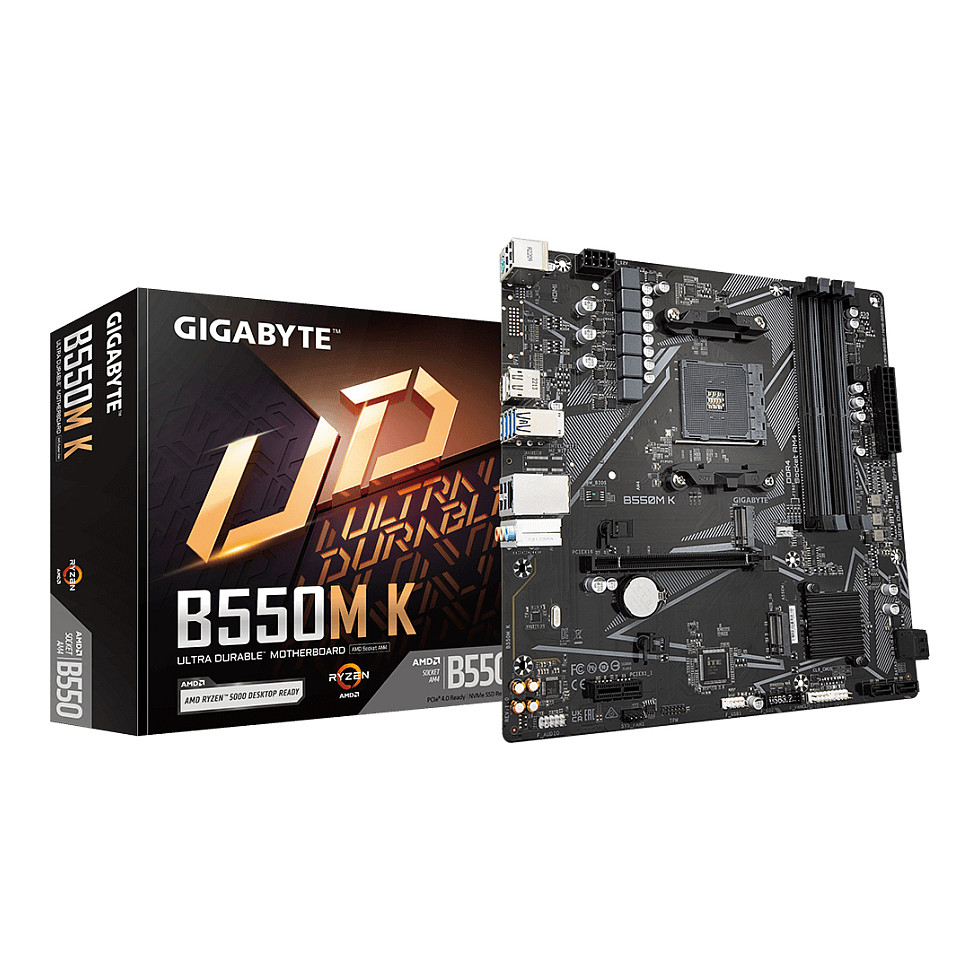

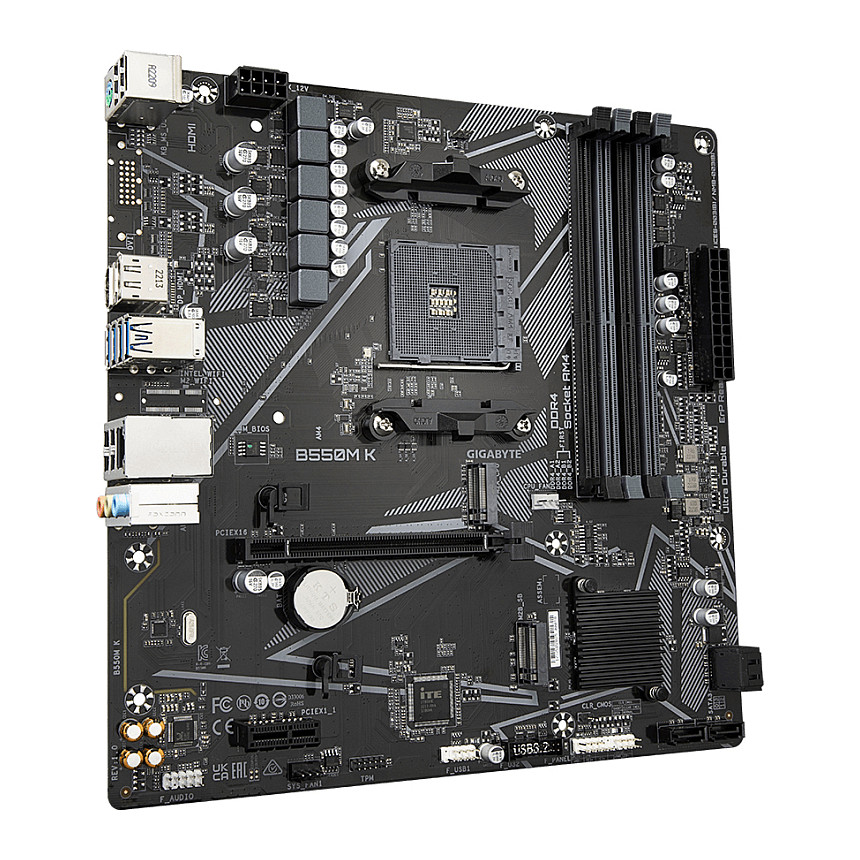

Gigabyte B550M-K AM4
Product code: 27303222 // MPN: B550M K // EAN: 4719331852764
New entry
€107,30 (inc. VAT)
Available from 3 to 6 business days (40 pcs available)
Similar product
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS. Featuring innovative designs and advanced features. these boards offer exceptional performance and reliability. our series cater to your needs. ensuring uncompromising quality and cutting-edge.
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
- Supported processor sockets: Socket AM4
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dodeca-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
- Supported memory clock speed (max): 4733 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 32 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA
- Number of HDDs supported: 2
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 5120 x 2880 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- 12V power connector: Yes
- USB 2.0 ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
- Motherboard chipset: AMD B550
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 3.0
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Package width: 265 mm
- Package depth: 265 mm
- Package height: 54 mm
- Package weight: 837 g
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
- Warranty period: 3 year(s)
| Color: | Brown |
| CPU Brand: | AMD |
| Ethernet LAN Ports: | 1 |
| Memory Slots: | 4 |
| Processor Socket: | Socket AM4 |
| Resolution: | 5K |
26.500x5.400x26.500
