RACK CABINETS

The 1U 1404 is the ideal case for a small and cheap server solution.

With its excellent quality and finish, Inter-Tech established the basis for a very variable case.

The 1U 1404 offers the possibility to install maximal four 2.5" or 3.5" Hot-Swap HDDs, one Slim DVD external and three internal 2.5" HDDs. The 1U 1404 has five 40mm fans included, which are mounted directly at the back of the drive brackets and ensure therefore a reliable and optimal cooling.

Additional extras like the reusable and perforated slot bracket, the universal ATX I/O plate and the lid with the snap lock round off the picture.

Design
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black, Stainless steel
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX, SSI EEB
Number of 3.5" bays: 4
Number of 5.25" bays: 1
Number of 2.5" bays: 7
Number of external 5.25" bays: 1
Side window: No
Built-in speaker(s): No
Reset button: Yes
On/off button: Yes
LED indicators: HDD, Network, Power
Maximum CPU cooler height: 3.2 cm
Maximum graphics card length: 34.5 cm
Power supply
Power supply included: No
Ports & interfaces
Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Storage
Supported HDD sizes: 2.5,3.5"
Hot-swap: Yes
Weight & dimensions
Width: 481 mm
Depth: 678 mm
Height: 44.5 mm
Weight: 7.94 kg
Material thickness: 1.2 mm
Packaging data
Package width: 560 mm
Package depth: 830 mm
Package height: 110 mm
Package weight: 10 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Ventilation fan(s): 5x 40mm
Size (imperial): 48.3 cm (19")

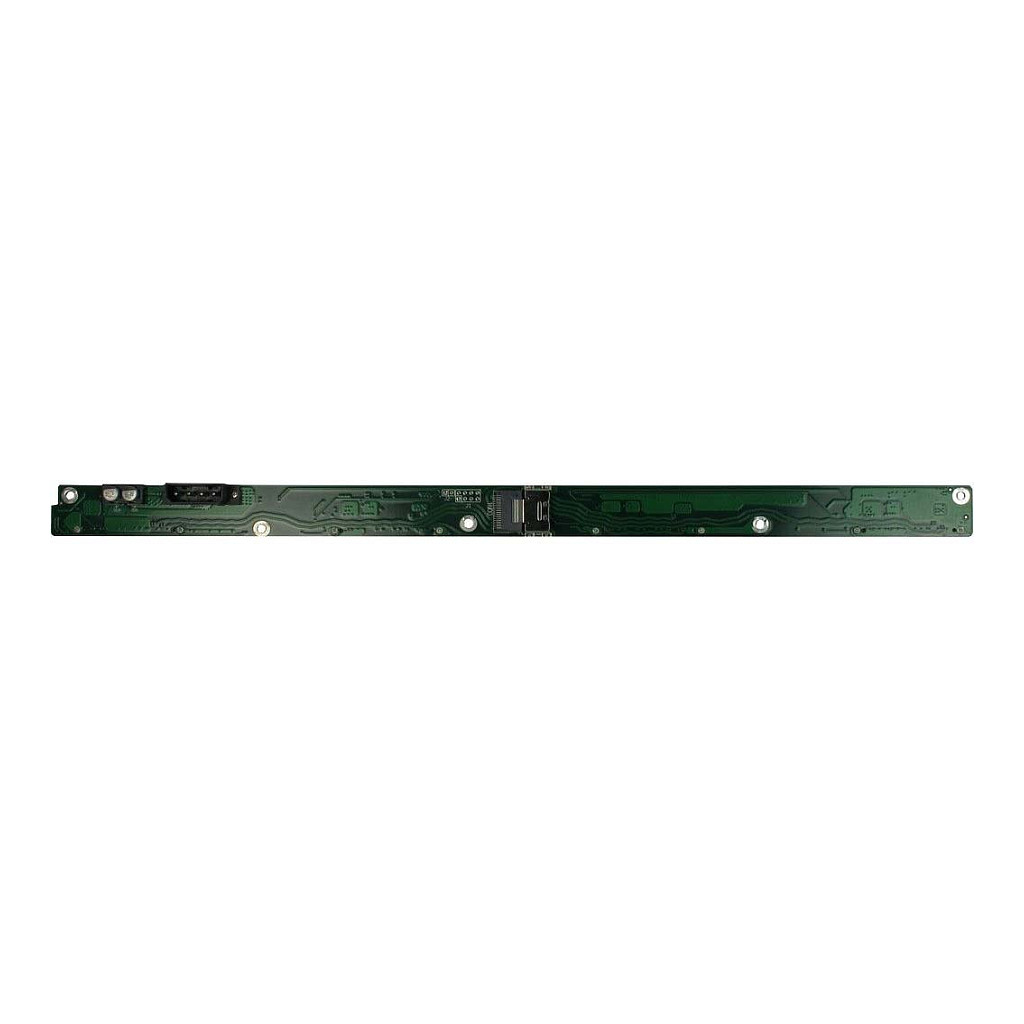

Backplanes support: Yes
