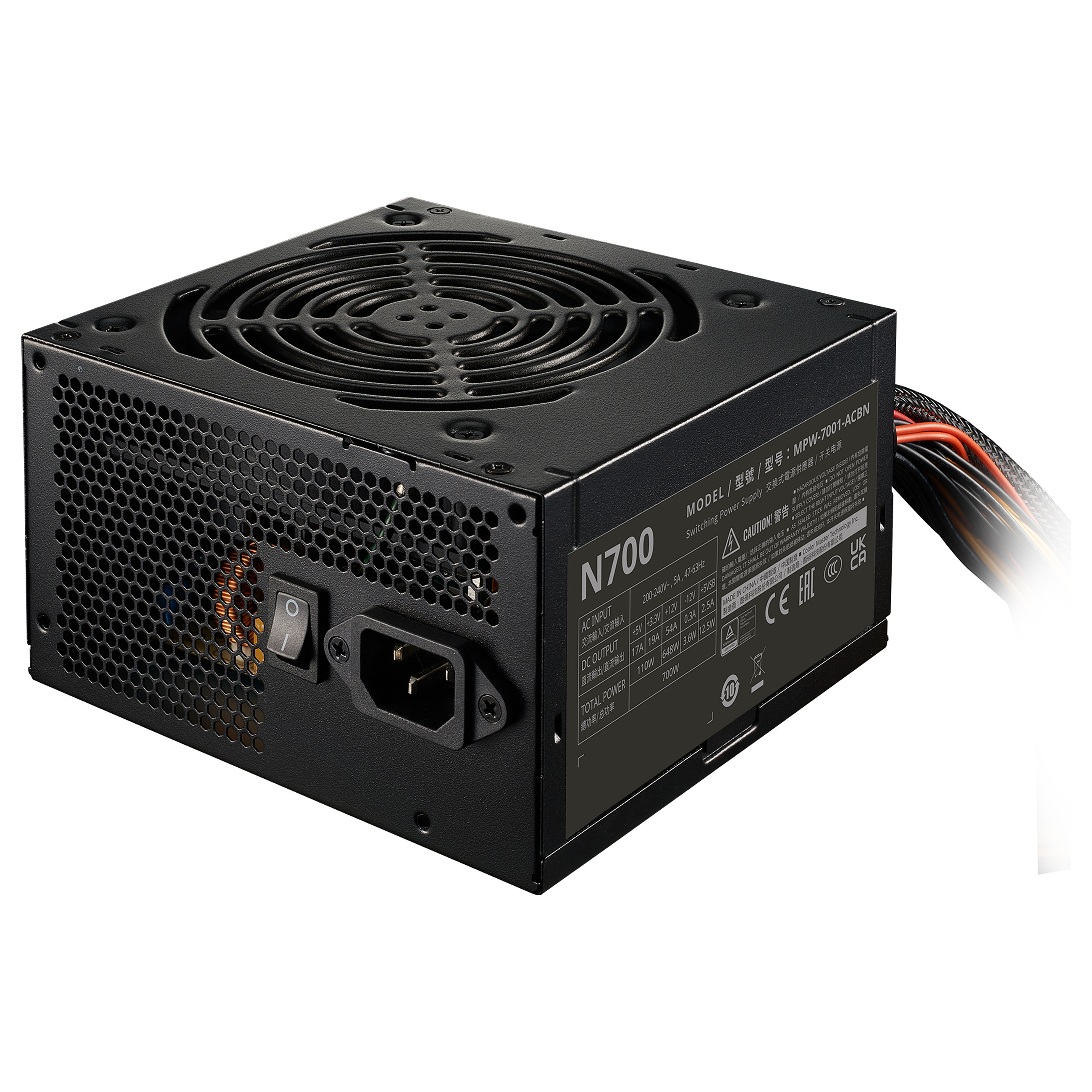

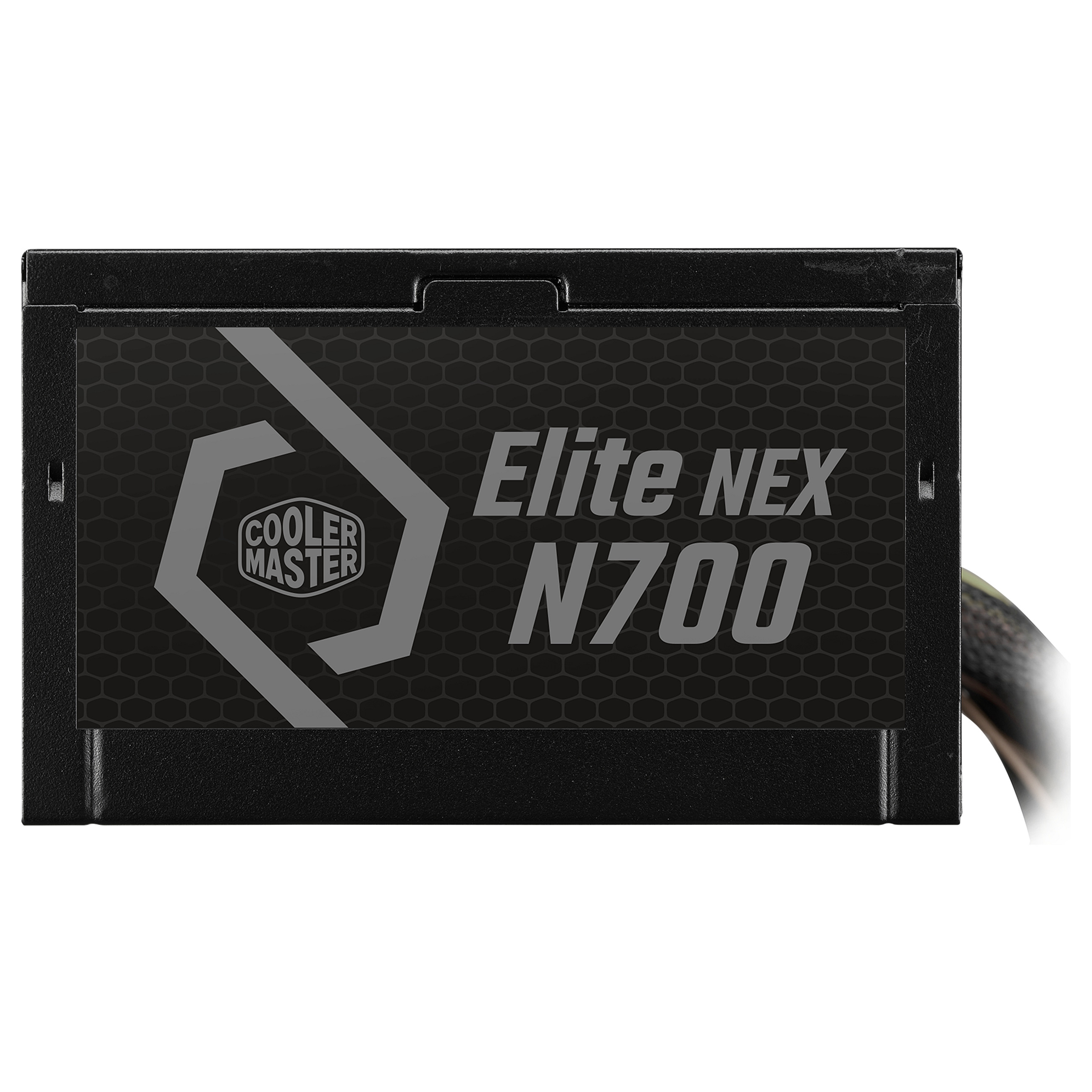

POWER SUPPLY (PSU)

• Total power: 700 W
• AC input voltage: 200 - 240 V
• AC input frequency: 47 - 63 Hz
• Input current: 5 A
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 110 W
• Combined power (+12V): 648 W
• Combined power (+5V): 110 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 12.5 W
• Max output current (+3.3V): 19 A
• Max output current (+12V): 54 A
• Max output current (+5V): 17 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 2.5 A
• Hold time: 10 ms
• Efficiency: 75%
• Power Good signal delay range: 100 - 500 ms
• Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage
• Motherboard power connector: 24-pin ATX
• Motherboard power cable length: 55 cm
• Number of SATA power connectors: 5
• SATA power cable length: 400,550,700 mm
• Peripheral (Molex) power cable length: 400,550,700 mm
• EPS power connector (8-pin): Yes
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• PCI Express power cable length: 62 cm
• Cabling type: Non-Modular
• 80 PLUS certification: No
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.41
• Bearing technology: Sleeve
• Mean time between failures (MTBF): 100000 h
• Product colour: Black
• Cooling type: Active
• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• Operating temperature (T-T): 0 - 40 °C
• Compliance certificates: CE, UKCA
• Certification: ErP 2014 Lot 3
• Width: 150 mm
• Depth: 140 mm
• Height: 86 mm
• Weight: 1.45 kg
• Package width: 190 mm
• Package depth: 245 mm
• Package height: 95 mm
• Package weight: 1.82 kg
• Sustainability compliance: Yes
• Master (outer) cases per pallet: 64 pc(s)
• Master (outer) case width: 260 mm
• Master (outer) case length: 503 mm
• Master (outer) case height: 220 mm
• Products per master (outer) case: 5 pc(s)
• EPS cable length: 67 cm
