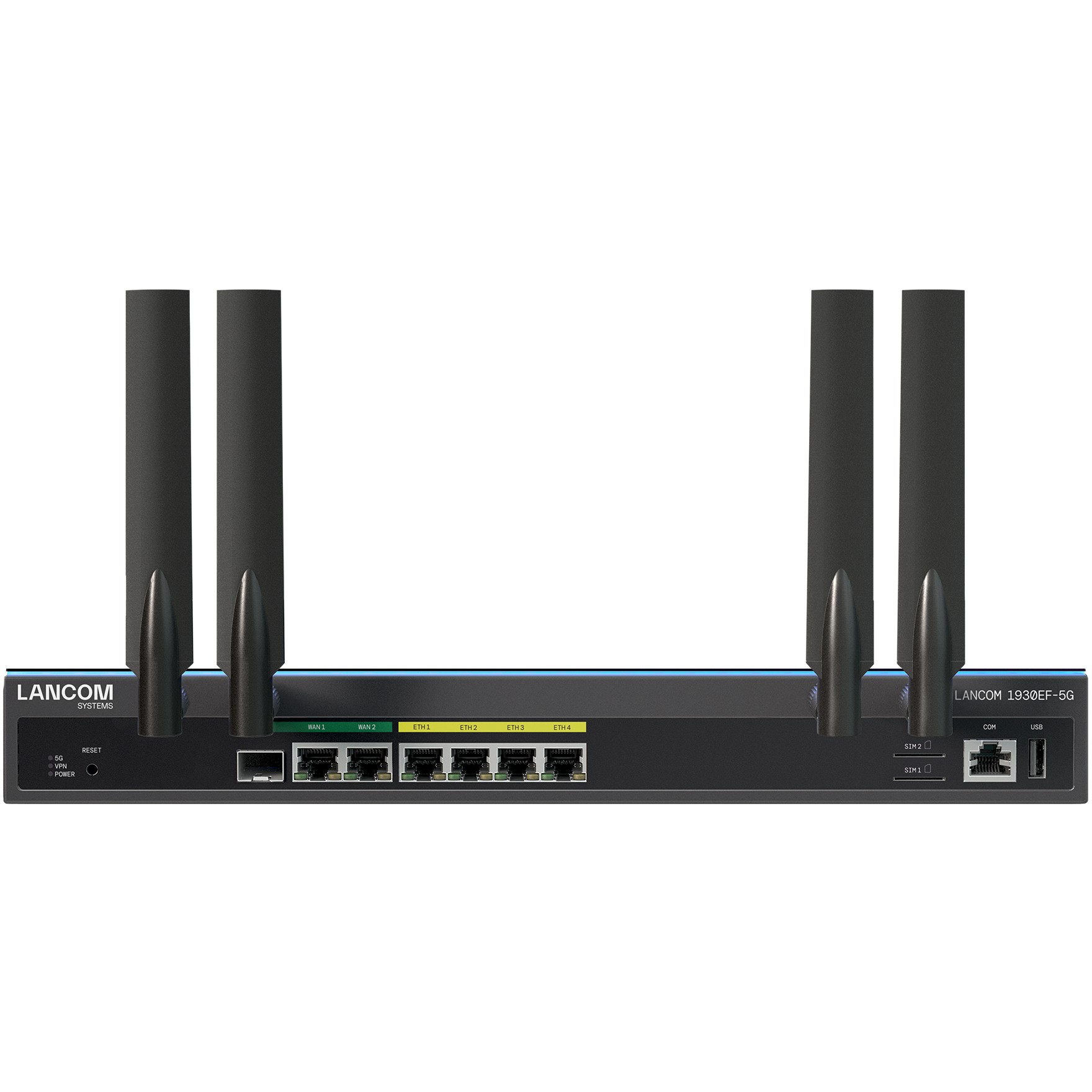

1930EF-5G (EU)

Product code: 11631622 // MPN: 62145 // EAN: 4044144621451

€3.226,50 (inc. VAT)

Available from 4 to 10 days (1 pcs available)

Add to wishlist

ASUS ZenWiFi AX Hybrid XP4 WLAN Mesh System 1er Pack Weiß [WiFi 6 (802.11ax). Dual-Band. bis zu 1.800 Mbit/s]

Code: 21668522

€112,95

Available from 4 to 10 days

Device Type	Router - 4-port switch (integrated)
Enclosure Type	Rack-mountable - 1U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	IPSec VPN connections: 25 Virtual interfaces (VLANs): 25 VLAN IDs: 4096 Local subscribers: 10 Simultaneous VoIP connections: 100
Network / Transport Protocol	TCP, UDP, L2TPv3, ARP, DHCPv6, LDRA, BOOTP, DHCP, PPPoE, TFTP, Bonjour
Routing Protocol	RIP-2, BGP-4, OSPFv2, LISP, BGP, VRRP
Remote Management Protocol	SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, SSH, Telnet, ICMP, IPv6, OAM, IPv4, DNS, NTP, Syslog, SLAAC
Encryption Algorithm	IKEv2, 3DES, AES-CBC, AES-GCM, RSA, ECDSA, Chacha20-Poly 1305, IKE, 1024-bit RSA, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, 3DES-168, 4096-bit RSA, ECDSA 256-bit, ECDSA 384-bit, MD5, SHA-1, SHA-256, SHA-384, SHA-512
Authentication Method	PAP, CHAP, MS-CHAP, MS-CHAP v.2, RADIUS, RADSEC, TACACS+, XAUTH authentication, X.509 certificates
Features	SD-WAN support, auto-VPN, multi-WAN load balancing, Zero-Touch Deployment, load balancing, IGMP snooping, MLD snooping, EoGRE, ARP lookup, LLDP support, DHCP Option 82, RSTP support, LACP support, QoS, IPS, IP spoofing, DoS protection, ping detect, Stealth Mode, URL blocker, password protection, programmable reset button, SNTP support, DNS client, MLD proxy, IGMP proxy, VRRP support, line monitoring, IPSec over HTTPS, integrated hardware accelerator, realtime clock, random number generator, 1-click-VPN Client assistant, 1-click-VPN site-to-site, certificate revocation lists (CRL), OCSP support, VPN passthrough, DTMF support, 4x4 MIMO technology, metal housing, 1 fan, reset button
Compliant Standards	IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, ITU-T Q.1912.5
Status Indicators	5G, VPN, power
Communications	Communications
Type	Wireless cellular modem
Digital Signaling Protocol	VDSL, ADSL, ADSL2, ADSL2+
Mobile Communication Protocol	5G, LTE, HSPA, UMTS
Generation	5G, 4G, 3G
Cellular Band	5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B66, LTE B71, HSPA B1, HSPA B2, HSPA B4, HSPA B5, HSPA B8, HSPA B19
IP Telephony	IP Telephony
VoIP Protocols	SIP, SIPS, SRTP, RTP, SIP ALG
Voice Codecs	iLBC, G.711, G.722, G.723, G.726, G.729, Opus, AAC
Expansion / Connectivity	Expansion / Connectivity
Interfaces	LAN: 4 x 10Base-T/100Base-TX/1000Base-T WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T USB 2.0: 1 x 4 pin USB Type A Serial: 1 x RJ-45
Expansion Slots	2 Mini-SIM 1 SFP/TP combo
Aerial	Aerial
Aerial	External detachable
Antenna Qty	4
Gain Level	2 dBi
Power	Power
Power Device	Internal power supply
Voltage Required	AC 110-230 V (50 - 60 Hz)
Power Consumption Operational	27 Watt
Miscellaneous	Miscellaneous
Included Accessories	4 x 2 dBi cellular aerials
Cables Included	1 x network cable - 3 m Power cable (EU)
Localisation	Europe
Dimensions & Weight	Dimensions & Weight
Width	34.5 cm
Depth	25.3 cm
Height	4.4 cm
Weight	2.5 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 95% (non-condensing)
Compatibility Information	Compatibility Information
Designed For	P/N: 60183, 60184, 60185, 60186, 60199, 60200, 60201, 60207, 61234, 61494, 61556, 61557, 61601, 61602, 61606, 61607, 61650, 61651, 61652, 61653, 61901, 62225
