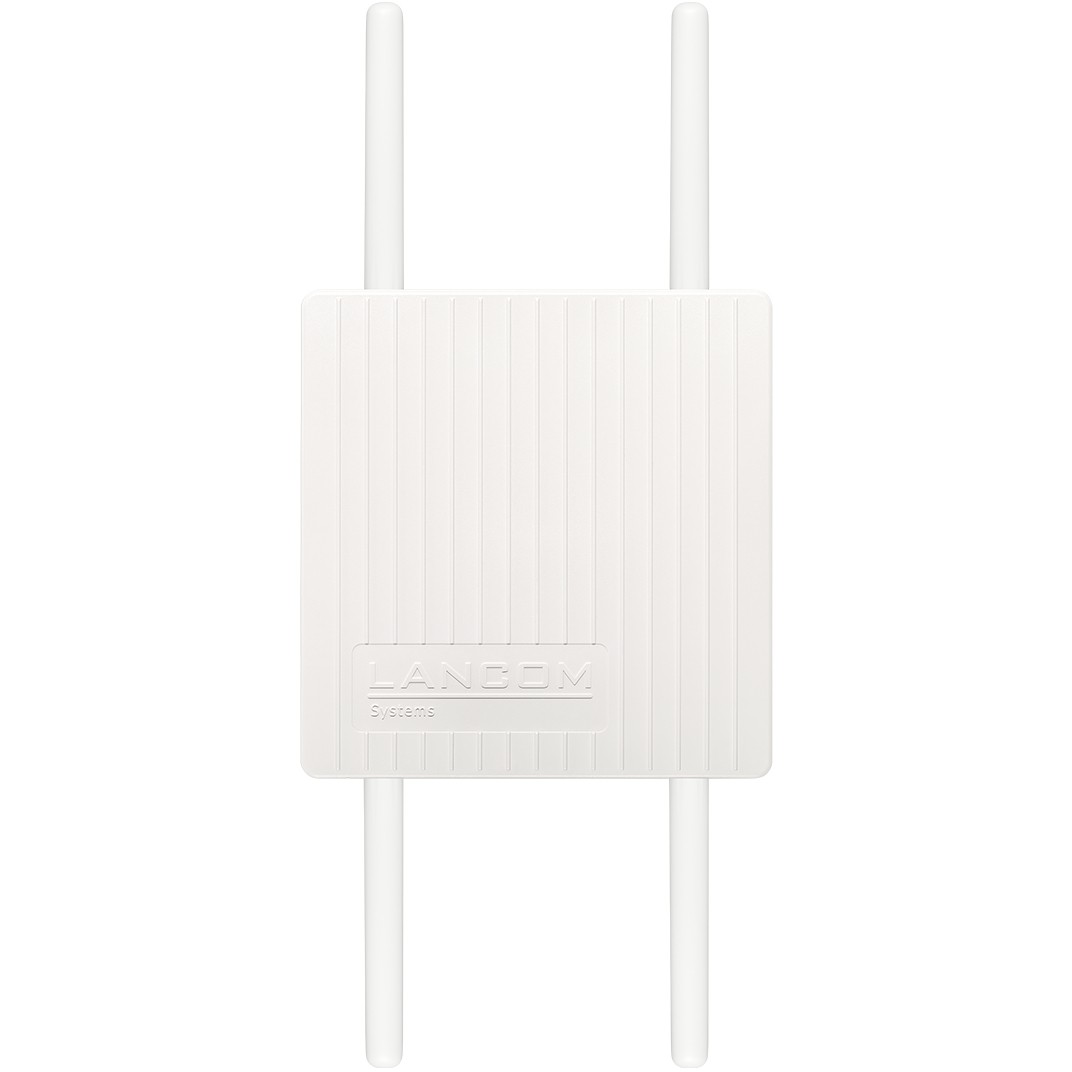

OAP-5G (EU)

Product code: 11632022 // MPN: 61911 // EAN: 4044144619113

€2.528,40 (inc. VAT)

Available from 4 to 10 days (1 pcs available)

Add to wishlist

Cradlepoint L950 Series L950-C7B - Router - WWAN 1GbE - 3G. 4G - mit 3 Jahre NetCloud Branch LTE Adapter Essentials Plan und Advanced Plan

Code: 22545222

€1.466,00

Available from 4 to 10 days

Device Type	Gateway
Width	25.5 cm
Depth	9 cm
Height	25 cm
Networking	Networking
Form Factor	Wall / pole mountable
Connectivity Technology	Wired
Data Link Protocol	Gigabit Ethernet, Fast Ethernet, Ethernet
Network / Transport Protocol	ARP, BOOTP, DHCP, IPv4, IPv6, DNS, HTTP, HTTPs, PPPoE, RTP, IGMPv3, PPTP, L2TPv2, L2TPv3, IPoE, IPSec, NTP
Routing Protocol	MLD, IGMP, RIP-2, MLDv2, VRRPv3, GRE, RIP-1, VRRP
Remote Management Protocol	ICMP, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, TFTP, Syslog, MLD, Bonjour, SLAAC, SMTP
Cloud-Managed	Yes
Capacity	VLAN IDs: 4096
Features	VLAN support, IGMP snooping, MLD snooping, ARP lookup, LLDP support, proxy ARP, firewall protection, Quality of Service (QoS), Intrusion Prevention System (IPS), Access Control List (ACL) support, Denial of Service (DoS) protection, IP spoofing, password protection, ping detect, programmable reset button, Stealth Mode, URL blocker, IPv4 and IPv6 dual stack, Advanced Routing and Forwarding (ARF), SD-WAN support, Zero-Touch Deployment, SNTP support, PPPoE server, Neighbor Discovery Protocol (NDP), Stateless Address Autoconfiguration (SLAAC), Network Prefix Translation (NPT) 6, Ethernet over GRE-Tunnel (EoGRE), E-mail alert, SNMP traps, Point-to-Point Protocol (PPP), FirmSafe, load balancing, VPN redundancy, line monitoring, IPSec over HTTPS, VPN support, random number generator, realtime clock, built-in hardware crypto accelerator, Simple Certificate Enrollment Protocol (SCEP), certificate revocation lists (CRL), OCSP support, IPSec NAT-Traversal (NAT-T), 2-factor authentication, metal housing
Encryption Algorithm	3DES-168, IKE, IKEv2, 1024-bit RSA, 128-bit AES-CBC, 128-bit AES-GCM, 192-bit AES-CBC, 192-bit AES-GCM, 2048-bit RSA, 256-bit AES-CBC, 256-bit AES-GCM, 3072-bit RSA, 4096-bit RSA, Chacha20-Poly 1305, ECDSA 256-bit, ECDSA 384-bit, ECDSA 512-bit, FIPS 140, MD5, SHA-1, SHA-256, SHA-384, SHA-512
Authentication Method	PAP, CHAP, MS-CHAP v.2, MS-CHAP, RADIUS, RADSEC, TACACS+, X.509 certificates, XAUTH authentication
Compliant Standards	IEEE 802.1Q, IEEE 802.3at, IEEE 802.3az
IP Telephony	IP Telephony
VoIP Protocols	SIP ALG
Aerial	Aerial
Antenna	External detachable
Antenna Qty	4
Gain Level	2 dBi
Communications	Communications
Mobile Broadband Access	Yes
Generation	5G
Mobile Communication Protocol	LTE, UMTS, HSPA, 5G
Mobile Band	5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66/B71
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	Mini SIM card
Interfaces	1 x 1000Base-T (PoE) - RJ-45 1 x 1000Base-T - RJ-45 4 x aerial - N connector
Miscellaneous	Miscellaneous
Included Accessories	Mounting kit
Cables Included	1 x network cable - 3 m
Power	Power
Power Over Ethernet (PoE) Supported	PoE
Voltage Required	AC 230V
Software / System Requirements	Software / System Requirements
OS Provided	LCOS 10.90
Software Included	LANconfig, LANmonitor, WLANmonitor
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	70 °C
Humidity Range Operating	0 - 95% (non-condensing)
