POWER SUPPLY (PSU)

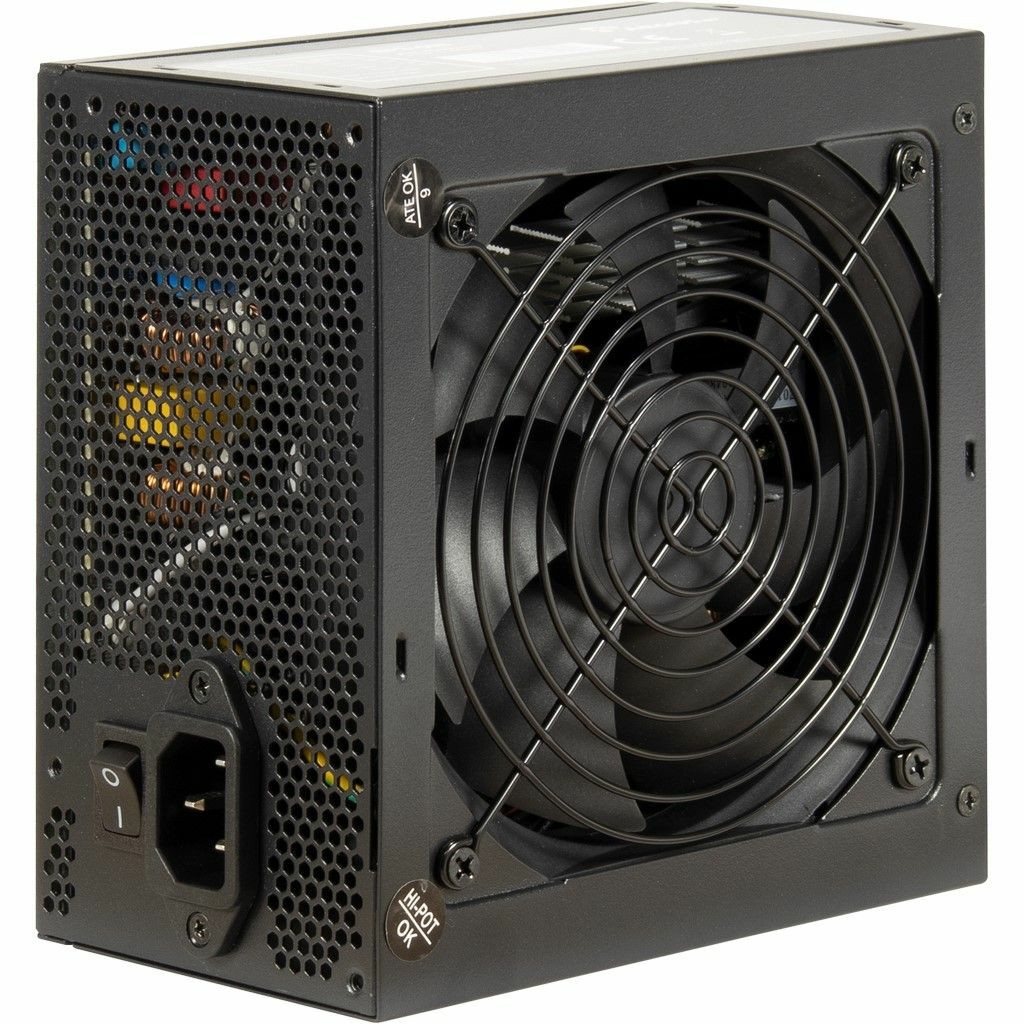

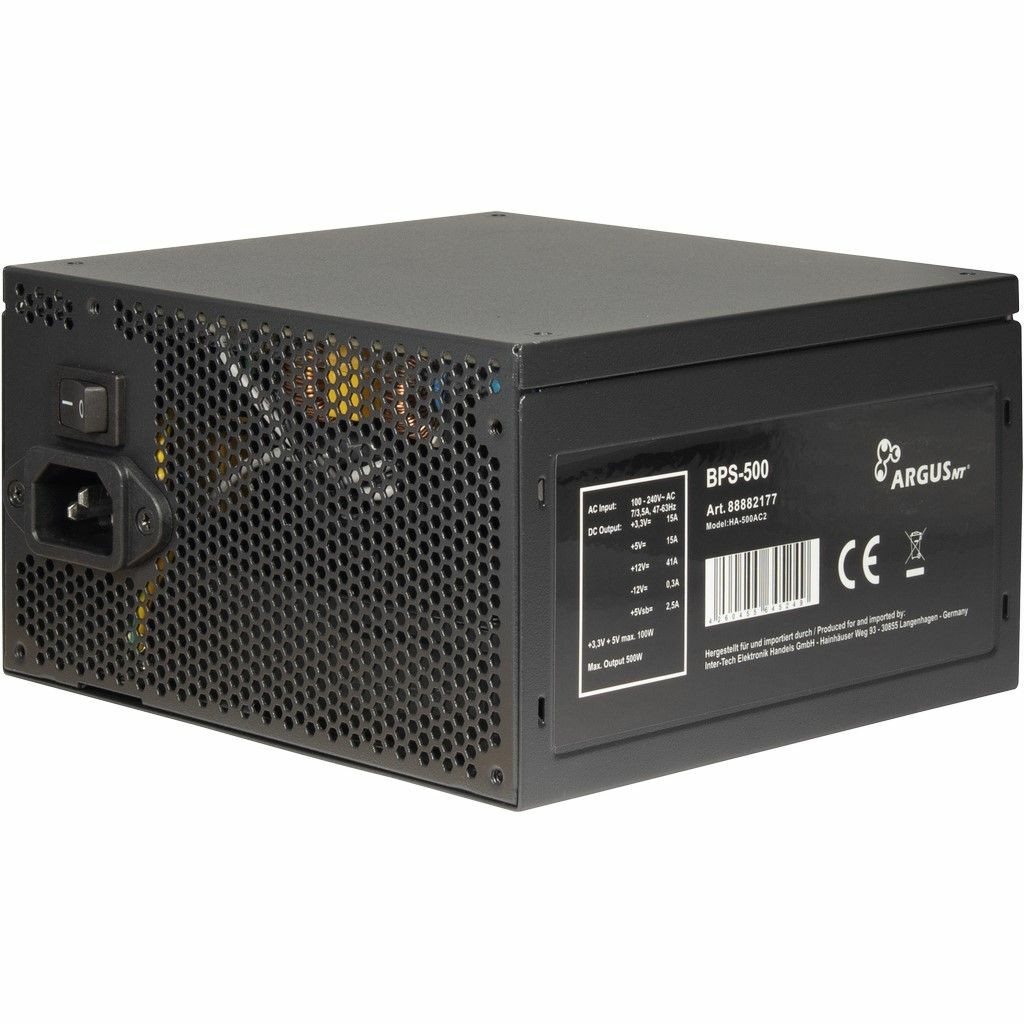

The BPS series from Argus stands for powerful and reliable power supplies in the levels of 500W. To upgrade existing systems or to configure new ones. thanks to 80PLUS® Bronze 230V EU certification and state-of-the-art components. the BPS series will keep you up to date. To secure the built-in hardware and the power supply unit itself. we have not made any compromises and have equipped the power supply units of the BPS series with a total of five protective circuits (OPP. When it comes to the variety of connections. we also kept an eye on the greatest possible efficiency and. with the exception of the 20+4pin connection. designed all other cable strands as flat ribbon versions - saving space and time when laying. The BPS-500 has two PCIe 6+2pin and six S-ATA connections available. there is more than enough power available for potent hardware. The overall package is rounded off by the smooth-running 120mm fan and the 36-month manufacturer's guarantee for the entire BPS series. Combined power (+12V): 420 W. Combined power (+5V): 100 W. Combined power (+5Vsb): 12. Max output current (+12V): 41 A. Max output current (+5V): 15 A. Max output current (+5Vsb): 2. Peripheral (Molex) power connectors (4-pin): 3. PCI Express power connectors (6+2 pin): 2. CPU power connector (4+4 pin): Yes. ATX power connector (20+4 pin): Yes. 80 PLUS certification: 80 PLUS.
