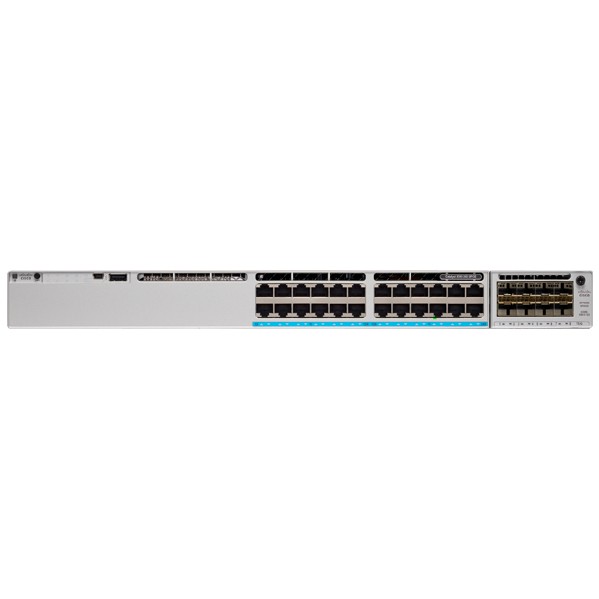

Cisco CATALYST 9300L 24P POE NETWORK

Product code: 17479322 // MPN: C9300L-24P-4G-E // EAN: 0889728174565

€5.615,05 (inc. VAT)

Available from 4 to 10 days (28 pcs available)

Add to wishlist

8+2P TP-Link Omada SG3210 M RM

Code: 12942322

€149,60

Available from 4 to 10 days

Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	505 W
Performance	Switching capacity: 56 Gbps Â¦ Stacking bandwidth: 320 Gbps Â¦ Switching capacity with stacking: 376 Gbps Â¦ Forwarding rate: 41.66 Mpps Â¦ Forwarding rate with stacking: 279.76 Mpps
Capacity	IPv4 routes: 32000 Â¦ IPv6 routes: 16000 Â¦ Multicast scale: 8000 Â¦ QoS scale entries: 5120 Â¦ ACL scale entries: 5120 Â¦ VLANs supported: 4094 Â¦ FNF entries: 64000 Â¦ Switched virtual interfaces (SVIs): 1000 Â¦ Packet buffer size: 16 MB Â¦ Virtual networks: 64
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Encryption Algorithm	128-bit AES, 256-bit AES
Features	Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
RAM	8 GB
Flash Memory	16 GB
Built-in Devices	RFID tag
Status Indicators	Status
Expansion / Connectivity	Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE+ Â¦ 4 x 1000Base-X SFP uplink Â¦ 1 x network stack device Â¦ 1 x management (LAN) RJ-45 Â¦ 1 x console Â¦ 1 x USB 2.0
Power	Power
Power Device	Internal power supply - hot-plug
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
Miscellaneous	Miscellaneous
MTBF	346,940 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04
Dimensions & Weight	Dimensions & Weight
Width	44.5 cm
Depth	4.4 cm
Height	40.9 cm
Weight	6.81 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Â¦ Technical support - consulting - 90 days
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-5 Â°C
Max Operating Temperature	45 Â°C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	70 Â°C
Humidity Range Storage	5 - 90% (non-condensing)
