HDL Panel SOURCE 10 Touch Screen Dark Purple

Product code: 19849020 // MPN: MGWSIPD10-LK.18 // EAN: 29019

HDL Automation HDL Panel Source 10 Touch Screen Dark - Purple

€692,05 (inc. VAT)

Available from 1 to 3 days

⚠️Large or sensitive products (e.g. monitors) may require additional delivery time. We will keep you updated on your order status. Terms & Conditions

Add to wishlist

HDL KNX IP Router

Code: 20522520

€580,15

Available from 1 to 3 days

Supporting multiple Source intelligent central control at the same time. master-slave gateway function. Knob control with rotary use. Once the sensor detects near human motion. the touch screen automatically wakes up. Physical buttons for turning off or enabling the microphone and the display with one touch. This device must be used with the base. which can be optional with three power interfaces.

Power consumption : ≤15W

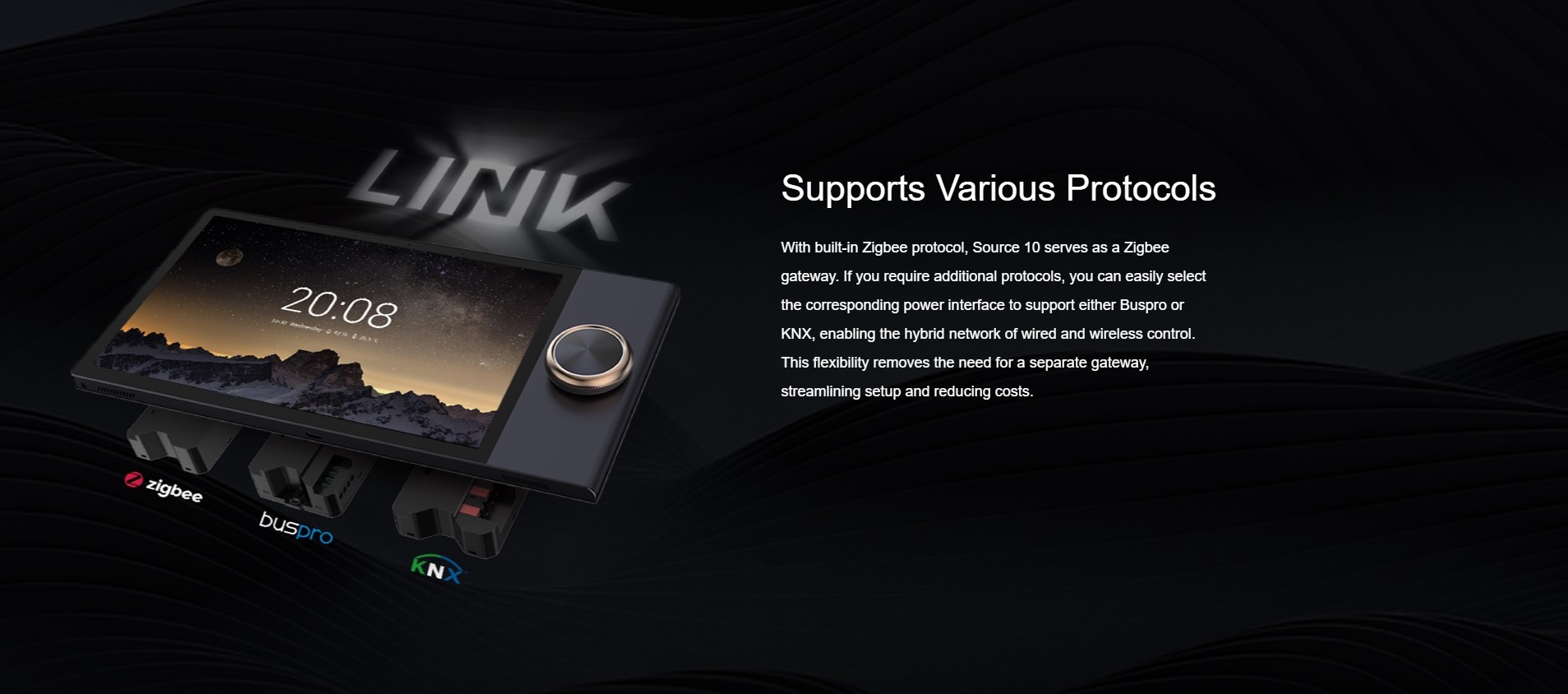

Input voltage : Zigbee interface: 100 ~ 240V AC, 50/60Hz; Buspro interface: 18 -
28V DC; KNX interface: 21 - 30V DC
KNX auxilary voltage : 18 - 28V DC
Output channel : Zigbee / Buspro / KNX interface：2CH，3A/CH; Resistive load:
≤660W/CH; Capacitive load: ≤200W/CH
Communication protocol : HDL LINK, WiFi 2.4G
Main chip : RK3566
Storage capacity : 2+16GB
Operating frenquency : 2.4GHz, 5GHz
Indoor communication distance (barrierfree) : ≤50m
Operating system : Android 11
Ethernet interface : RJ45

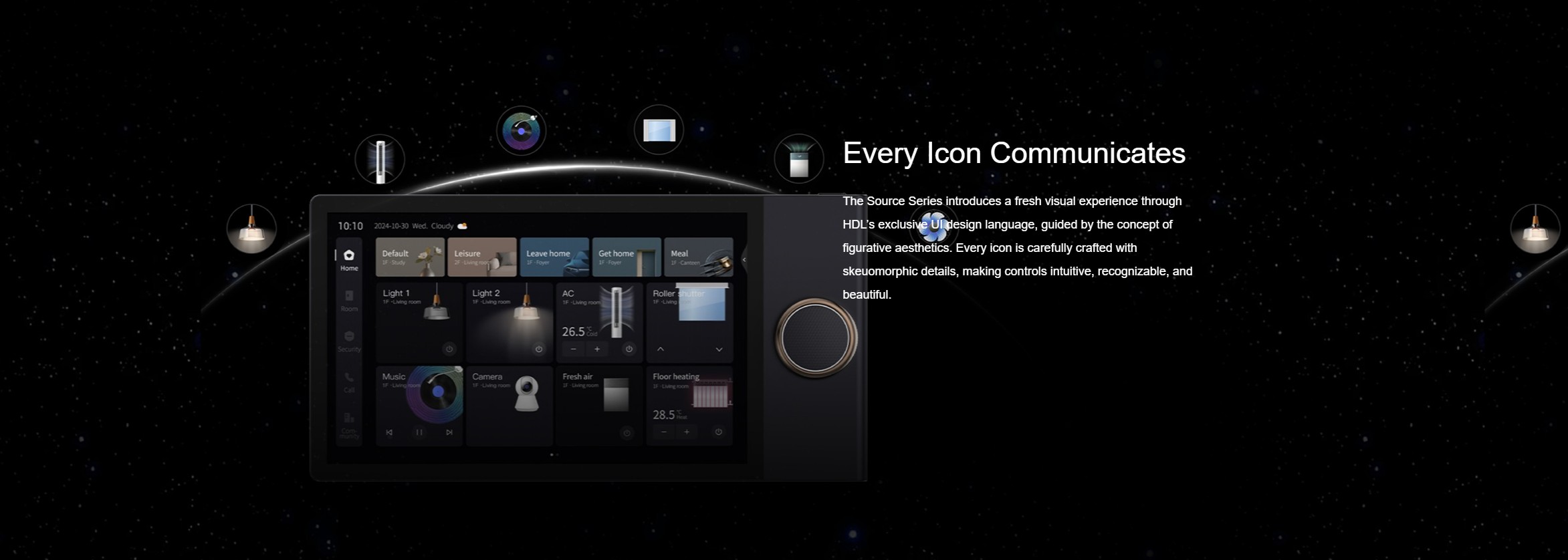

Touch screen : 10-inch capacitive touchscreen, resolution: 1200*2000, with multitouch technology

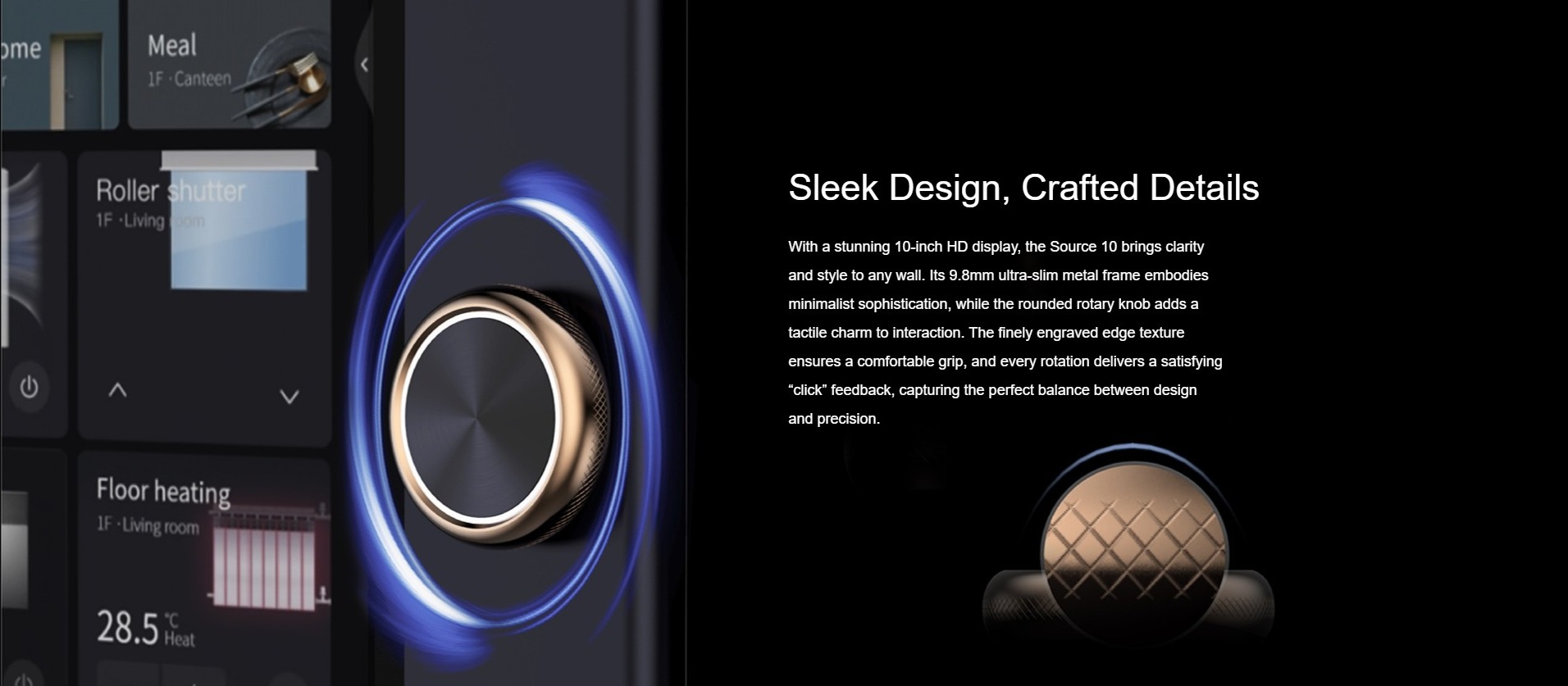

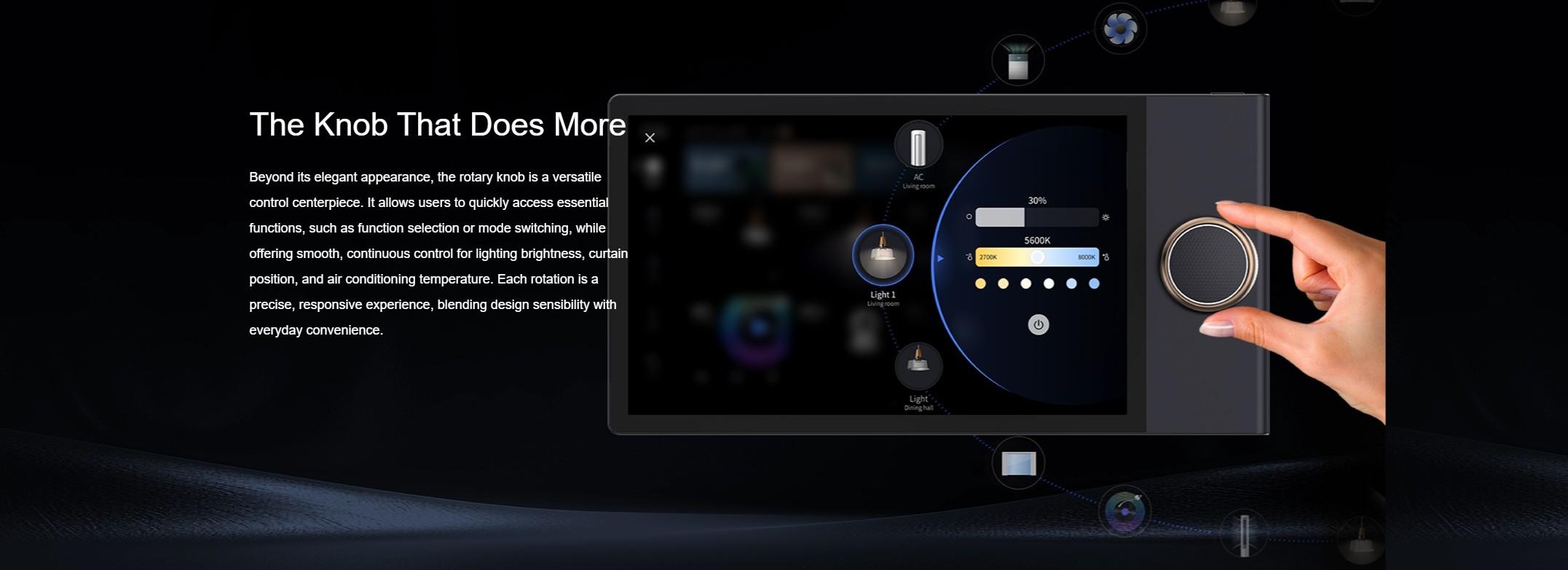

Knob : 30 levels of feedback for rotating, clicking and long-pressing;
Turning the knob to adjust the light, curtains, volume, temperature,
wind speed, etc.;
Knob light : RGB light beads
Microphone : 4 microphones
Speaker : 1W*2
Proximity sensor : A maximum sensing distance of 100cm, default: 50cm (can be
modified in the settings page)
Light Sensor : Automatically adjusts screen brightness according to light level
Temperature & humidity sensor : Monitor the temperature and humidity of the environment
MIC button : Enable/disable microphone
Power button : Short press to close the display, long press to restart the device
Type-C interface : For upgrading or temporarily powering panels
Working temperature : -5℃ ~ 45℃
Working relative humidity : ≤90%RH, non-condensed
Storage temperature : -20℃ ~ 60℃
Storage relative humidity : ≤93%RH
Dimensions (W X H X D) : 301.3*155.2*9.8mm（Without power interface, see Figure 4）
Net weight Source 10 : (With bracket，without power interface：1000g)
Housing material Source 10 ：Metal； Zigbee/Buspro/KNX interface：PC
Installation : Wall box （up to 2 power interfaces installed）
IP degree (compliant with EN 60529) : IP20
