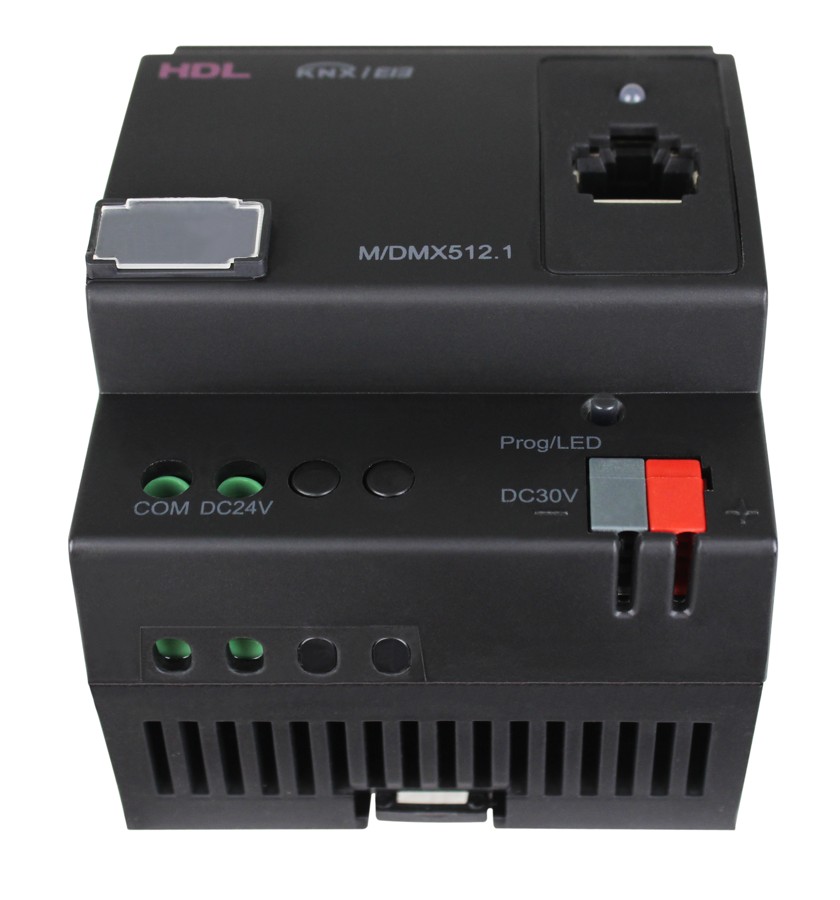

HDL DMX Recorder Module

Product code: 20520220 // MPN: M/DMX512.1

€383,04 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

HDL Actuator 16CH 10A High Power Switch

Code: 20520920

€292,80

Available from 1 to 3 days

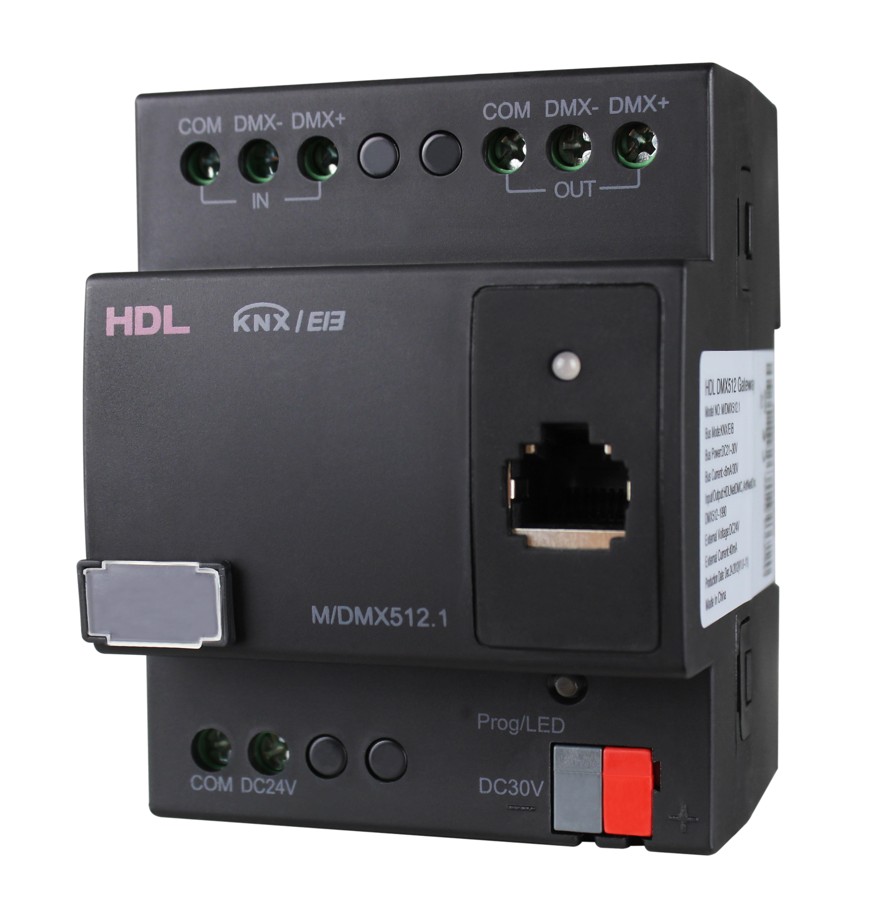

DMX512 Gateway belongs to HDL KNX/EIB series. The gateway supports two-way control, and can record, play and delete DMX programs. With recording time up to 4 hours, DMX512 Gateway can be widely used to control devices with built-in DMX protocol port for LED color control, for example, computer light, moving head light, laser light, etc.

3 working modes: DMX recorder mode, DMX dimming mode ( EIB to DMX) and DMX to EIB conversion mode (1bit, 1byte data point) .
Supported communication signal: DMX512-1990, ArtNet DMX, HDL NET DMX.
Store and playback up to 24 programs, with up to 4 hours recording time.
DMX dimming mode supports switching or dimming for up to 48 channels (controlling DMX device via KNX system available).
DMX to EIB conversion mode supports switching or absolute dimming for up to 48 channels (controlling KNX system via DMX signal available).
DMX output signal can be used to control devices with DMX protocol port for LED color control, for example, moving head light, laser light, etc.
DMX input control functions include: Sequence control, Scene control, Switch control, Relative dimming, Absolute dimming.
