BINTHEN KNX Motorized Curtain Kit with 5.2 Meter Track AC220V BCM400D
Product code: 20522020 // MPN: BCM400D-KNX

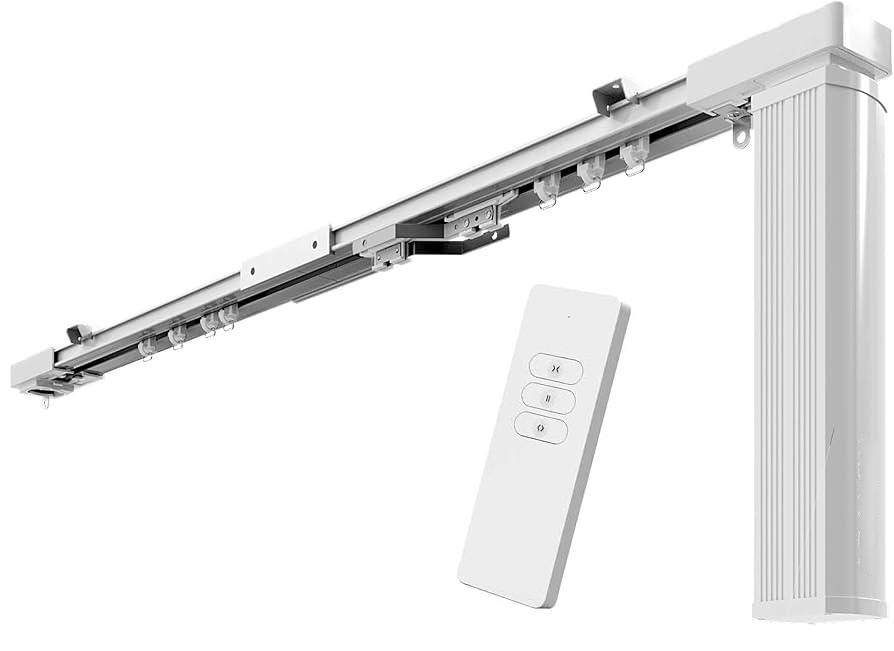

Binthen KNX Motorized Curtain Kit with 5.2 Meter Track AC220V BCM400D
€236,61 (inc. VAT)
Available from 1 to 3 days
Similar product
Built with KNX interface. connect to KNX system directly. Support status feedback and percentage control. Support direction shifting. Support manual open/close even power off. Noiseless design and smooth running. Patented adjustable motorized curtain track from 2. High quality and finishing aluminium motorized track.
- Input voltage: AC100V-240V 50/60HZ
- KNX Bus voltage: DC 21V~31V
- KNX Bus current: < 10mA
- Motor Torque: 1.2Nm
- Motor Power: 40W
- Motor Load: 50kg Maximum
- Protection: IP20, CLASS F
- Motor dimension: 5*5*27cm
- 2.2m to 5.2m Kit dimension: 105*23*8cm
- 6.2m to 8.2m Kit dimension: 105*30*8cm
- Remote Battery: 2*1.5V AAA type
- Transmit Frequency: 433.92MHz
- Transmit Power: ≤10mW
| All in one: | |
| Gaming: | |
| IP Rating: | IP20, CLASS F |
ADD YOUR REVIEW
Ask a question about the product
