HDL Link KNX Gateway Server M/GWASC.1
Product code: 20523020 // MPN: M/GWASC.1

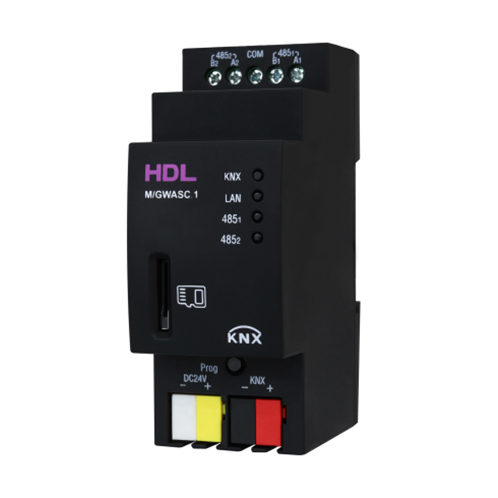

HDL Automation HDL Link KNX Gateway Server M/GWASC.1
€430,65 (inc. VAT)
Available from 1 to 3 days
Similar product
KNX Gateway is a protocol conversion gateway based on KNX Bus communication. and enables data exchange with devices of different protocols. Its main functions include:. automatic synchronization of network time. device abnormal information. Drive management of third-party products. Data backup and data recovery function. Protocol and software support:. and standard mqtt access to third-party servers also supported. Support intranet communication. Support backup upload and download of APP. or upgrade other Bus devices through this gateway.
- Working voltage: 21~30V DC
- Working current: 20mA/30V DC
- Auxiliary voltage: 20~30V DC
- Auxiliary current: 200mA/24V DC
- Communication: KNX, RS485, Ethernet
- KNX connector: 1
- Auxiliary power supply: 1
- RJ45 port: 1
- SD card slot: 1
- Hardware information: CPU H3@1GHz, 4G RAM, 8G Flash
- Cable diameter of KNX terminal: 0.6 - 0.8mm
- Operation system: Linux 3.2.0 Kernel
- Working temperature: -5℃~45℃
- Working relative humidity: ≤90%
- Storage temperature: -20℃~60℃
- Storage relative humidity: ≤93%
- Dimensions: 90×36×63.7 (mm)
- Net weight: 87g
- Housing material: PA66
- Installation: 35mm DIN rail installation
