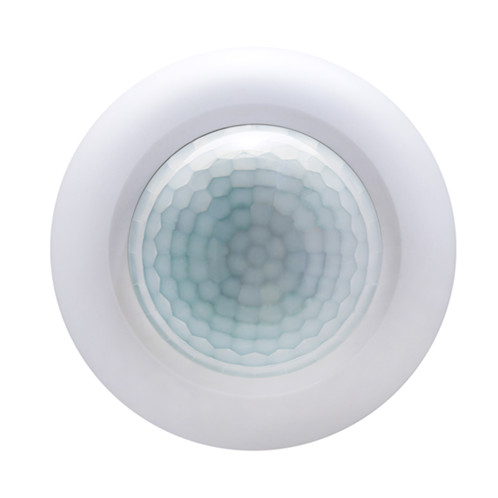

HDL Sensor PIR & Lux Reccess Mount M/IS05.1
Product code: 20529220 // MPN: M/IS05.1
HDL Automation HDL Sensor PIR & Lux Reccess Mount M/IS05.1
€95,05 (inc. VAT)
Available from 1 to 3 days
Similar product
LUX sensor and External Telegram Detection. With 2CH lighting control. 4 levels of brightness and delay time can be set in dimming output. With gradually dimming effect. the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking. With 2CH constant brightness control. 4 pre-set dimming values are supported and forced dimming can be set. The sensor has 5 logic blocks and each block contains 10 object outputs. telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking. Logic combination control. temperature and external telegrams. OR 2 working modes: Single mode and master/slave mode. The logic validity can be set by external telegram.
- Working voltage: 21~30V DC
- Working current: 5mA/30V DC
- Communication: KNX
- Cable diameter of: KNX terminal 0.6 - 0.8mm
- PIR detection range: Φ8m (Installation height: 3m)
- Working temperature: -5℃~45℃
- Working relative humidity: ≤90%
- Storage temperature: -20℃~60℃
- Storage relative humidity: ≤93%
- Dimensions: Φ63×46.6 (mm)
- Net weight: 43g
- Housing material: ABS, PC, iron
