MOTHERBOARDS

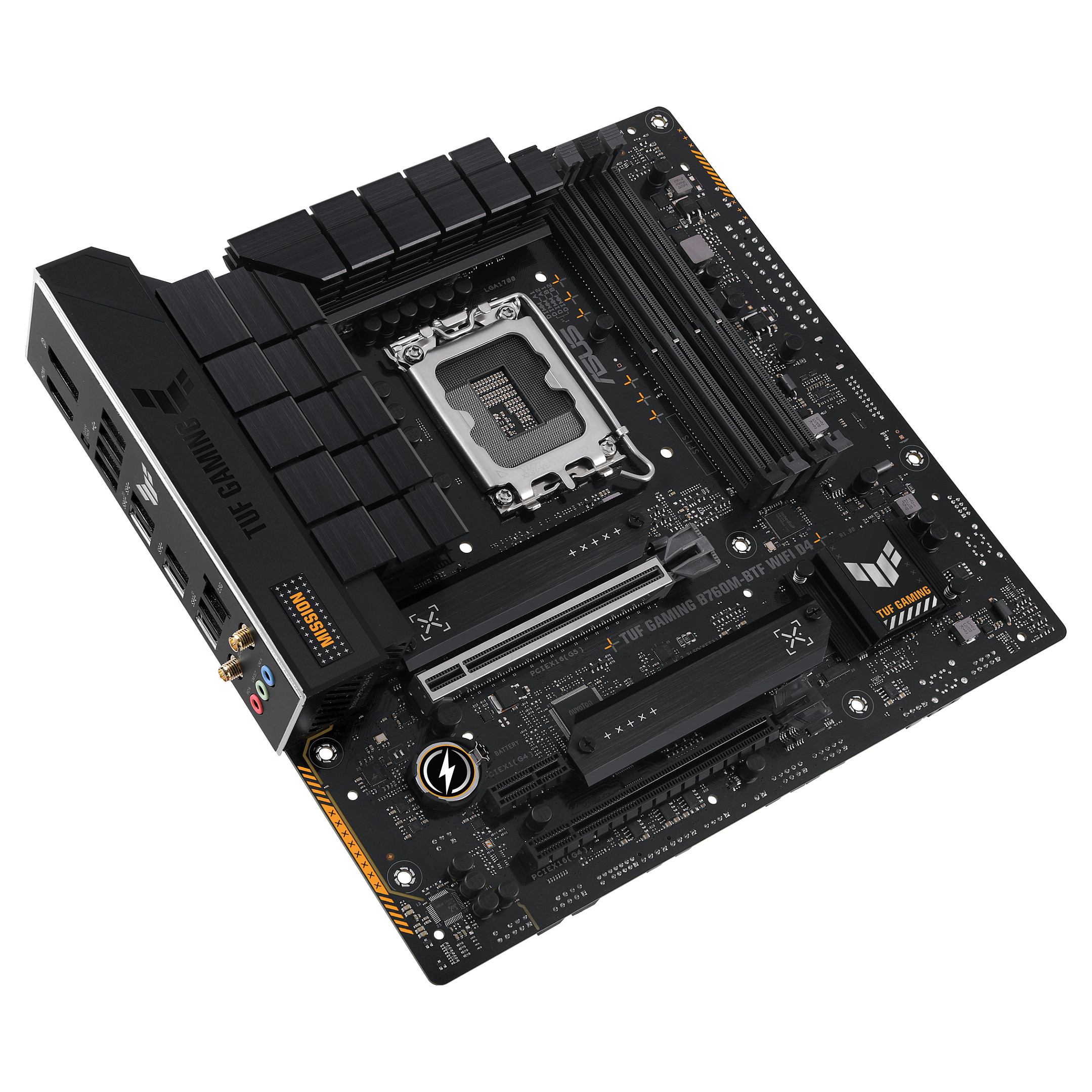

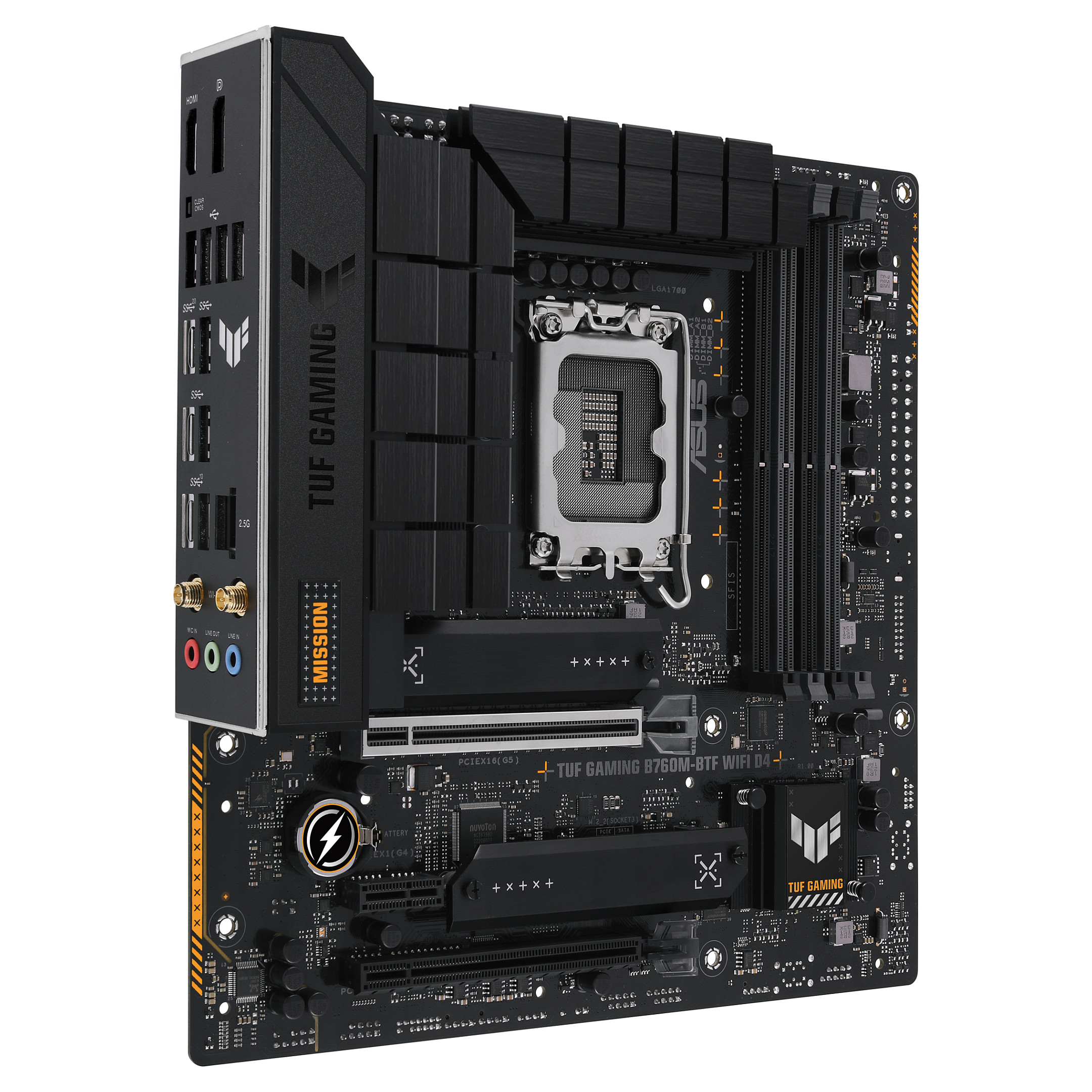

The TUF GAMING B760M-BTF WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers. the BTF series hides all its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance. This motherboard is engineered with military-grade components. an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming. The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system. enabling performance tweaks to expertly match the way you play. All-Around Energy Efficiency. The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit. and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. The renowned ASUS UEFI BIOS provides everything you need to configure. tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans. The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from. a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community. With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs. plus support for DDR4 memory and PCIe 4. the TUF GAMING B760M-BTF WIFI D4 is the perfect foundation for your next Intel battle rig. 12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power. efficiency and stable performance for all compatible Intel processors. The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. 8+4 Pin ProCool Power Connectors. Compared to most power inputs. ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure. Certified military-grade TUF chokes deliver rock-solid power to the CPU. improving system stability. The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2. 5X-longer lifespan than standard motherboard capacitors. The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry. optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times. DRAM Overclocking Performance. Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance. and it adds shielding zones that significantly reduce crosstalk. 2 slots on the topside and one PCIe 4. 2 slot on the underside support up to three 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe® 4. enabling quicker boot-up and app load times with OS or application drives. The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation. 2 slots have dedicated heatsinks. 2 SSDs at optimal operating temperatures to ensure consistent performance and reliability. Comprehensive Fan Controls. TUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. and all settings can be easily managed by Fan Xpert 2+ or via the UEFI. The TUF GAMING B760M-BTF WIFI D4 reaches new heights of performance potential with the latest version of PCI Express. while an arsenal of USB ports includes four Type-C connections. and Thunderbolt 4 expands compatibility and bandwidth even further. The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility. while Armoury Crate has Fan Xpert 2+. Two-Way AI Noise Cancelation. RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs. Optimized Cable Management. The hidden-connector design can be ideal for a first-time builder. because it allows easier cable management and also enhances a build’s appearance by presenting neat and clean internals. *This motherboard is compatible with specific case models. TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts. With new partnerships and components being added regularly. the TUF GAMING Alliance will continue to grow even stronger. SafeSlot Core+ & SafeDIMM. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards. empowering you to insert modules with speed. ESD Guards prolong the life of components while preventing damage from electrostatic discharge. providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput. protecting the motherboard from lightning strikes and static electricity. Stainless Steel Back I/O Panel. TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature. TUF GAMING motherboards passed 72-hour salt fog testing. while other brands only passed 24-hour testing. The innovative Q-Latch makes it easy to install or remove an M. 2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M. neatly eliminating the need for screws. 2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M. The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU. storage devices ― are functioning normally during startup. The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package. with ultrafast networking for smoother online gameplay. pristine audio with positional cues for FPS Gaming. and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere. 5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2. Using your existing LAN cable. you can take advantage this networking upgrade to experience smoother. immediately stream high-resolution videos and enjoy faster file transfers. Two-Way AI Noise Cancelation. This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter. mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls. 5 mm audio jack Y-cable) is necessary when using a 3. The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented signal-to-noise ratio for the stereo line out. providing pristine audio quality. DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass. movies and music sound better. It also allows you to customize audio settings. Addressable Gen 2 RGB Header. Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices. empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear. ECC сompatibility: Non-ECC. Peripheral (Molex) power connectors (4-pin): 1. 1 Gen 1) Type-A ports quantity: 2. 1 Gen 1) Type-C ports quantity: 1. 1 Gen 2) Type-A ports quantity: 1. 1 Gen 2) Type-C ports quantity: 1. 2 Gen 2x2 Type-C ports quantity: 1.
