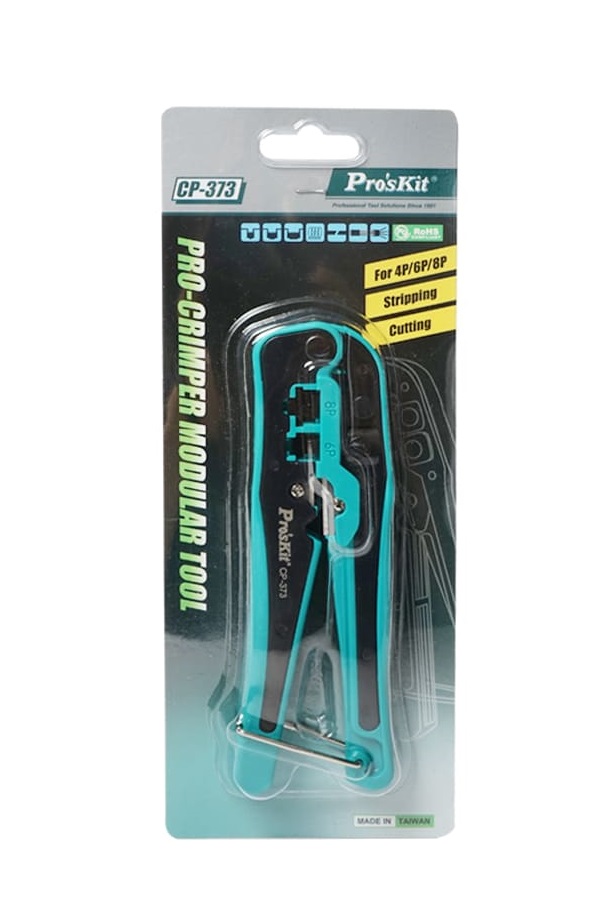

Proskit Crimping Tool Modular CP-373

Add to wishlist

Code: 20774220

Available from 1 to 3 days

Cut, crimp, strip – 3 in 1 function
Suitable for 8P8C/RJ45 / 6P2C/6P4C/6P6C/RJ11/RJ12 / 4P2C/4P4C/RJ-22 crimping
Cutting modular cable: Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally
Stripping modular cable (Flat Cable) : Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide / Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade
Squeeze handles until it stops cable must be kept perpendicular and then pull from the tool
Stripping Round Cable Insert the cable into the round stripping hole, turn the crimper in counter clockwise direction and cable in clockwise at the same time
Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end
Place modular plug with cable into the tool's holder. Be sure the striped wire is between the tab and gold contacts. Squeeze handles until it stops
4p holder is located on the back side of the tool

Material : ABS+carbon steel
Application : 8P8C/RJ45, 6P2C/6P4C/6P6C RJ11 modular plugs,RJ-22 4P2C/4P4C handset modular plugs
OAL.(mm) : 160
