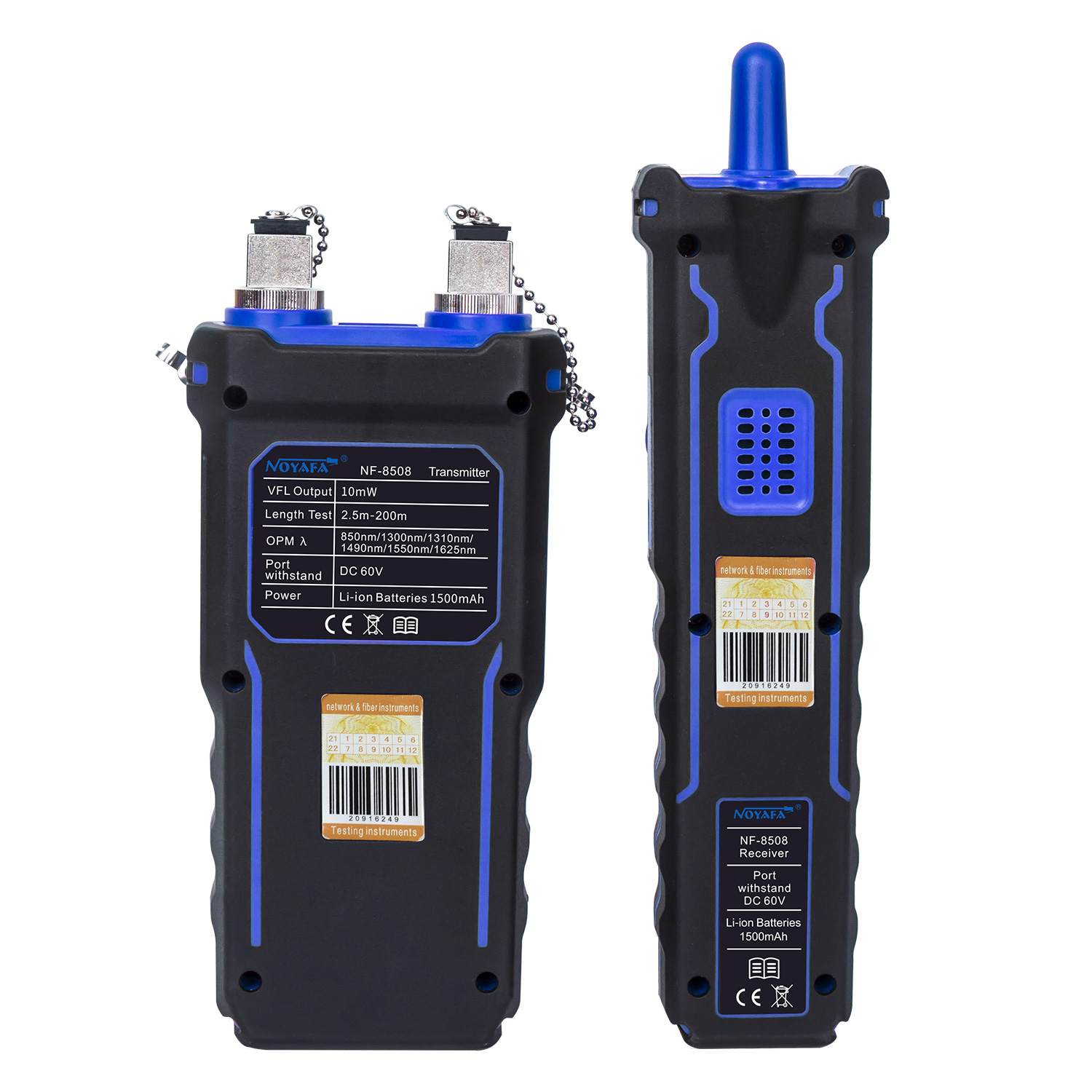

Noyafa Multi-Function Cable Tester with RJ11/RJ45, PoE, Fiber Optic OPM/VFL, NCV & Cable Length Measurement NF-8508

Add to wishlist

Code: 20774020

Available from 1 to 3 days

Wire mapping & Continuity test: Check Cat5 & Cat6 Cables status. Display length and exact faults like opens, splits, shorts, and crossings on an LCD screen.
Cable trace: Adjustable signal strength indicator helps find cables from bundled cables, different rooms, walls, and ceilings. (300 meters/984 feet).
Length test: Measure the length of CAT5/CAT5e/CAT6 cables up to 200 meters (656 feet). Help prepare the suitable cables for installation.
Port flash: Sending signals through connected cables to flash ports on 10M/100M/1000M hubs, panels, routers, or switches. Sync frequency flashing on Port & LCD Screen.
PoE test: Diagnose the PoE network by listing pins of the power supply, and other statuses like voltage, polarity, and PSE(af or at standard).
Optical Power meter: Measure optical power and loss in single-mode optical fibers.
Visual Fault Locator: Quickly navigate Fiber break points with visible red lights.
RJ45 Head Test: Tell if RJ45 connectors are properly crimped.
NCV: Non-contact voltage detector on Receiver levels up safety and reduces chances of damaging devices.

Cable type: CAT5/CAT6
Voltage protection : 60V
Details of CONT function : Scan Frequency: 455KHz
Port Flash: √
Details of Length function: Accuracy: ≤20M+/-1.6M, 20M~100M+/-2.4M, >100M+/-3.2M
Details of POE function: Standard/Non Standard - End connection /Middle jumper /Powered by 8 cores - PoE Power supply
NVL: 10Mw
OPM: 1310/1550/1625 (Single-mode Wavelength)
Crimping: RJ45-8 Cores,Min length is 210cm
Power supply: 3.7V 1500mAh Polymer lithium battery
Charge : Type-C connector
NCV: √
Lamp: √
Lower voltage warning: √
