PC CASE

The CG590U 5F is a curved-glass panoramic case with a dual-chamber layout and a spacious interior. Pre-installed with five ARGB fans, it is ready from the start with strong airflow and vibrant lighting.

SEAMLESS PANORAMIC VIEW

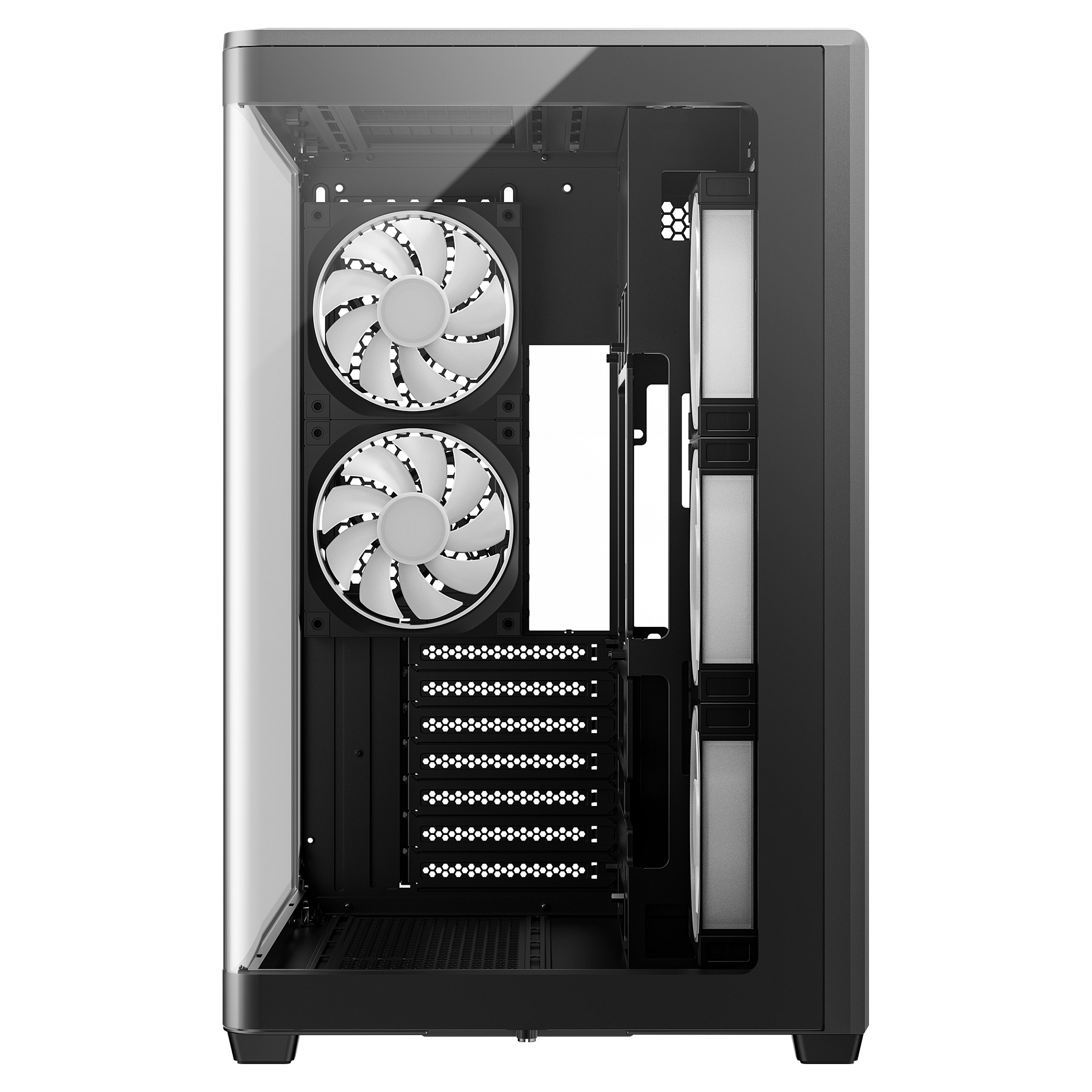

The CG590U 5F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.

EFFICIENT VENTILATION
The dual-chamber layout separates the power supply and drives into their own cooling zone, keeping the GPU’s intake path clear. Large mesh panels on the top and side increase ventilation throughout the case.

START COOL, SHINE BRIGHT

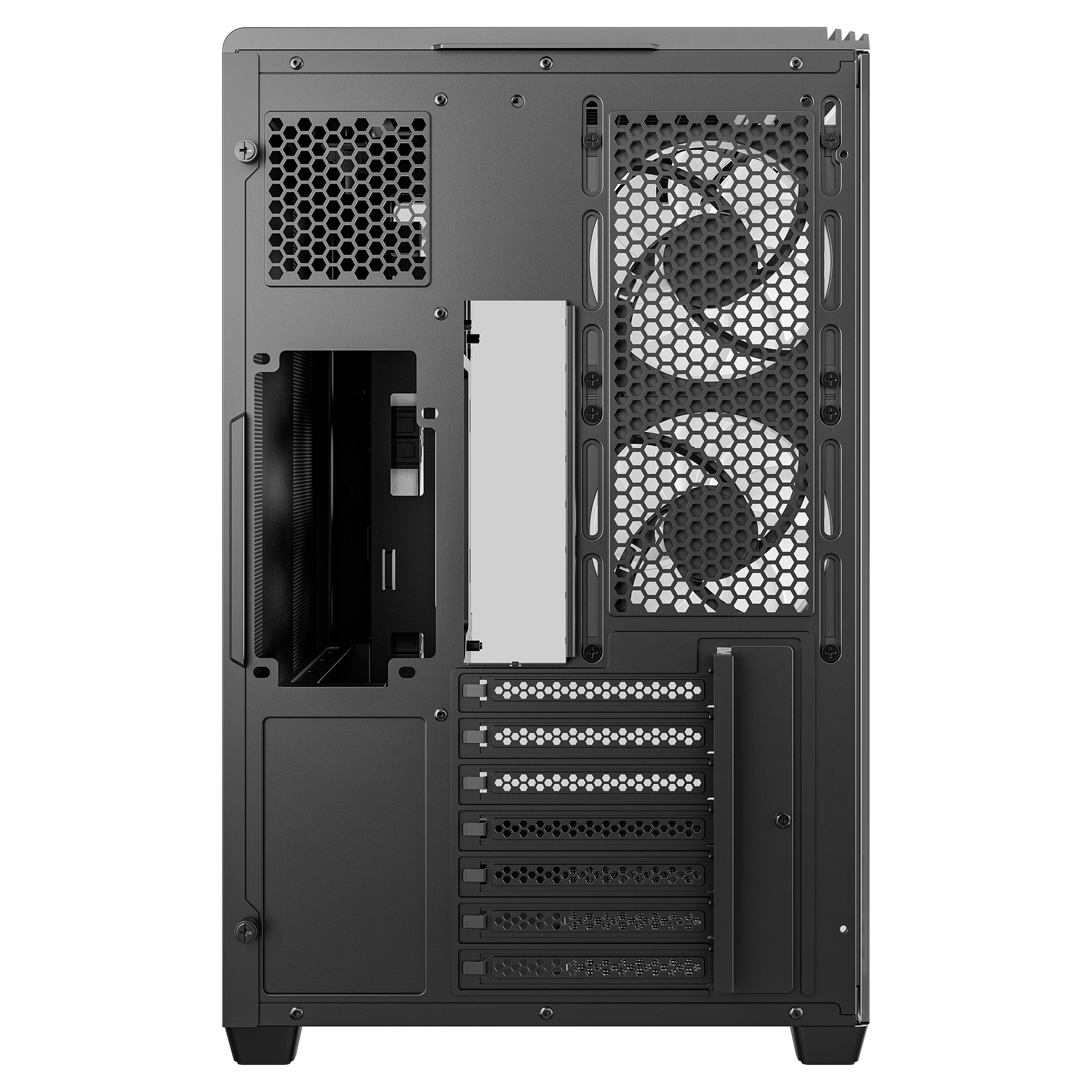

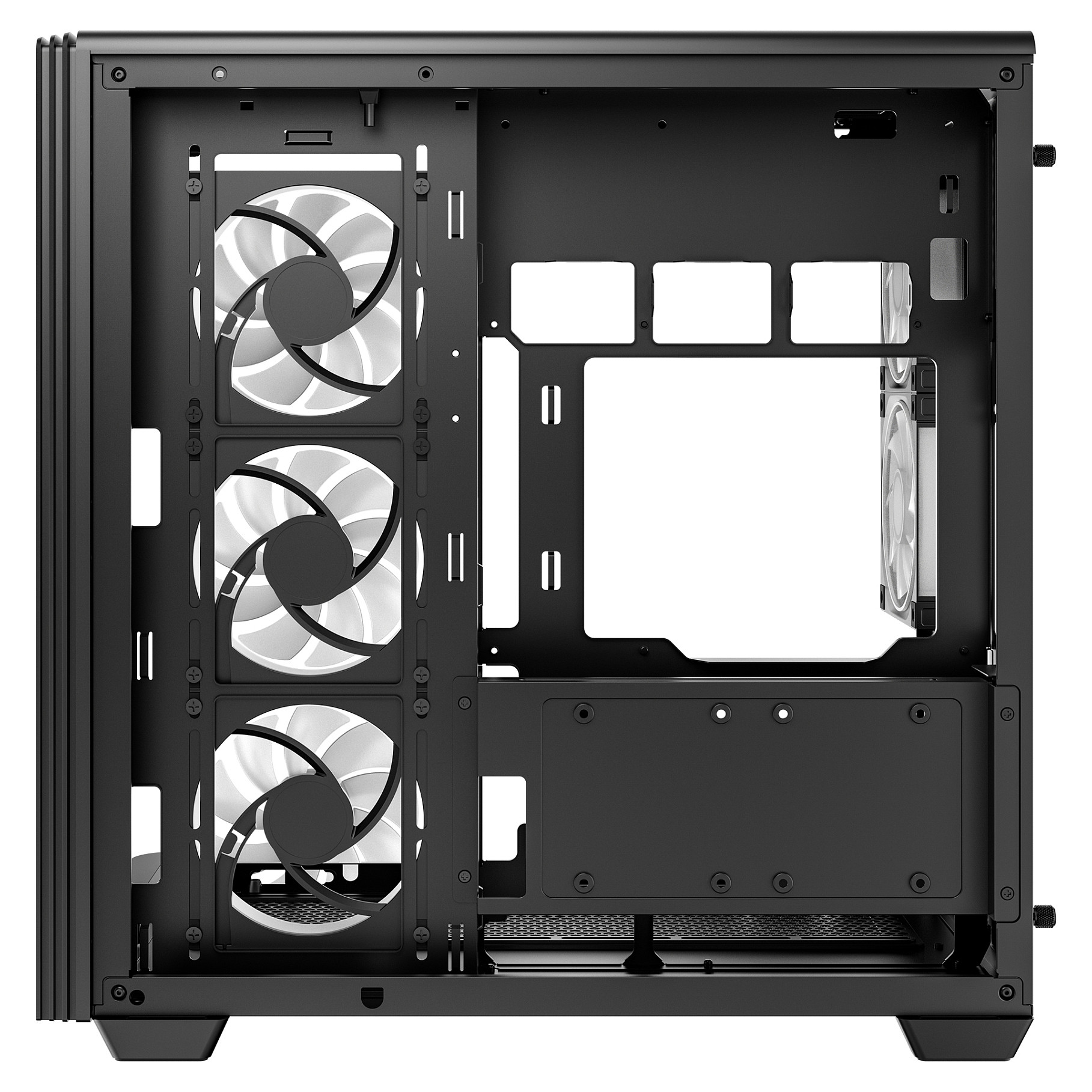

The CG590U 5F includes dual rear fan mounts to enhance exhaust capacity. It comes pre-installed with three reverse-blade 120mm ARGB fans on the side and two standard units at the rear, creating a powerful horizontal airflow.

BROAD HARDWARE SUPPORT
The spacious interior provides ample room for high-end components, supporting CPU coolers up to 160mm tall, GPUs up to 410mm long, and ATX PSUs up to 210mm.

FLEXIBLE COOLING OPTIONS
The CG590U 5F provides versatile cooling options with support for a 360mm radiator on the top, side, or bottom. In full air-cooling mode, it can house up to eleven fans for strong airflow.

EASY I/O ACCESS
The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.

Design
Material: Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Form factor: Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ITX, micro ATX, ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of expansion slots: 7
Side window: Yes
Illumination: Yes
Illumination colour: Multi
Illumination location: Case fans
Tempered glass panel(s): Yes
On/off button: Yes
RGB control button: Yes
LED indicators: Yes
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 21 cm
Power supply
Power supply included: No
Power supply location: Rear
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Combo headphone/mic port: Yes
Cooling
Side fans installed: 3x 120 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120 mm
Rear fans installed: 2x 120 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 120 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120 mm
Liquid cooling capability: Yes
Side radiator sizes supported: 120,240,360 mm
Bottom radiator sizes supported: 120,240,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 140,120,240,280,360 mm
Storage
Supported HDD sizes: 3.5,2.5"
Weight & dimensions
Width: 285 mm
Depth: 460 mm
Height: 460 mm
Weight: 8.2 kg
