AJAX ocBridge Plus Wired Integration

Product code: 25071320 // MPN: 7296.14.NC1 // EAN: 856963007262

Ajax ocBridge Plus Wired Integration

€111,87 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

AJAX Automation Wall LightSwitch(2 Way)

Code: 25075420

€103,95

Available from 1 to 3 days

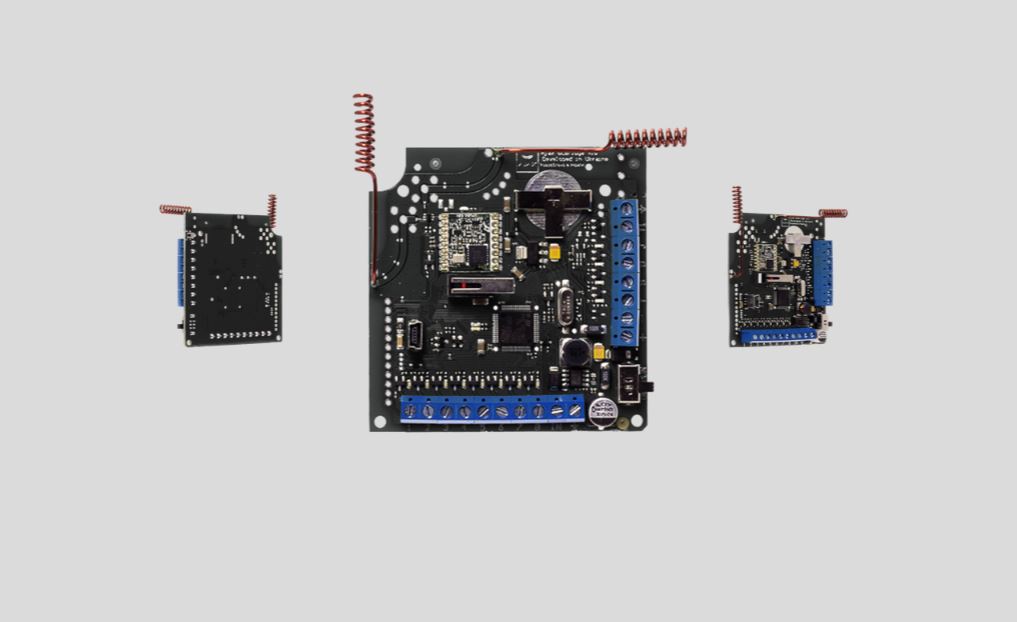

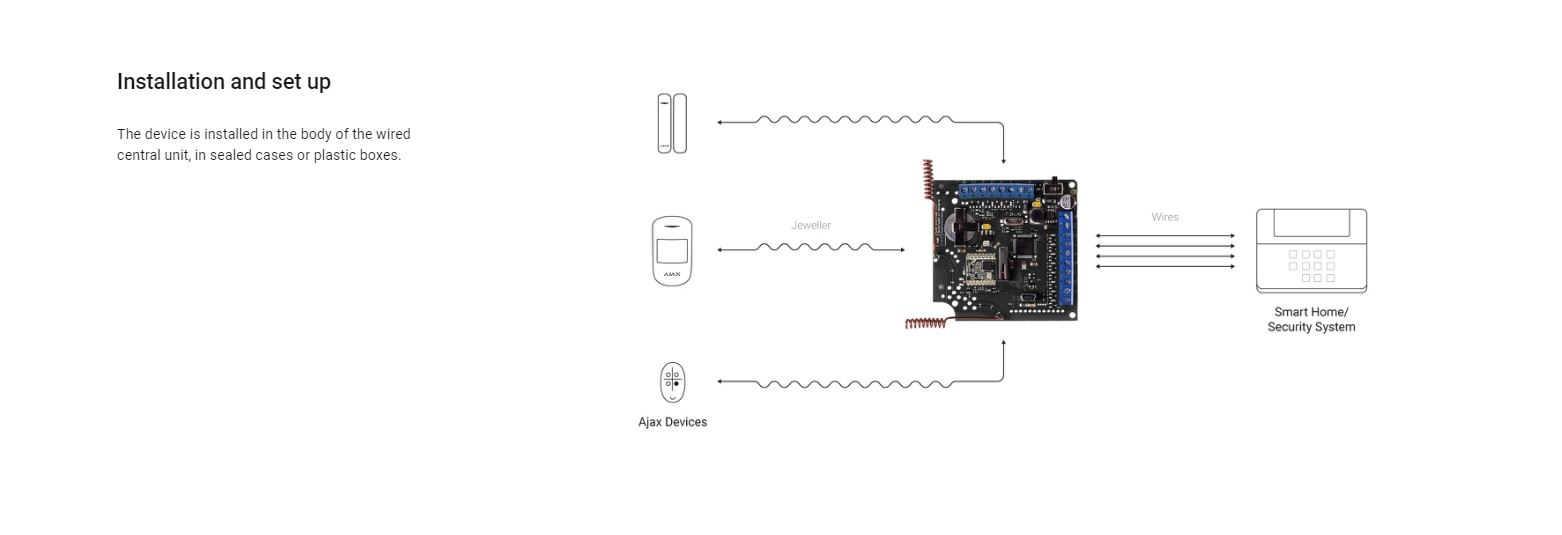

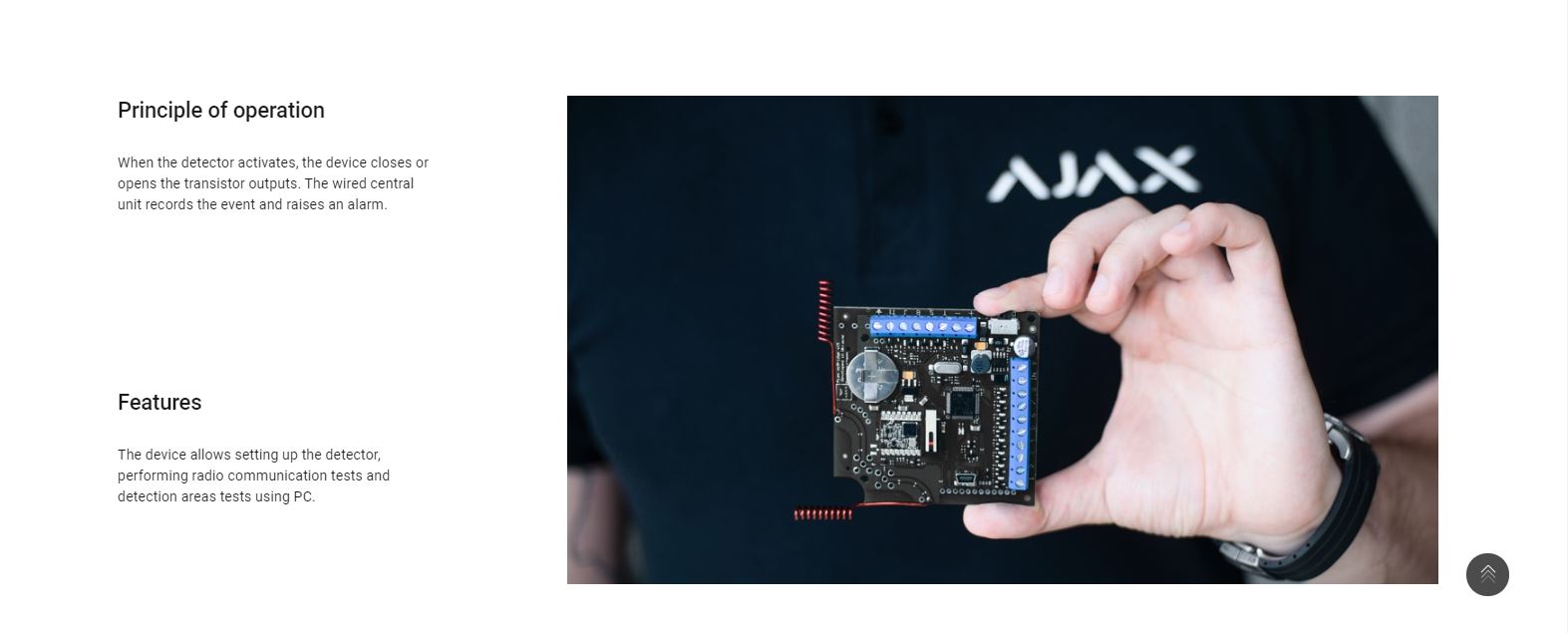

Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas. When the detector activates. the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm. The device allows setting up the detector. performing radio communication tests and detection areas tests using PC. The device is installed in the body of the wired central unit. in sealed cases or plastic boxes.

Classification: Receiver of wireless detectors
Installation method: Indoors
Compatibility: Wired and hybrid security systems
Number of security areas: 8
Number of service areas: 4
Loops: NO/NC, EOL, 2EOL
Maximum number of detectors: 99
Alarm signal delivery time: 0.15 s
Power supply: Terminals +/ground
Power supply voltage: 8 - 14 V DC
miniUSB: 5 V (only for set up)
Jeweller radio technology: Communication range with detectors — up to 2,000 m in an open space / Two-way communication with detectors
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 25 mW
Block encryption based: AES algorithm
Device polling period: 12 - 300 s
Software update feature: Yes
Operating temperature range: From –10°? to +40°?
Permissible humidity: Up to 90%
Anti-sabotage: Protection against fraud
Jamming detection: Tamper
Setting up and testing: Via configurator for PC
Download: Current firmware version 4.50.0
Interface: miniUSB
Dimensions: 95 × 92 × 18 mm
Weight: 139 g
Certification: CE
Warranty: Replacement and repair within 24 months of the date of sale
