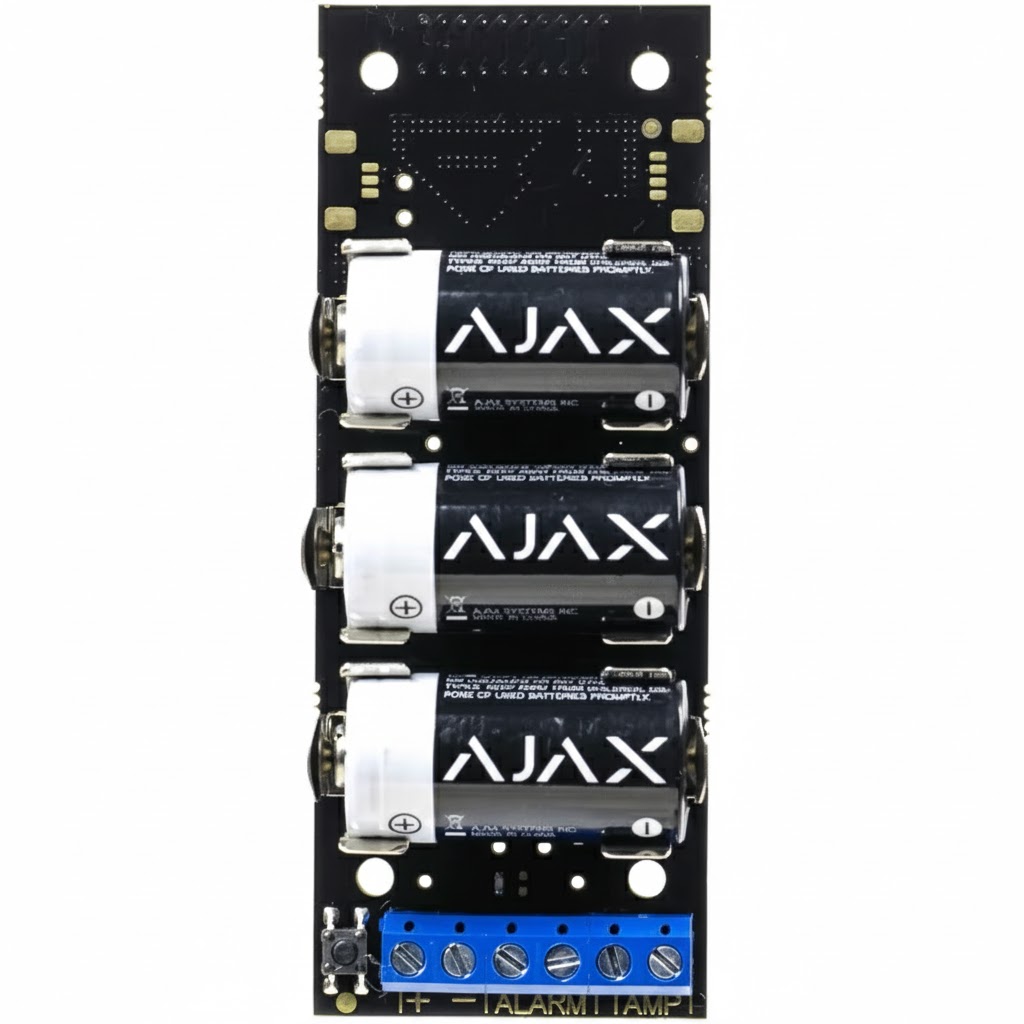

AJAX Transmitter Wireless Integration
Product code: 25071420 // MPN: 38184.18.NC1
New entry
€39,80 (inc. VAT)
Available from 1 to 3 days
Similar products
New entry
- Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system
- The device receives the activation signal from the detector via wired input and sends an alarm to the hub
- It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened
- Connecting a detector : Alarm and Tamper (NO/NC) terminals
- Mode for processing alarm signals from the detector : Pulse or Bistable
- Power : 3 x CR123A, 3V batteries
- Capability to power the connected detector : Yes, 3.3V
- Protection from dismounting : Accelerometer
- Frequency band : 868.0–868.6 MHz or 868.7 – 869.2 MHz, depends on sales region
- Compatibility : Operates only with Hub, Hub Plus, Hub 2 and ReX
- Maximum RF output power : Up to 20 mW
- Modulation : GFSK
- Communication range : Up to 1,600 m (any obstacles absent)
- Ping interval for the connection with the receiver : 12–300 sec
- Operating temperature : From -25°? to +50°?
- Operating humidity : 1 Up to 75%
- Dimensions : 100 x 39 x 22 mm
- Weight : 74 g
