AJAX Keypad Plus White

Product code: 25072920 // MPN: 38253.83.WH1

New entry

€110,95 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

AJAX FIBRA Automation Multitransmitter (Wired module to integrate up to 18 third-party devices into an Ajax system)

Code: 25079820

€130,25

Available from 1 to 3 days

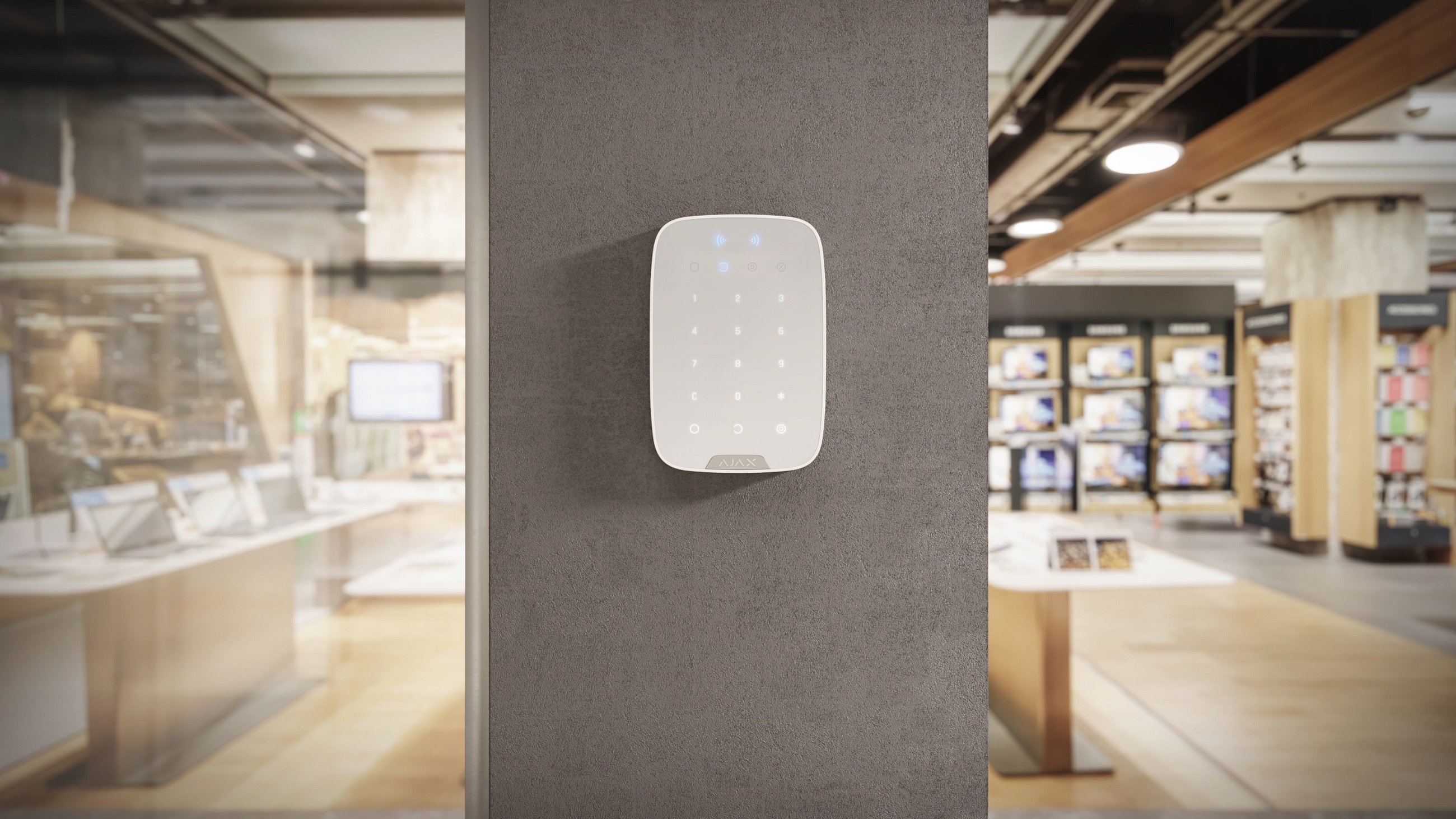

Wireless touch keypad supporting encrypted contactless cards and key fobs

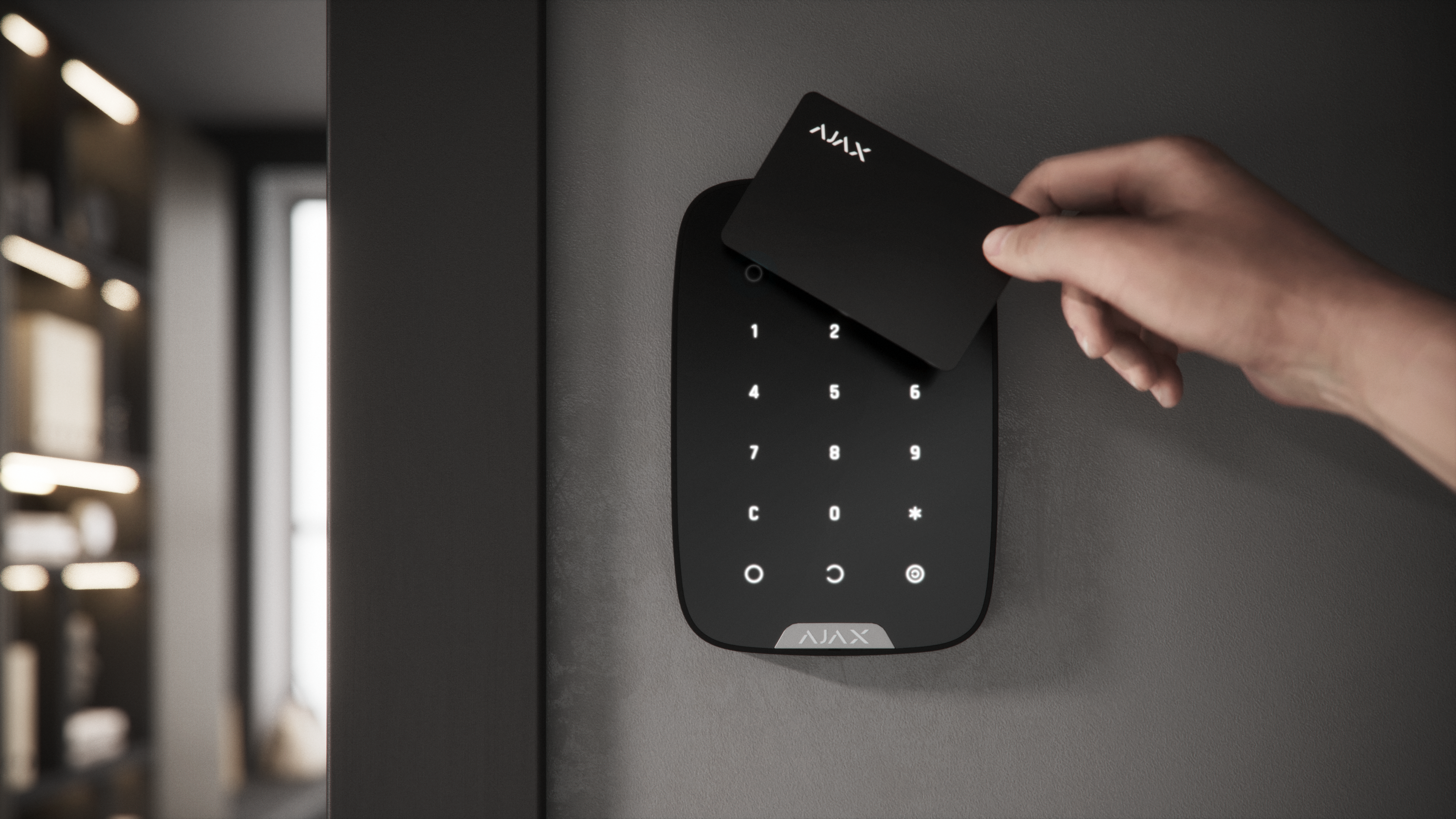

KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag1 key fob
KeyPad Plus is supported by Hub Plus, Hub 2 and Hub 2 Plus control panels
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA
The all-new KeyPad Plus firmware gets the most out of the pre-installed batteries. Even with daily use of the contactless identification function, the keypad will work for 3.5 years without replacing batteries. And with the card and key fob reader disabled, the battery life reaches 4.5 years. KeyPad Plus will warn a monitoring station and users in advance about the need to replace the batteries
Set up personal passcodes to know who and when disarmed the system: a username is displayed in the notification and in the event log. Pass or Tag can also be assigned to a specific user with defined permissions to control security of specific groups or the entire site. Ajax app allows you to manage access permissions in real time. You can limit, extend, or instantly block access

Keypad type : Capacitive touch keypad
Installation : Indoor only
Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Personal passcodes : Yes
Passcode guessing protection : Yes
Duress code : Yes
Contactless access : DESFire® EV1, EV2 / ISO14443-А (13,56MHz)
Power supply : Batteries: 4 lithium AA (FR6) / Voltage 1.5V / Battery life: up to 4.5 years
Temperature sensor : Available
Jeweller radio technology : Communication range with central unit — up to 1,700 m / Two-way communication between devices / Operating frequencies — 868.0–868.6 MHz5 / Self-adjusting RF output power — up to 20 MW / Block encryption with a dynamic key / Ping period — 12–300 s
Anti-sabotage : Authentification / Jamming detection / Tamper notifications
Operating temperature range : From –10°C to +40°C
Operating humidity : Up to 75%
Dimensions : 165 × 113 × 20 mm
Weight : 267 g
Certification : EN 50131, complies with the requirements of the technical regulations for radio equipment
Warranty : 24 months
