AJAX Automation WaterStop Valve 1/2
Product code: 25076620 // MPN: 52271.146.WH1(45644.146.WH1)

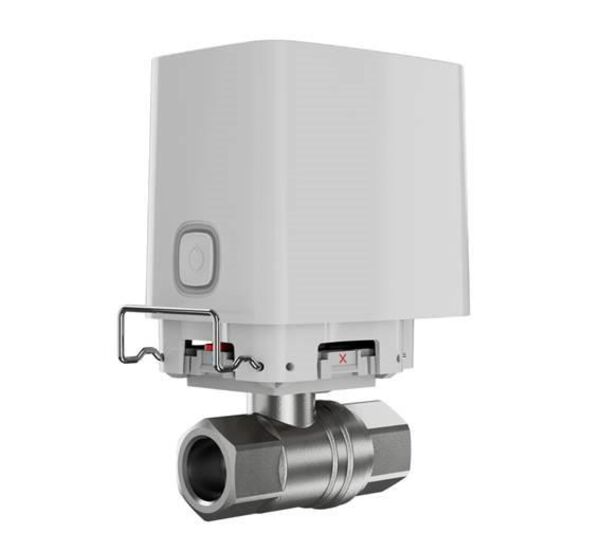

Ajax Automation WaterStop Valve 1/2
€308,90 (inc. VAT)
Available from 1 to 3 days
Similar product
WaterStop automatically shuts off the water in 5 seconds at a facility with an Ajax security system if LeaksProtect or a third-party water leak detector is triggered. The device combines a high-quality valve and a powerful electric actuator. You can control WaterStop and check its status from anywhere in the world — all you need is an Internet connection and an Ajax app. You can also create a scenario to shut the water off at a specific time or when arming the system.
- Hubs: Hub Plus / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G)
- Radio signal range extenders: ReX / ReX 2
- Radio frequency bands: 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
- Maximum effective radiated power (ERP): up to 20 mW (Automatic power adjustment to reduce power consumption and the effect of radio interference)
- Radio signal modulation: GFSK
- Radio communication range: up to 1,100 m (Between device and hub or radio signal range extender without obstacles)
- Frequency hopping: Prevents radio interference and jamming
- Shutoff valve: ½" (DN 15), Bonomi Industries shutoff valve included in complete set
- Electric actuator: Opens or closes the valve
- Mounting platform: To install an electric actuator on a shutoff valve
- Mounting lockers: To fix an electric actuator on a shutoff valve
- The complete set includes two options: : standard (pre-installed) / anti-sabotage
- Fields of application: water supply and heating systems
- Operating fluid: hot and cold water, non-aggressive liquids
- Material: brass
- Connection type and thread: F/F threaded
- Thread size: : ½" (DN 15)
- Operating liquids' temperature range: from +5°C to +120°C
- Torque: up to 8.5 N
- m
- Operating pressure: up to 10 bars
- Shut-off speed: up to 5 seconds (The value may increase if the valve is clogged or stuck)
- Remote control: control and configuration in Ajax apps
- Manual control: the control button on the electric actuator enclosure
- Installation: does not require tools and enclosure disassembling
- LED indication: The LED placed under an Ajax logo on enclosure and reports the electric actuator states
- Overheating notification: The notification is sent to Ajax apps when the device temperature tops +60°C and when it returns to normal
- Protection against spoofing: device authentication
- Communication failure detection: in 36 (The time depends on the Jeweller/Fibra settings)
- Tampering alarm: Notifies about attempts to detach the enclosure from the mount
- Pre-installed batteries: 4 × CR123A battery (Up to 3 years of battery life)
- Optional external power supply: 7.5–14 V⎓, up to 1.8 A
- Dimensions: 104 × 140 × 70 mm / ½" (DN 15) shutoff valve with an electric actuator
- Weight: 869 g / ½" (DN 15) shutoff valve with an electric actuator
- Operating temperature range: from 0°C to +60°C
- Operating humidity: up to 95%
