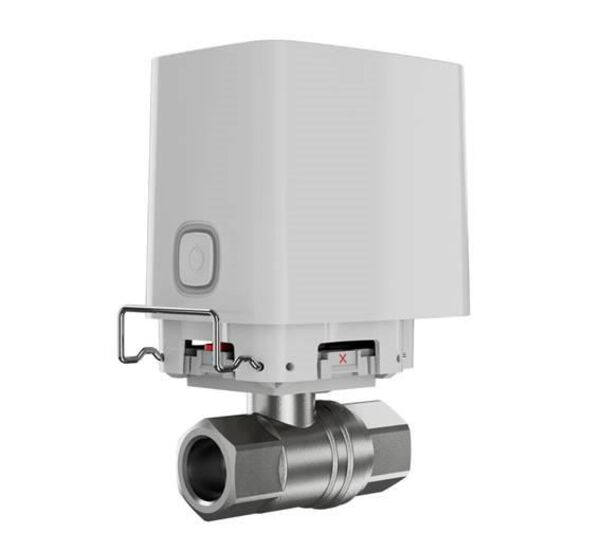

AJAX Automation WaterStop Valve 1

Κωδικός: 25076720 // Κωδικός προμηθευτή: 50533.154.WH1

Ajax Automation WaterStop Valve 1

€407,00 (συμπ. ΦΠΑ)

Διαθέσιμο από 1-3 εργάσιμες ημέρες

Προσθήκη στη wishlist

Παρόμοιο προϊόν

AJAX TCP-IP/GSM Alarm Hub2 (Supports PIR With Video Verification) Black

Κωδικός: 25074420

€381,15

Διαθέσιμο από 1-3 εργάσιμες ημέρες

WaterStop automatically shuts off the water in 5 seconds at a facility with an Ajax security system if LeaksProtect or a third-party water leak detector is triggered. The device combines a high-quality valve and a powerful electric actuator. You can control WaterStop and check its status from anywhere in the world — all you need is an Internet connection and an Ajax app. You can also create a scenario to shut the water off at a specific time or when arming the system.

Hubs: Hub Plus / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G)
Radio signal range extenders: ReX / ReX 2
Radio frequency bands: 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
Maximum effective radiated power (ERP): up to 20 mW (Automatic power adjustment to reduce power consumption and the effect of radio interference)
Radio signal modulation: GFSK
Radio communication range: up to 1,100 m (Between device and hub or radio signal range extender without obstacles)
Frequency hopping: Prevents radio interference and jamming
Shutoff valve: 1" (DN 25), Bonomi Industries shutoff valve included in complete set
Electric actuator: Opens or closes the valve
Mounting platform: To install an electric actuator on a shutoff valve
Mounting lockers: To fix an electric actuator on a shutoff valve
The complete set includes two options: : standard (pre-installed) / anti-sabotage
Fields of application: water supply and heating systems
Operating fluid: hot and cold water, non-aggressive liquids
Material: brass
Connection type and thread: F/F threaded
Thread size: : 1" (DN 25, 25 mm)
Operating liquids' temperature range: from +5°C to +120°C
Torque: up to 8.5 N
m
Operating pressure: up to 10 bars
Shut-off speed: up to 5 seconds (The value may increase if the valve is clogged or stuck)
Remote control: control and configuration in Ajax apps
Manual control: the control button on the electric actuator enclosure
Installation: does not require tools and enclosure disassembling
LED indication: The LED placed under an Ajax logo on enclosure and reports the electric actuator states
Overheating notification: The notification is sent to Ajax apps when the device temperature tops +60°C and when it returns to normal
Protection against spoofing: device authentication
Communication failure detection: in 36 (The time depends on the Jeweller/Fibra settings)
Tampering alarm: Notifies about attempts to detach the enclosure from the mount
Pre-installed batteries: 4 × CR123A battery (Up to 3 years of battery life)
Optional external power supply: 7.5–14 V⎓, up to 1.8 A
Dimensions: 104.5 × 159 × 70 mm 1" (DN 25) shutoff valve with an electric actuator
Operating temperature range: from 0°C to +60°C
Operating humidity: up to 95%
Weight: 800 g
