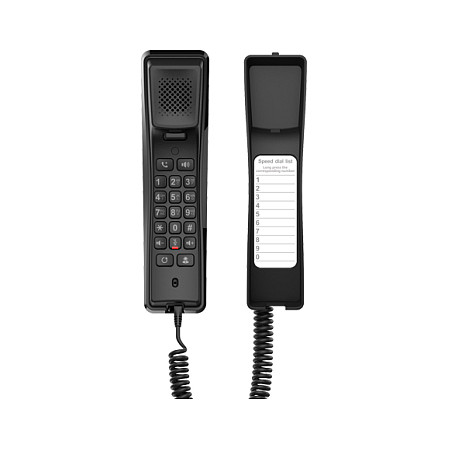

Fanvil H2U Compact IP Phone
Tiny and stylish, Fanvil H2U compact IP phone possesses brand new features including 2 SIP lines, 10 speed dial keys, 1 programmable DSS key and a HD speaker on handset. Supporting desktop and wall-mounted mode, PoE and power supply charging mode, Fanvil H2U is more than a hotel phone and also can be applied in multiple scenarios, such as school, hospital, supermarket and residence.

Considerate Design for Varied Scenarios
Tiny and fully-featured, Fanvil H2U supports PoE/power supply charging as well as desktop/wall-mounted mode,which can be applied in different scenarios flexibly.

HD Audio for both Handset and Speaker
With Wideband Codec G.722 and Opus, Fanvil H2U offers a more stable and clearer audio even in a noisy environment.

Support SIP Hotspot
Fanvil H2U IP phones can share one number from the server. When a call comes in,
each extension phone will ring together to make sure you won’t miss a call.

Design
Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Mounting: Desk/Wall
Performance
Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info
Phone features
Lines quantity: 2 lines
Call log entries: 600
Speed dialling: Yes
Call hold: Yes
Conference call: Yes
Redialing: Yes
Management features
Volume control: Buttons
Keypad number of keys: 19
Number of programmable keys: 1
Number of function keys: 3
Management platform: TP/TFTP/HTTP/HTTPS/DHCP, OPT66/SIP, PNP/TR-069
Firmware upgradeable: Yes
Display
Touchscreen: No
Camera
Front camera: No
Audio
Speakerphone: Yes
Microphone mute: Yes
Voice codecs: G.711a, G.711u, G.722, G.726, G.729A, OPUS, iLBC
Noise reduction: Yes
Echo cancellation: Yes
Voice activity detection: Yes
Adaptive jitter buffers: Yes
Comfort noise generation (CNG): Yes
Packet loss concealment (PLC): Yes
Network
Ethernet LAN: Yes
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Wi-Fi: No
Bluetooth: No
Supported network protocols: SIP2.0 UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Quality of Service (QoS) support: Yes
Security algorithms: SRTP
Syslog: Yes
Networking standards: IEEE 802.1x
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
RJ-11 ports quantity: 1
WAN connection type: RJ-45
Power
Power over Ethernet (PoE): Yes
AC adapter input voltage: 5 V
Input current: 2 A
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Width: 55.8 mm
Depth: 215 mm
Height: 27.8 mm
Package width: 224 mm
Package depth: 75 mm
Package height: 62 mm
Packaging content
Number of handles included: 1 pc(s)
