ROUTERS

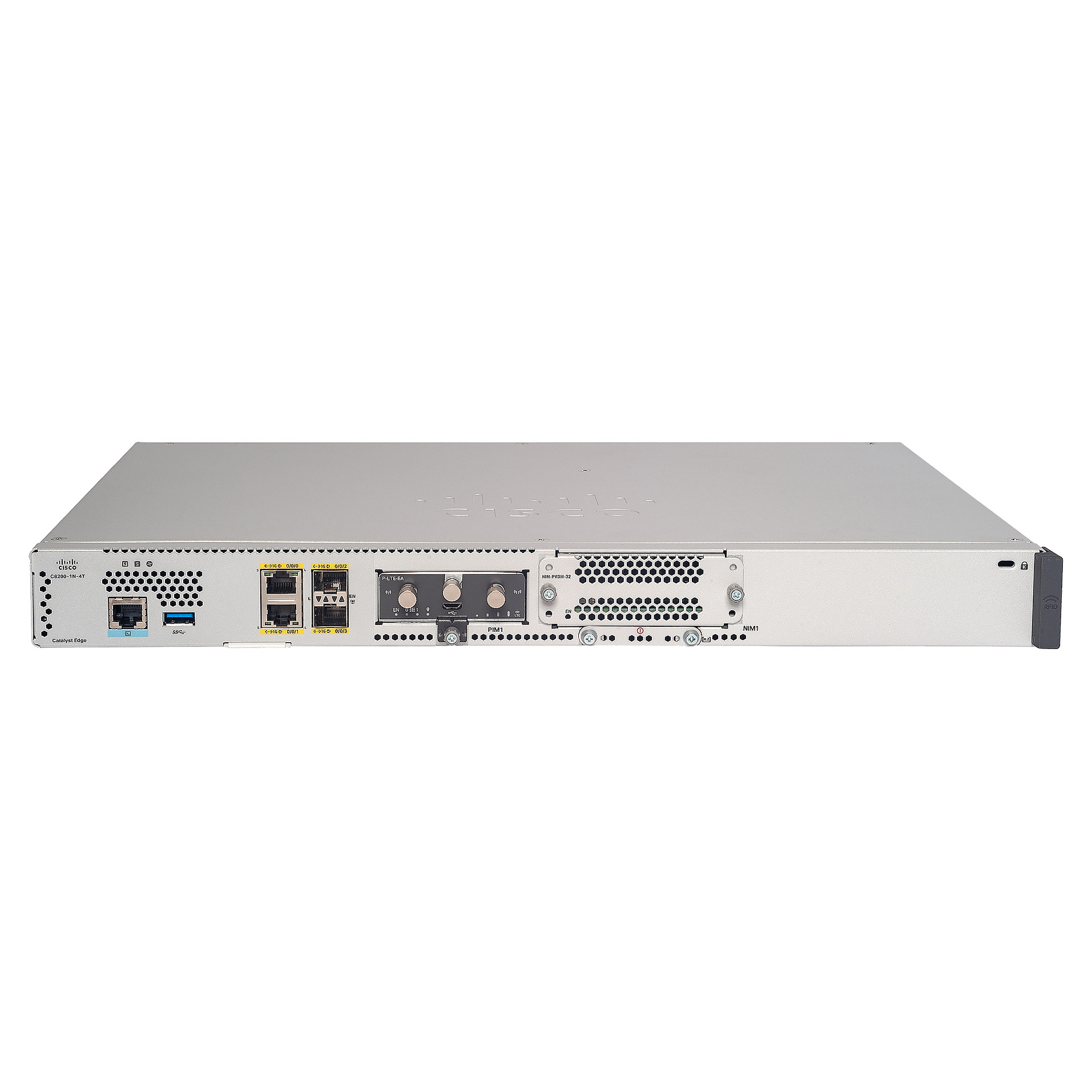

The Cisco® Catalyst® 8200 Series Edge Platforms with Cisco IOS® XE SD-WAN software deliver Cisco’s secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats.

The 8200 Series is well suited for small and medium-sized enterprise branch offices at optimal price/performance with integrated SD-WAN services.

The Catalyst 8200 Series Edge Platforms are offered in two models: C8200L-1N-4T for the small branch with SASE-compliant, cloud-based security requirements, and C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco’s third-party ecosystem.

WAN connection
Ethernet WAN: Yes
SIM card slot: No
3G/4G USB modem compatibility: No
Network
Networking standards: IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah
Ethernet interface type: Gigabit Ethernet
VLAN support: Yes
Management features
Web-based management: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Protocols
DHCP client: Yes
DHCP server: Yes
Security
Security algorithms: IPSec
Access Control List (ACL): Yes
Network address translation (NAT): Yes
Features
Built-in processor: Yes
Processor manufacturer: Intel
Internal memory: 4096 MB
Mean time between failures (MTBF): 692577 h
Certification: UL 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1IEC 60950-1AS/NZS 60950-1IEC/EN 60825
Design
Product colour: Grey
Rack mounting: Yes
Rack capacity: 1U
Power
Power source type: AC
AC input voltage: 90 - 264 V
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 85%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3050 m
Weight & dimensions
Width: 438.1 mm
Depth: 299.7 mm
Height: 43.9 mm
Weight: 4.54 kg
Logistics data
Harmonized System (HS) code: 85176990
