ACCESS POINTS

Fast Wi-Fi 6 for spatially challenging environments

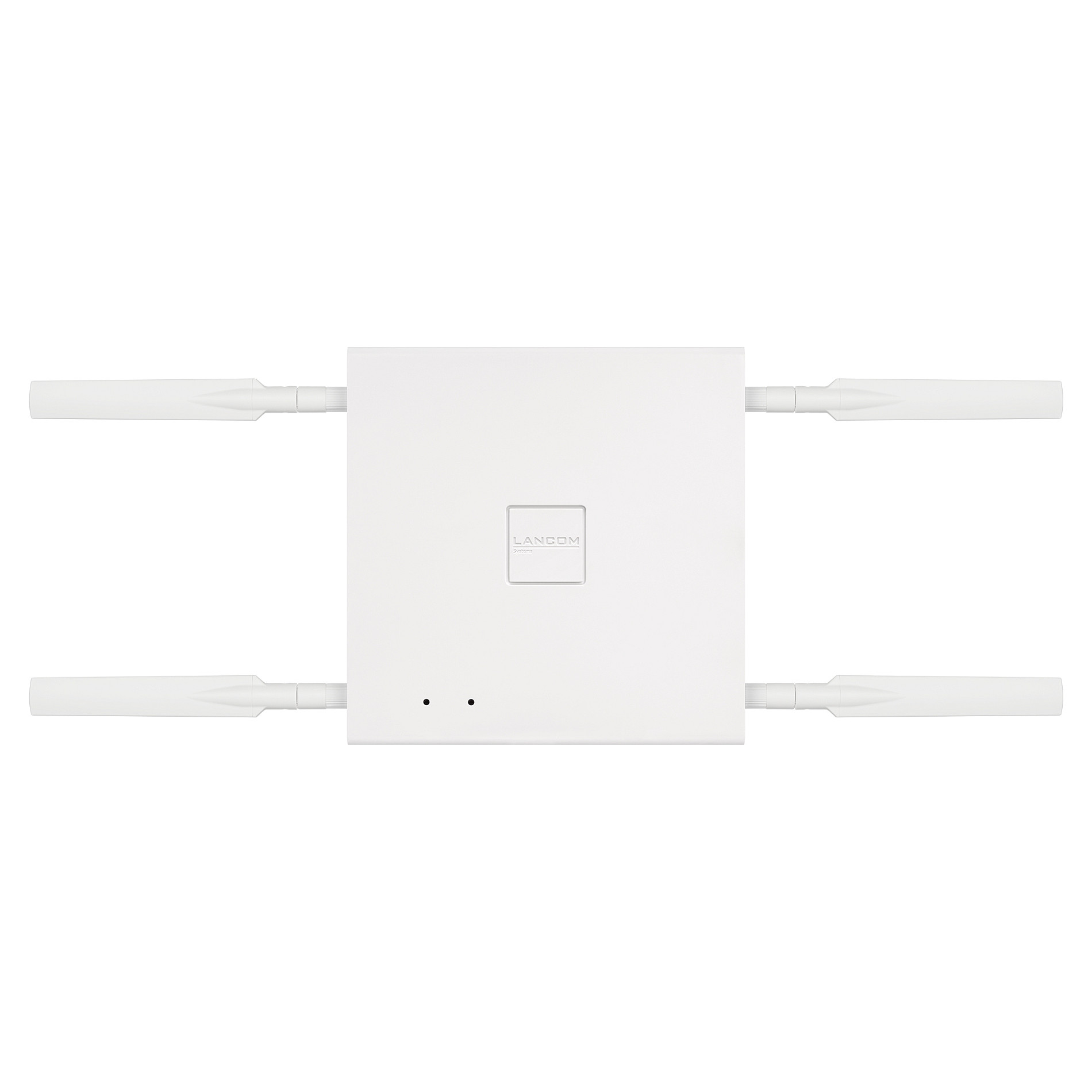

Whenever high-throughput Wi-Fi 6 performance is required in spatially challenging conditions, the LANCOM LX-6212 with external antennas offers optimal Wi-Fi coverage. For even more flexibility, external suspended ceiling, sector, or directional antennas can be connected. With parallel operation in 2.4 GHz and 5 GHz, the indoor access point provides reliable Wi-Fi for a medium user density, for example in hotels, offices, medical practices, or branch offices. The integrated USB interface also provides the basis for integrating IoT wireless systems into existing Wi-Fi infrastructures.

Dual concurrent Wi-Fi with an aggregated datarate of up to 1,775 Mbps
The LANCOM LX-6212 offers the Wi-Fi 6 standard (IEEE 802.11ax) for fast wireless LAN for clients in the 2.4- and 5-GHz bands. Wi-Fi 6 technology achieves transmission rates of up to 1,200 Mbps at 5 GHz and simultaneously up to 575 Mbps at 2.4 GHz.

2x2 Multi-User MIMO for downlinks and uplinks
Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LX-6212 between several different clients, rather than one after the other. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced. With Wi-Fi 6, MU-MIMO is not, as before, only usable in the downlink but now also in the uplink as well.

Maximum flexibility in antenna alignment
The option of connecting external antennas offers several advantages: The signal direction and coverage can be individually adjusted to increase transmission and reception performance. The four omni-directional antennas included in the scope of delivery enable comprehensive Wi-Fi coverage, while optionally connected ceiling, sector, or directional antennas ensure a precise beam angle.

Flexible power supply via PoE or power supply unit
The LANCOM LX-6212 can be operated flexibly on any PoE-powered Ethernet port via Power over Ethernet (PoE) according to IEEE 802.3at. For optimum operation, ideally a corresponding PoE switch is used. the access point operates with a power supply unit supplied.

Professional IoT support via BLE and USB
With the LANCOM LX-6212, you can easily dive into the world of the Internet-of-Things (IoT). Support for BLE 5.1 and USB 2.0 opens up many possibilities for you to communicate with modern WLAN sensors in devices or objects and use innovative applications such as asset tracking or digital signage with Wireless ePaper. In this way, you can easily operate solutions for digital signage, electronic shelf labels, and IoT applications via the optionally available LANCOM Wireless ePaper USB.

Secure integration of external users
Offer your guests a secure and convenient hotspot via the LANCOM LX-6212. The prerequisite for this is that the access point is operated directly on a Public Spot-capable LANCOM device or via the LANCOM Management Cloud, together with a Public Spot-capable LANCOM device in your network. As a hotspot provider, you can be sure that your own network remains separate from the hotspot.

Flexible operation via LANCOM Management Cloud, modern web interface, or WLAN controller
Choose freely between operation via the LANCOM Management Cloud, WEBconfig, or a WLAN controller! In cloud operation, the LANCOM LX-6212 becomes part of a user-friendly, holistic, and automated network management system. Even in stand-alone operation, the LX-6212 offers fast configuration and comprehensive management and monitoring thanks to the intuitive, clear web interface of the new WEBconfig. As a third option, management can also take place centrally via a WLAN controller.

Holistic, automated Wi-Fi optimization with LANCOM Active Radio Control 2.0
Scanning, analyzing, and optimizing – that is all it takes to make your Wi-Fi more efficient, even at sites with data-intensive applications, high user densities, or interfering third-party external networks. The automation solution LANCOM Active Radio Control 2.0 (ARC 2.0) does exactly that job for you! Even under complex conditions, you get a holistic, self-learning optimization of your Wi-Fi installation with improved channel distribution, channel bandwidth utilization, and transmission power. ARC 2.0 can also prioritize access points that are managed via the LANCOM Management Cloud according to their usage in order to provide capacity exactly where it is needed based on real usage behavior. This saves your IT administrators manual work and gets the best out of your Wi-Fi installation!

Features
2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1775 Mbit/s
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x
Cabling technology: 10/100/1000Base-T(X)
MIMO: Yes
MIMO type: Multi User MIMO
Wi-Fi roaming: Yes
Fast roaming: Yes
VLAN support: Yes
Number of VLAN IDs: 4096
Band steering: Yes
Security
Security algorithms: EAP-TLS, EAP-TTLS, WEP, WPA2-Enterprise, WPA3-Enterprise
Service Set Identifier (SSID) features: Multiple SSIDs
Guest access: Yes
IGMP snooping: Yes
Protocols
Supported protocols: IPv4, IPv6
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
DC-in jack: Yes
Power
Power over Ethernet (PoE): Yes
DC voltage range: 12 V
Power consumption (max): 15 W
Design
Placement: Ceiling, Table, Wall
Product colour: White
LED indicators: Yes
Antenna
Antenna type: External
Antennas quantity: 4
Weight & dimensions
Width: 205 mm
Depth: 205 mm
Height: 42 mm
Packaging data
Package width: 288 mm
Package depth: 385 mm
Package height: 94 mm
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): 0 - 40 °C
Logistics data
Customs product code (TARIC): 85176200
Country of origin: Germany
