ACCESS POINTS

The New Slimline Business WiFi 6
AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment

Seamless Roaming
Uninterrupted streaming when moving between APs

Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

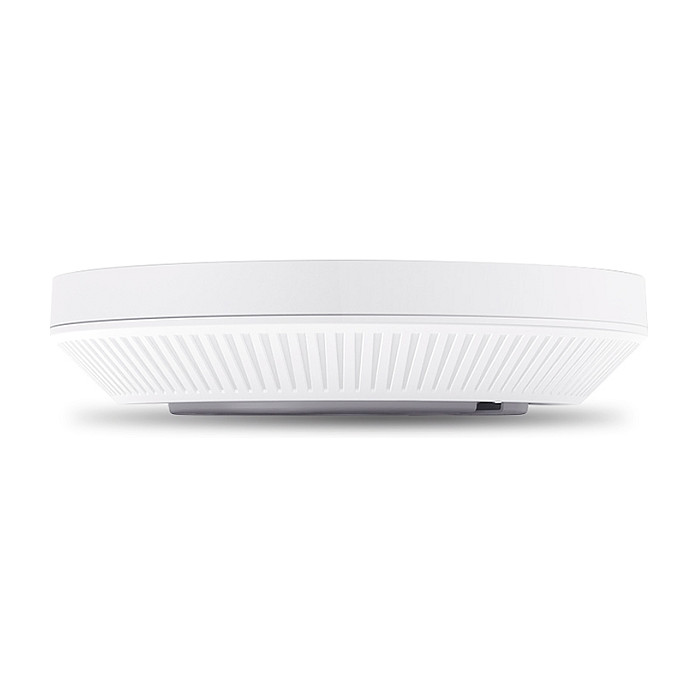

Ultra-Slim Design Brings More Agility

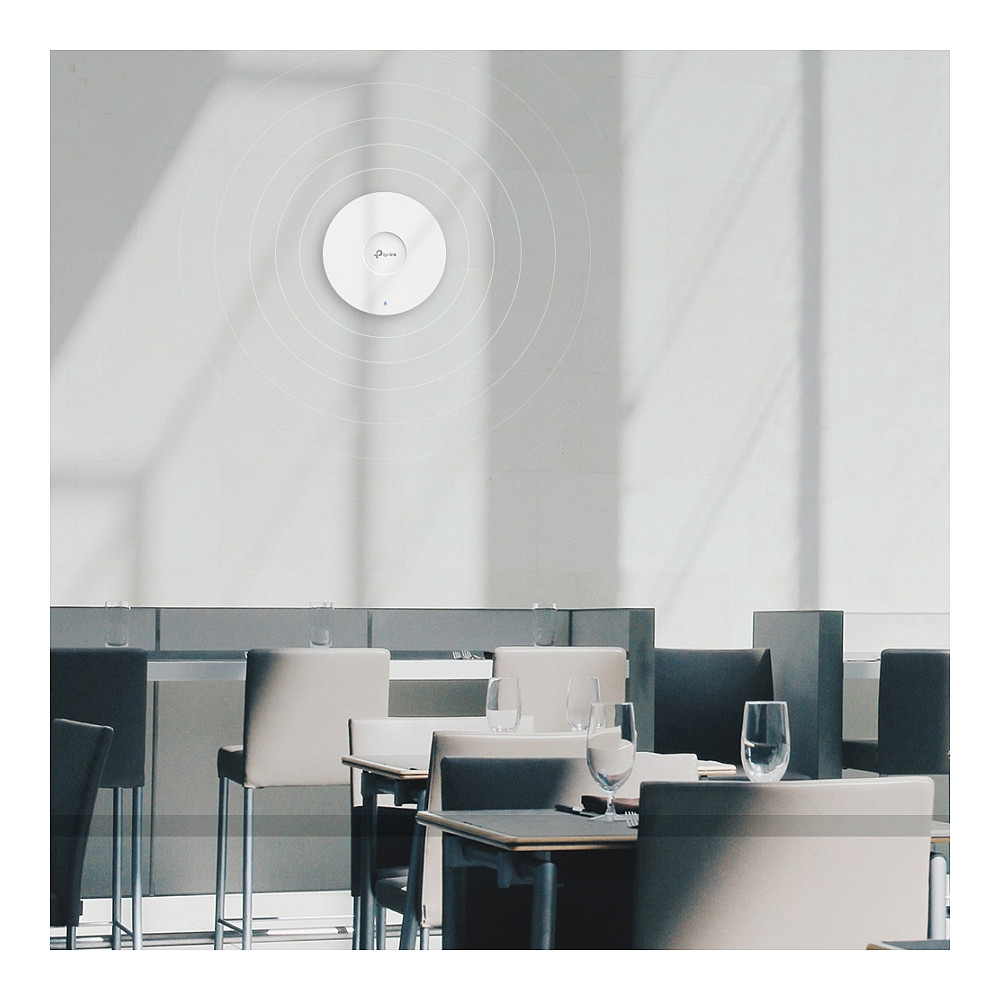

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.

Features
2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 2976 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Number of users: 250 user(s)
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Fit AP mode features: Mesh networking
VLAN support: Yes
Rate limiting: Yes
Flow control support: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
BeamForming: Yes
Transmitting power (CE): <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)
Transmitting power (FCC): <25 dBm (2.4 GHz) <25 dBm (5 GHz)
Security
Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filtering: Yes
Access Control List (ACL): Yes
Management features
Web-based management: Yes
Syslog: Yes
Firmware upgradeable: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Power
Power over Ethernet (PoE): Yes
DC voltage range: 12 V
Design
Placement: Ceiling, Wall
Product colour: White
Reset button: Yes
LED indicators: Yes
Antenna
Antenna type: Internal
Certificates
Certification: CE, FCC, RoHS
Weight & dimensions
Width: 160 mm
Depth: 160 mm
Height: 33.6 mm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
