UNSTOPPABLE PERFORMANCE FOR STANDARD RANGE 1D/2D BARCODE CAPTURE

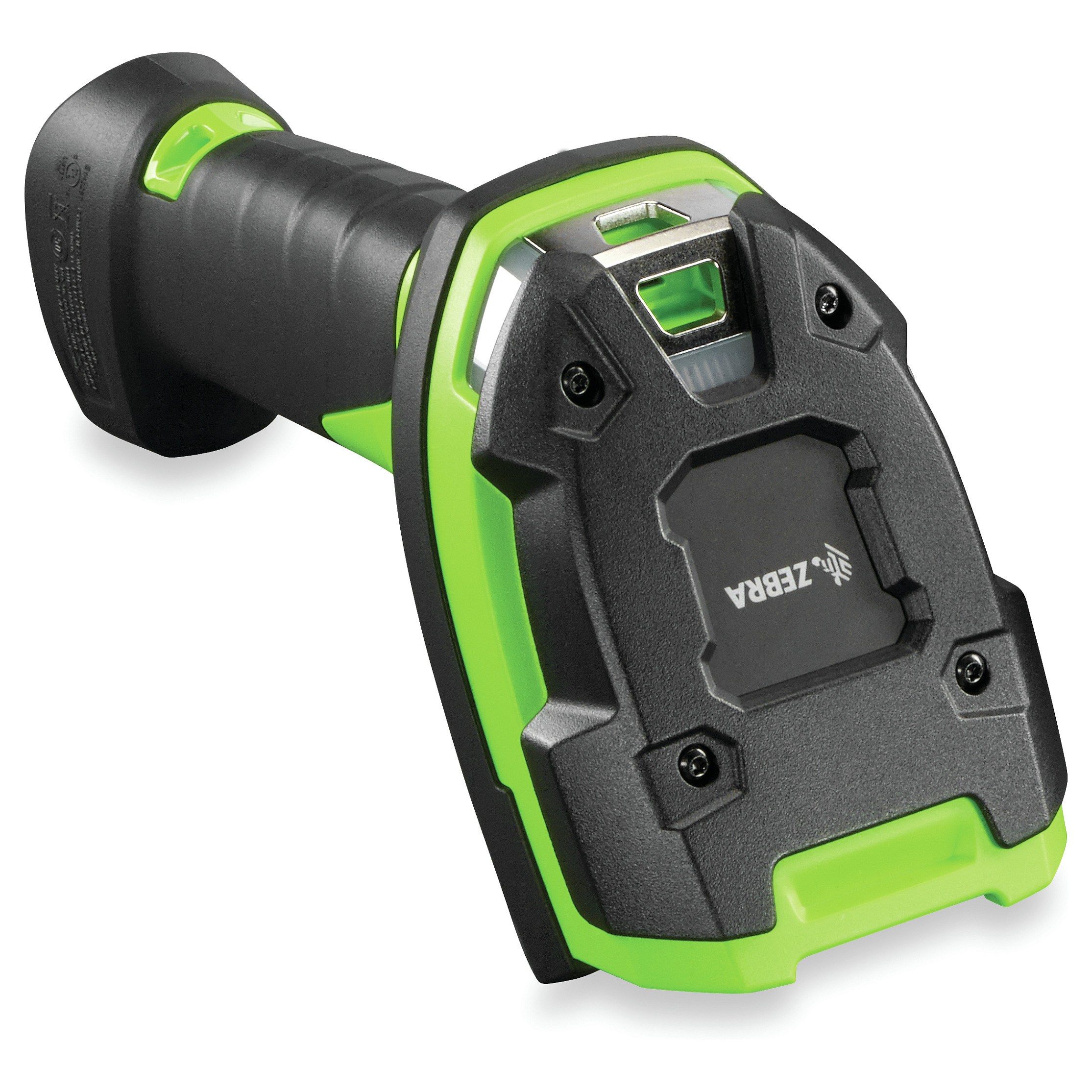

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it’s easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets — and the cost of unplanned downtime on the production line is astronomical. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Scanning
Type: Handheld bar code reader
Optical sensor resolution: 1280 pixels
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported: Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength: 610 nm
Tilt reading angle: -65 - 65°
Pitch reading angle: -65 - 65°
Yaw reading angle: -45 - 45°
Ports & interfaces
Connectivity technology: Wired & Wireless
Standard interfaces: RS-232, USB, Keyboard wedge
Wireless range: 100 m
Bluetooth version: 4.0
Bluetooth Low Energy (BLE): Yes
Ethernet LAN: Yes
Performance
International Protection (IP) code: IP67
Protection features: Dust resistant, Shock resistant, Water resistant
LED indicators: Yes
Product colour: Black, Green
Programming function: Yes
Power
Power source type: Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 3100 mAh
Number of reads per charge: 100000
Weight & dimensions
Width: 142 mm
Depth: 76 mm
Height: 185 mm
Weight: 407 g
Packaging data
Cables included: USB
Charging base: No
Stand included: No
Operational conditions
Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84716070
