STARTECH.COM 2 Port Serielle Schnittstellenkarte PCIe with 16950 UART - Serial Adapter - 921, 4 Kbps - Windows and Linux | NETWORK PCI CARDS

STARTECH.COM 2 Port Serielle Schnittstellenkarte PCIe with 16950 UART - Serial Adapter - 921, 4 Kbps - Windows and Linux

Κωδικός: 25933822 // Κωδικός προμηθευτή: PEX2S953LP // EAN: 0065030881166

Νέο προϊόν

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux - TAA, Mini PCI Express, Serial, PCIe 1.1, RS-232, 222366 h, CE, FCC

€74,85 (συμπ. ΦΠΑ)

Διαθέσιμο από 3-8 εργάσιμες ημέρες (31 τεμάχια διαθέσιμα)

Προσθήκη στη wishlist

Παρόμοιο προϊόν

Νέο προϊόν

2 Port PCI Express serielle Schnittstellenkarte - 16950 UART - 256-Byte-FIFO-Cache - Adapter Card

Κωδικός: 26098522

€74,85

Διαθέσιμο από 3-8 εργάσιμες ημέρες

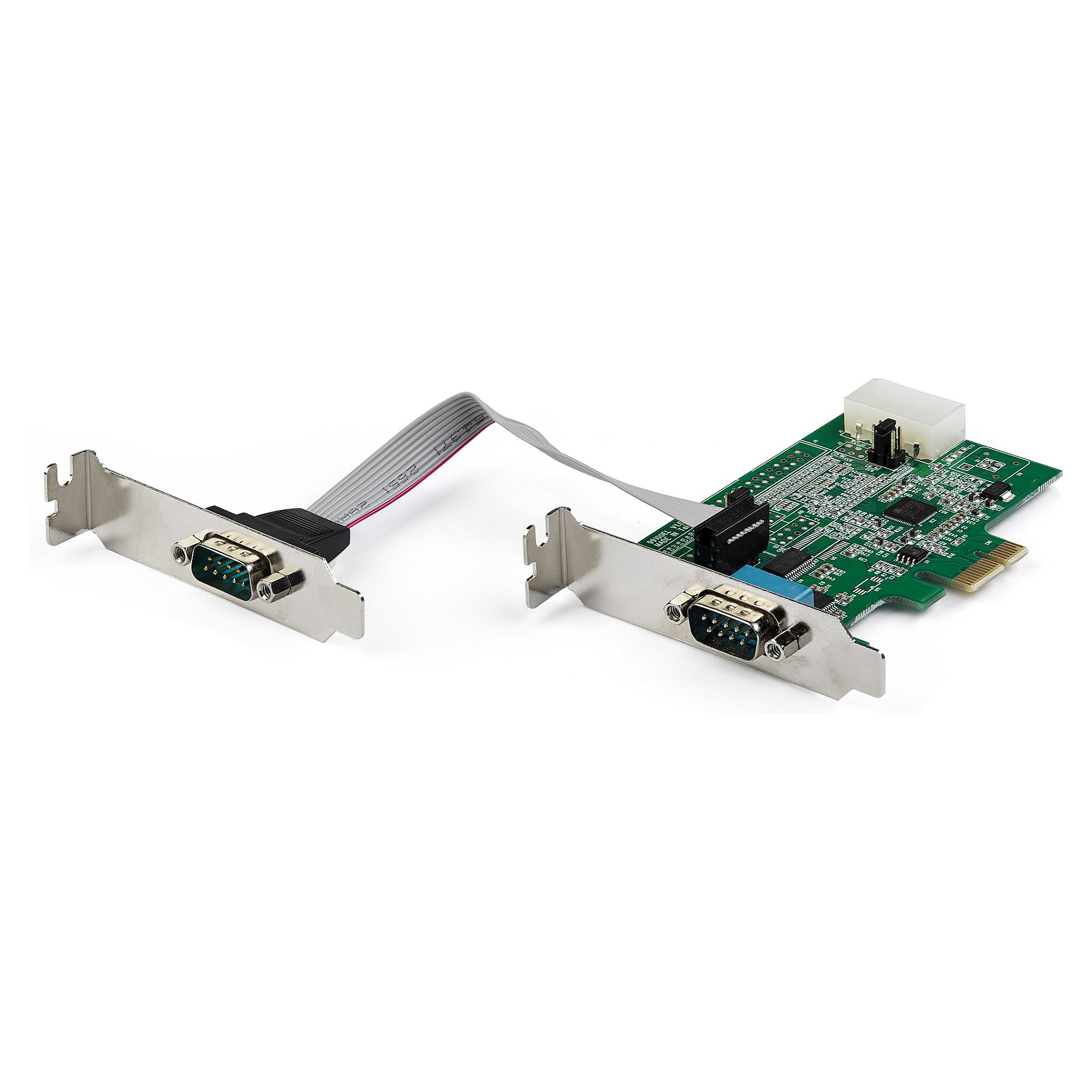

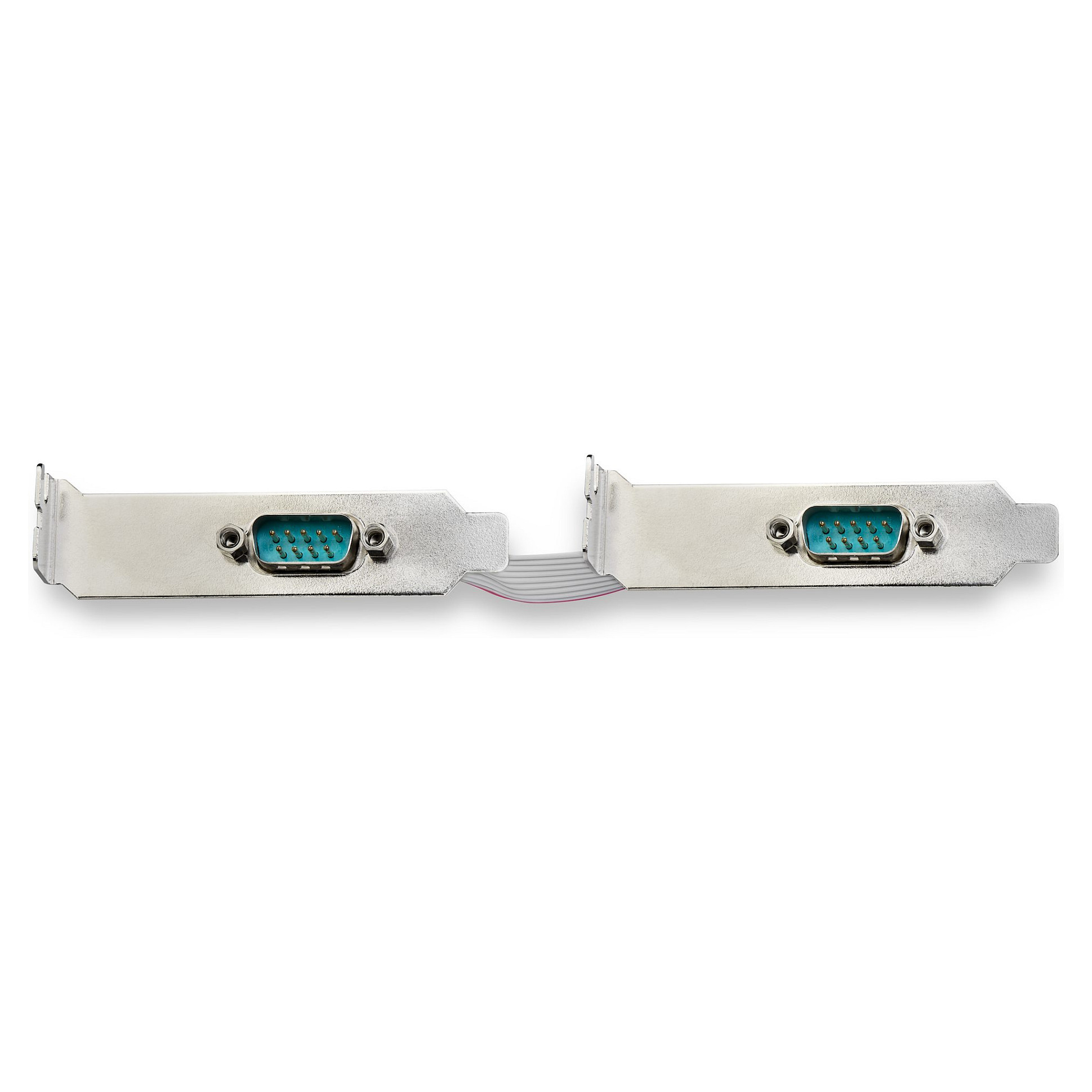

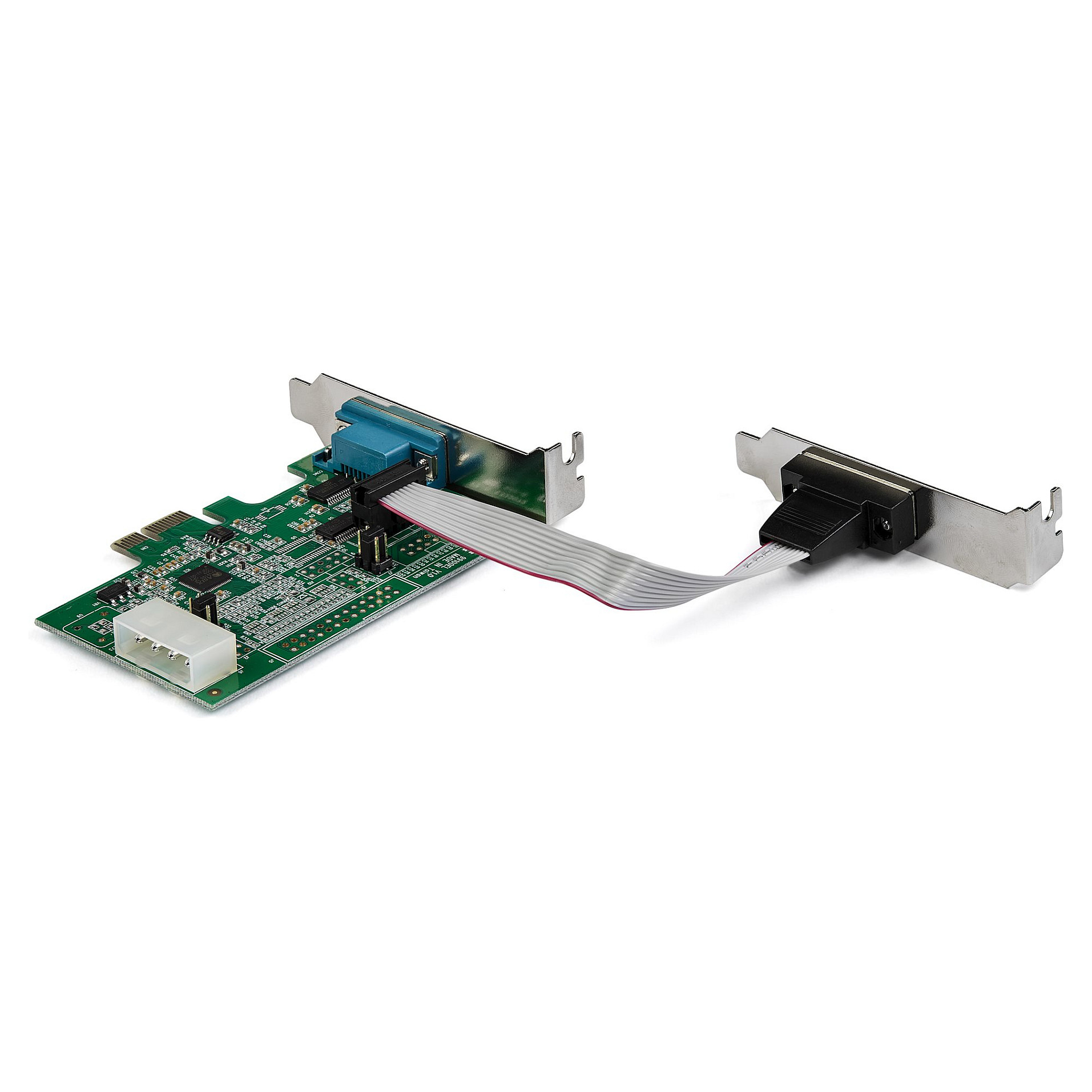

PCI Express to Serial Adapter | 921. 4Kbps | Windows® and Linux® Compatible. This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices. including for Windows and Linux. this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket. and includes an optional full-profile bracket. so installation is easy regardless of the case form factor. Experience Optimal Technology. This PCIe to serial adapter supports the following features:. • Compatible with industry standard 16950 UART. • Supports max baud rate of up-to 921. • Provides 5/12V power output on Pin 9 when external power is connected. • 256-byte depth FIFO per transmitter and receiver. PEX2S953LP is backed by a StarTech. com lifetime warranty and free lifetime technical support. Peripheral (Molex) power connectors (4-pin): 1. Windows 10 Enterprise x64. Windows 10 IoT Enterprise. Windows 7 Home Premium x64. Windows 7 Professional x64.

Host interface: Mini PCI Express
Output interface: Serial
Expansion card standard: PCIe 1.1
Serial ports quantity: 2
Serial interface type: RS-232
Peripheral (Molex) power connectors (4-pin): 1
Internal: Yes
Mean time between failures (MTBF): 222366 h
Certification: CE, FCC
Chipset: Asix AX99100
Baud rate: 921.6 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: No, RTS/CTS, XON/XOFF
Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -20 - 100 °C
Operating relative humidity (H-H): 5 - 85%
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Compliance certificates: RoHS
Width: 67 mm
Depth: 98 mm
