POWER SUPPLY (PSU)

The PL650D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

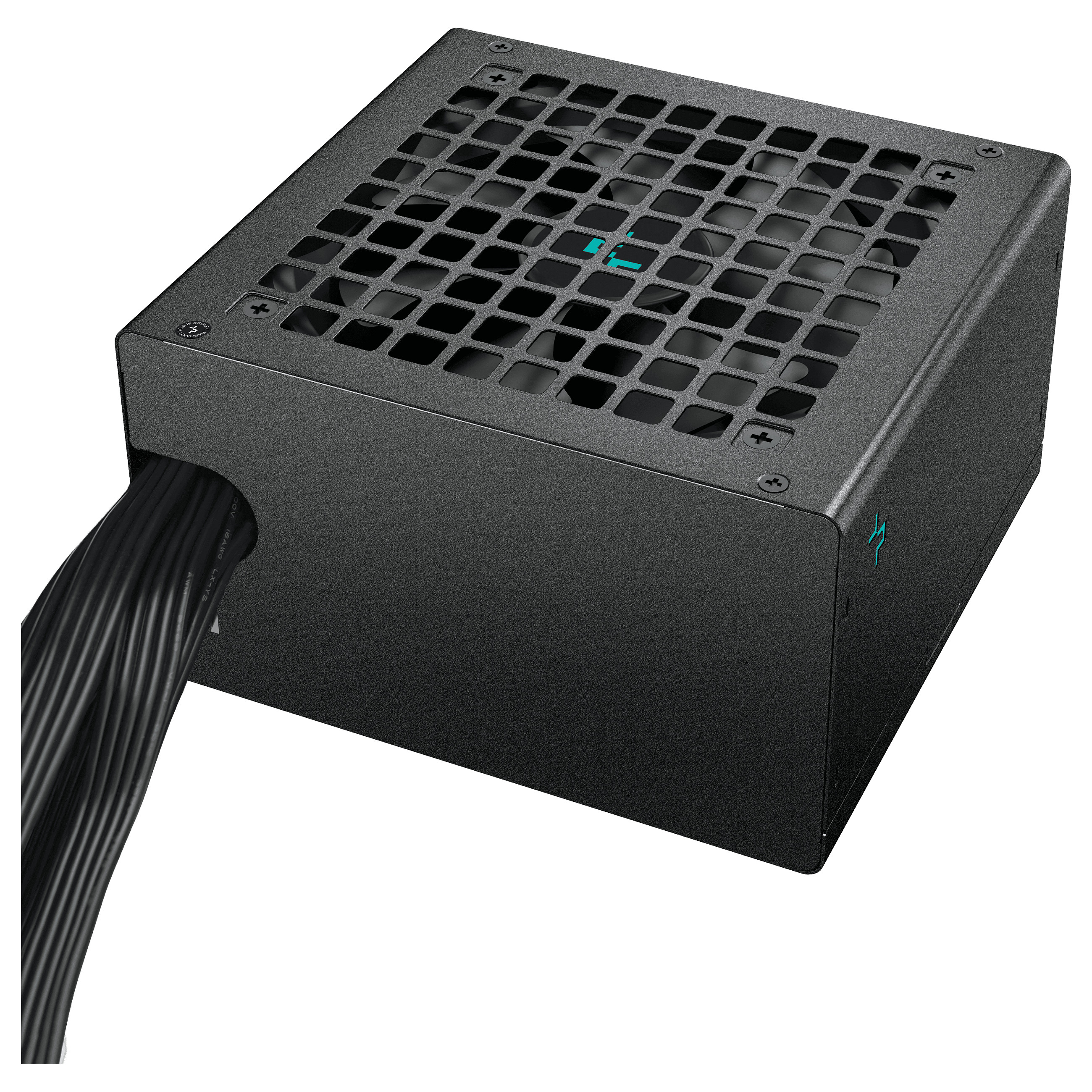

PL650D
Native ATX3.0 Power Supply

NATIVE ATX3.0
Based on INTEL's latest ATX3.0 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.

PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

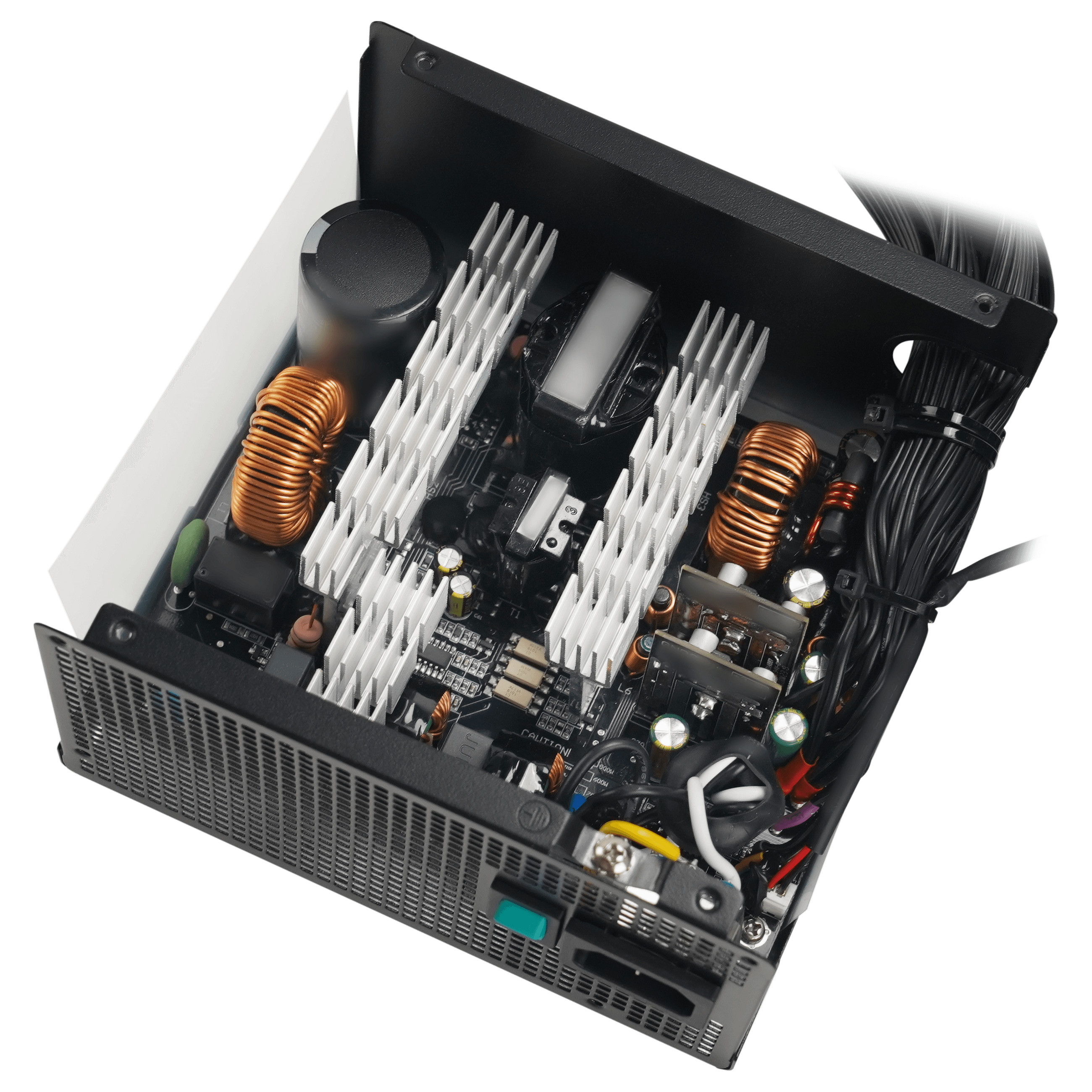

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).

PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.

EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.

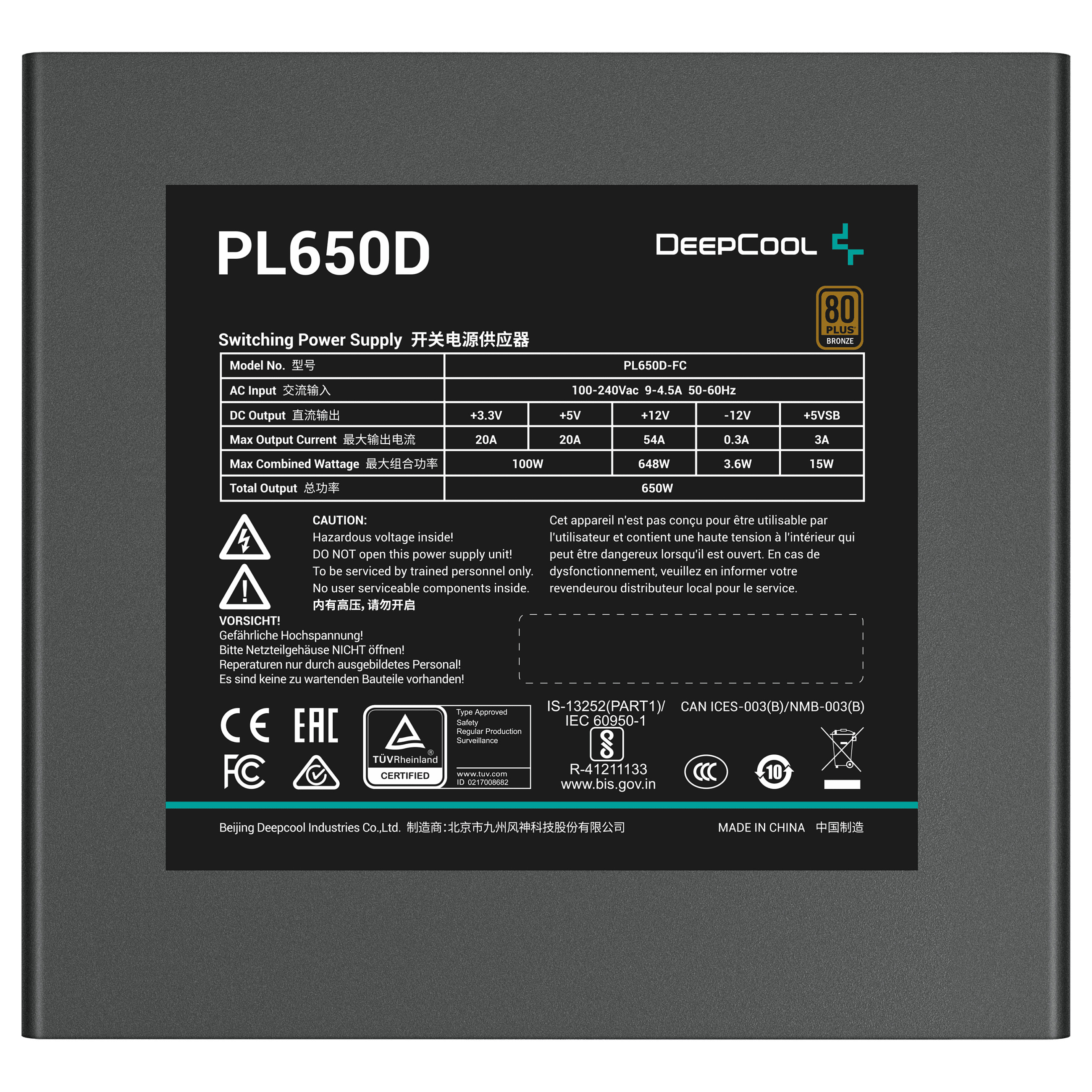

Power
Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 9 - 4.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 85%
Power Good signal delay range: 100 - 150 ms
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 550,450,650 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: HYB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Compliance certificates: RoHS, WEEE
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Sustainability compliance: Yes
Sustainability certificates: ErP, Triman
Logistics data
Country of origin: China
