KVM SWITCH

Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers

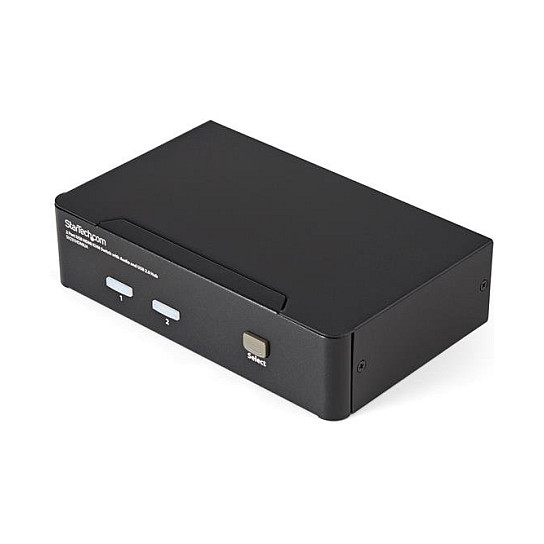

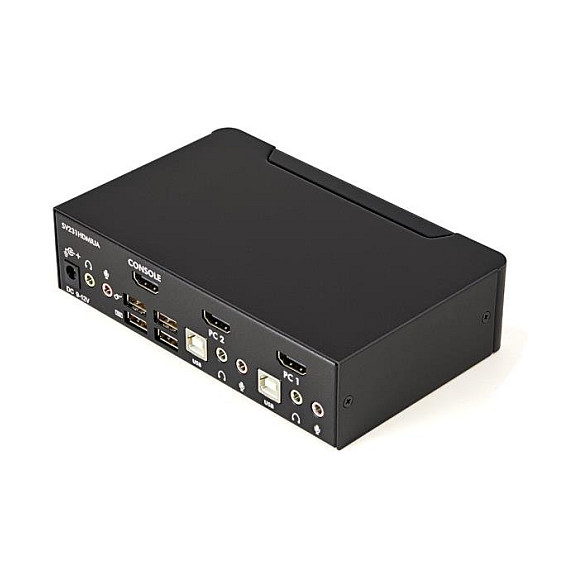

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The StarTech.com Advantage


Ports & interfaces
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI

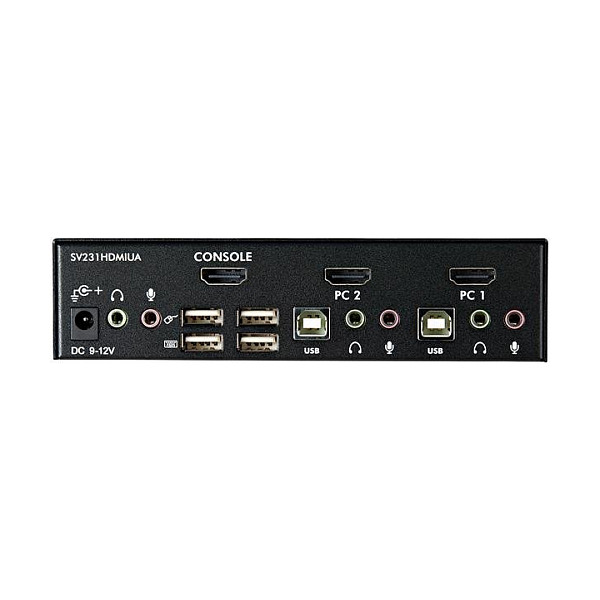

Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity: 4
Headphone outputs: 3
Number of microphone inputs: 3
Performance
HD type: Full HD
Maximum resolution: 1920 x 1200 pixels
Daisy chain: No
Design
Rack mounting: No
Product colour: Black
Mean time between failures (MTBF): 126813 h
Certification: R0HS
Display
On Screen Display (OSD): No
Power
Input voltage: 100 - 240, 12 V
Input current: 0.8 A
Output current: 1.5 A
Power consumption (typical): 18 W
Power plug type: Type M
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
Width: 125 mm
Depth: 70 mm
Height: 40 mm
Weight: 634 g
Packaging data
Package width: 188 mm
Package depth: 250 mm
Package height: 100 mm
Package weight: 1.1 kg
Packaging content
Manual: Yes
AC adapter included: Yes
Rubber feet: Yes
Other features
Connectivity technology: Wired
I/O ports: 1x HDMI (F)4x USB A (F)6x 3.5mm (F)2x USB B (F)2x mini-HDMI (F)
Dimensions (WxDxH): 124.8 x 70 x 40 mm
Ports quantity: 2
Power requirements: AC 110 - 240 V
Logistics data
Harmonized System (HS) code: 85176200
