The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing

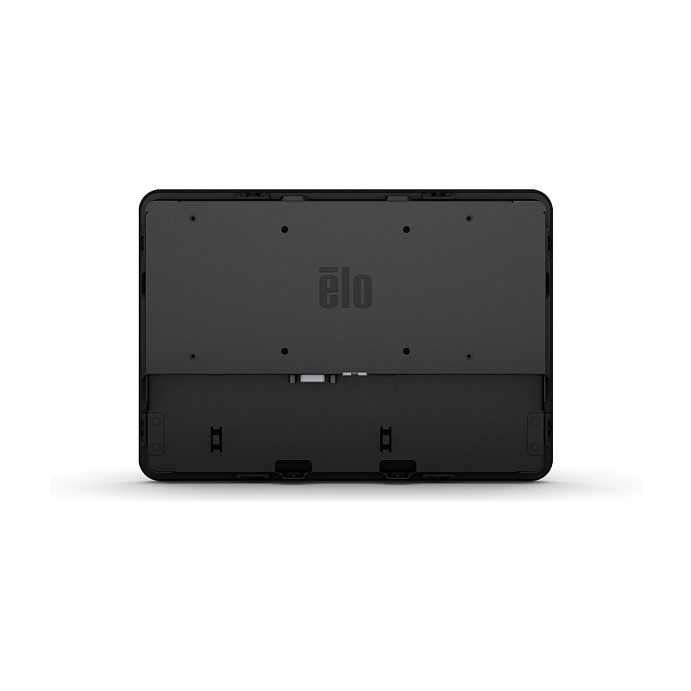

- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces

Display
Panel type: TFT
Display diagonal: 25.6 cm (10.1")
Display technology: LCD
Display resolution: 1280 x 800 pixels
Display brightness: 350 cd/m²
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Response time: 25 ms
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 170°
Display number of colours: 262144 colours
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 800
Ports & interfaces
HDMI ports quantity: 1
DisplayPorts quantity: 1
Design
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 75 x 75 mm
Performance
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 6.1 W
Power consumption (off): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Packaging data
Package width: 336 mm
Package depth: 175 mm
Package height: 262 mm
Package weight: 2.6 kg
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3658 m
Non-operating altitude: 3658 - 12192 m
Logistics data
Harmonized System (HS) code: 85285210
Features
Wall mountable: Yes
Other features
Aspect ratio: 16:10
Backlight type: LED
Digital horizontal frequency: 30 - 60 kHz
Digital vertical frequency: 50 - 75 Hz
Power consumption (PowerSave): 0.7 W
Display viewable area (HxV): 216.96 x 135.6 mm
Height (without stand): 178.5 mm
Weight (without stand): 1.2 kg
Depth (without stand): 36.9 mm
Power supply type: AC/DC
