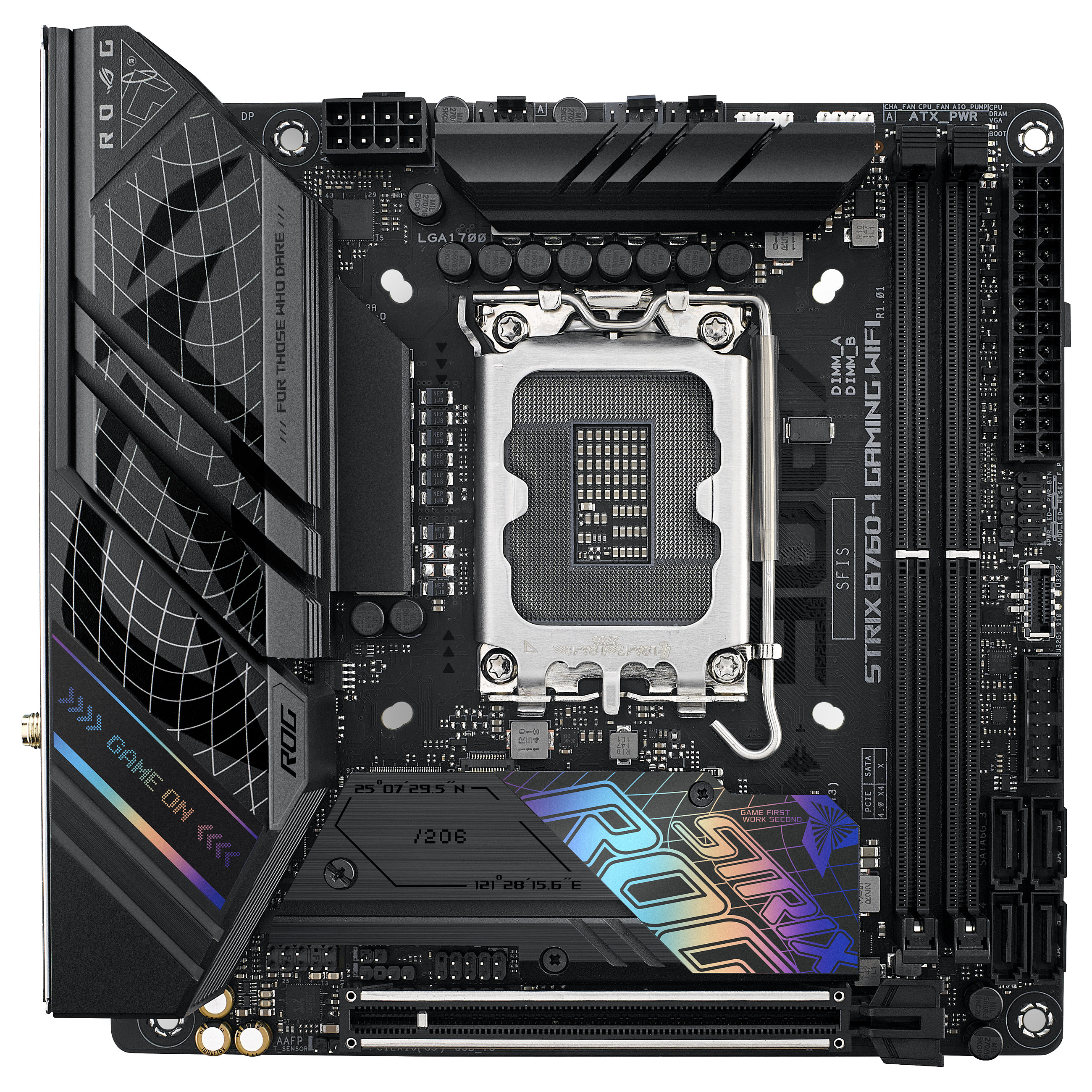

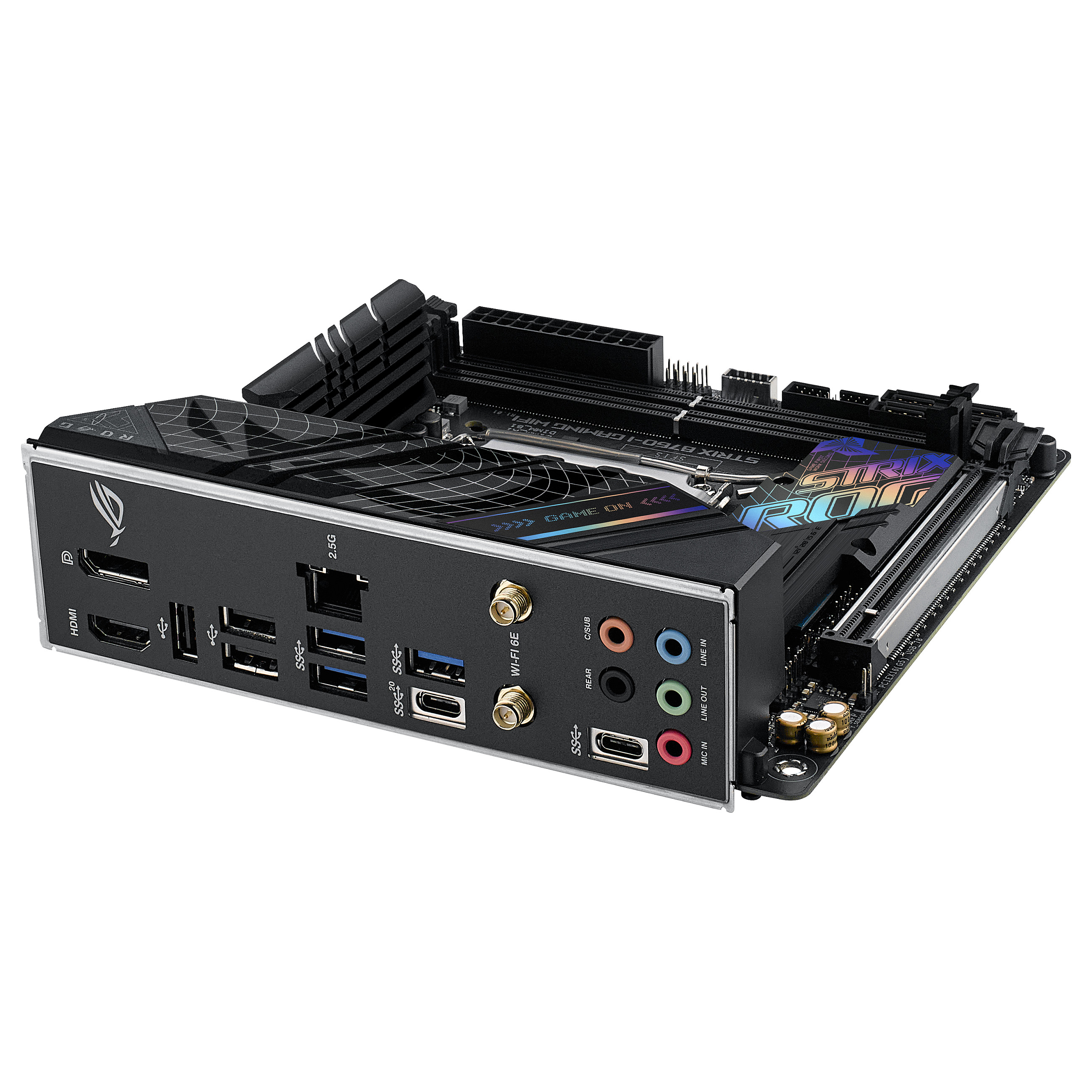

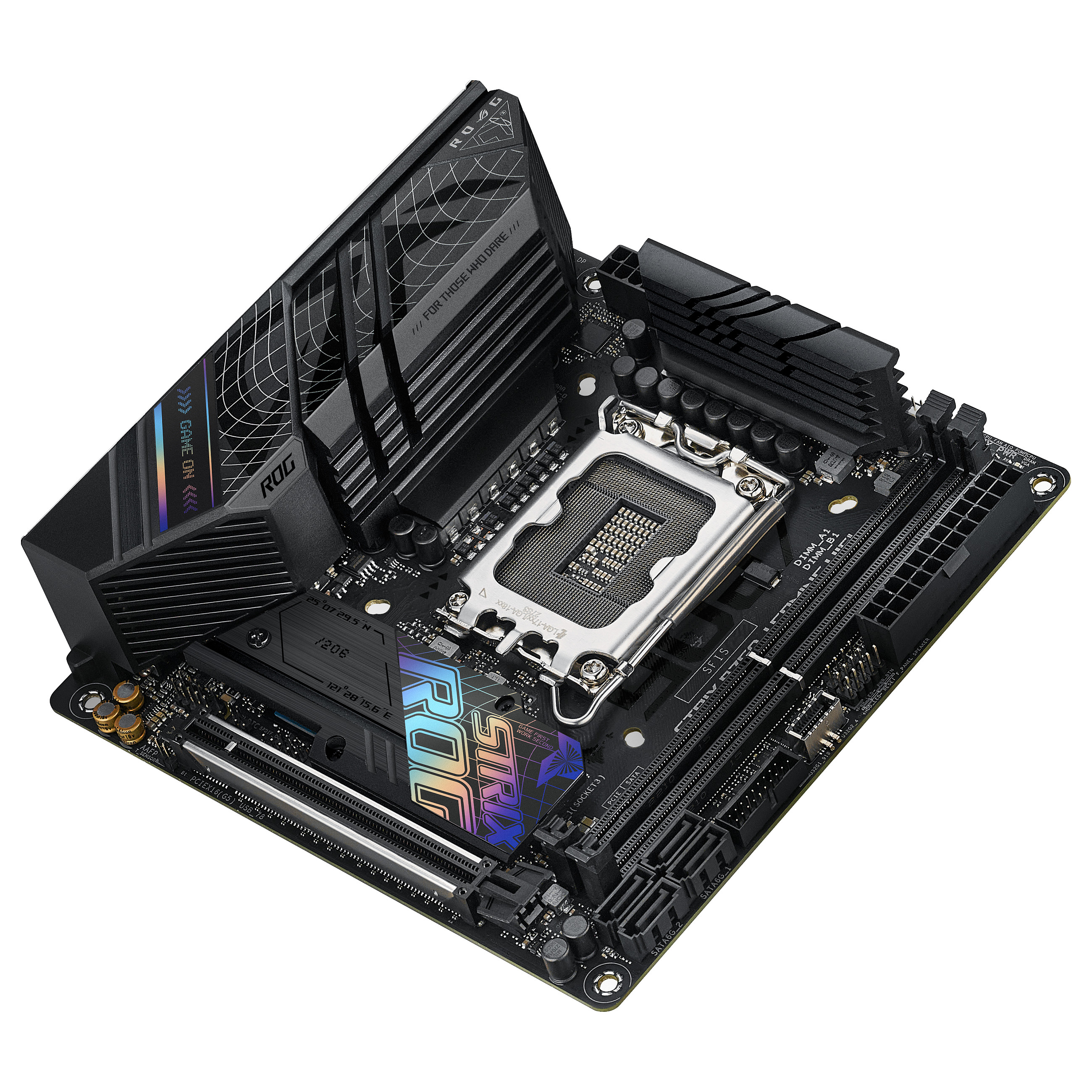

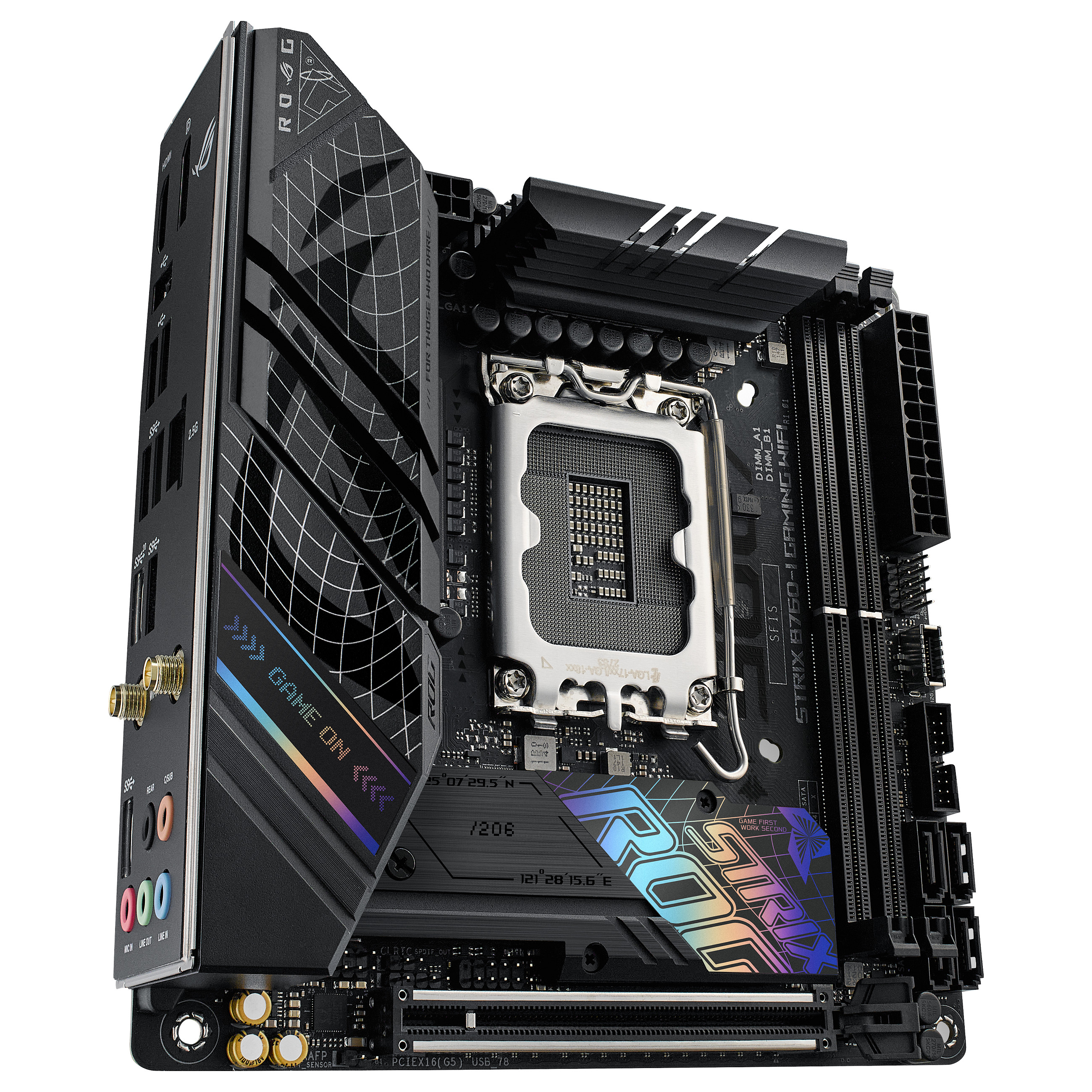

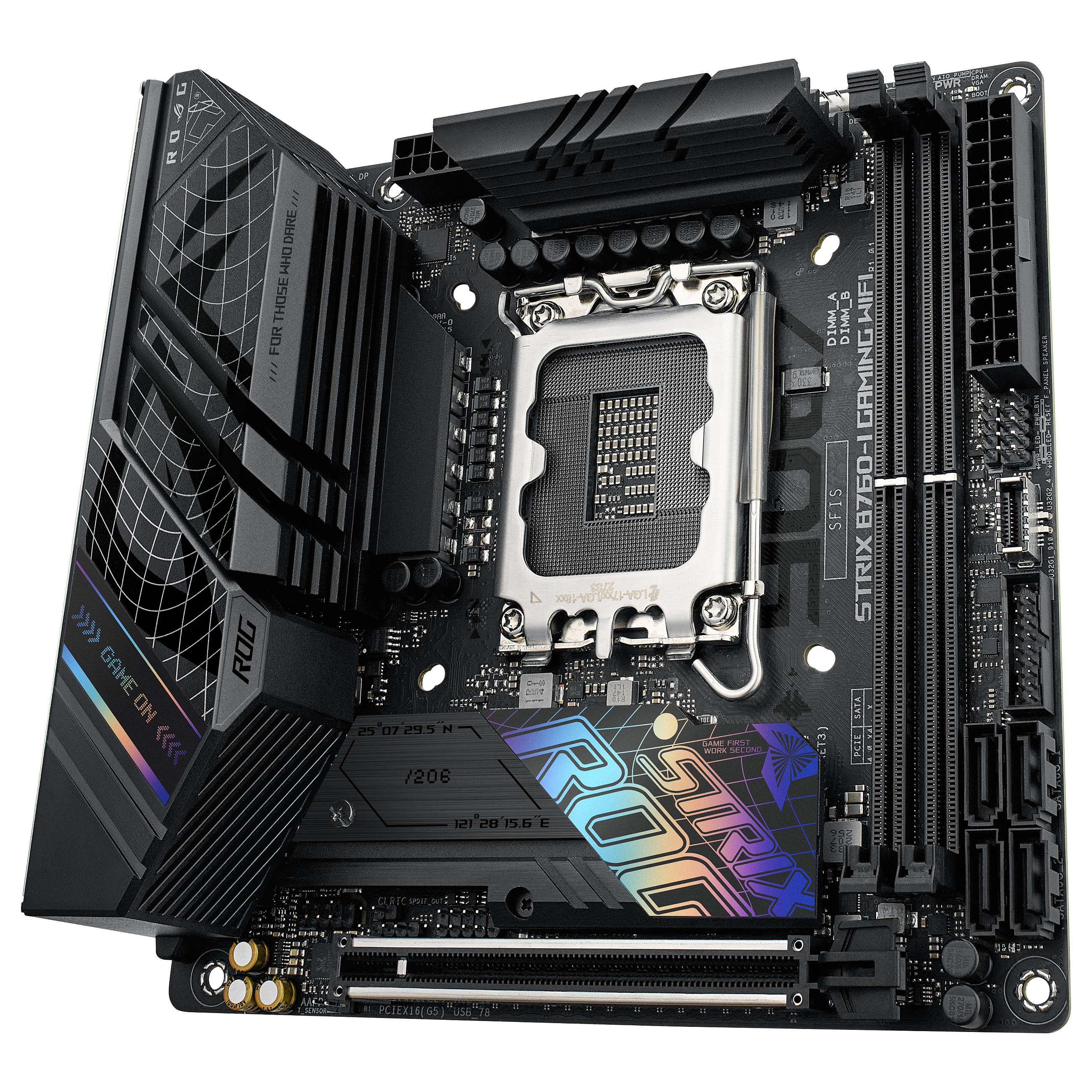

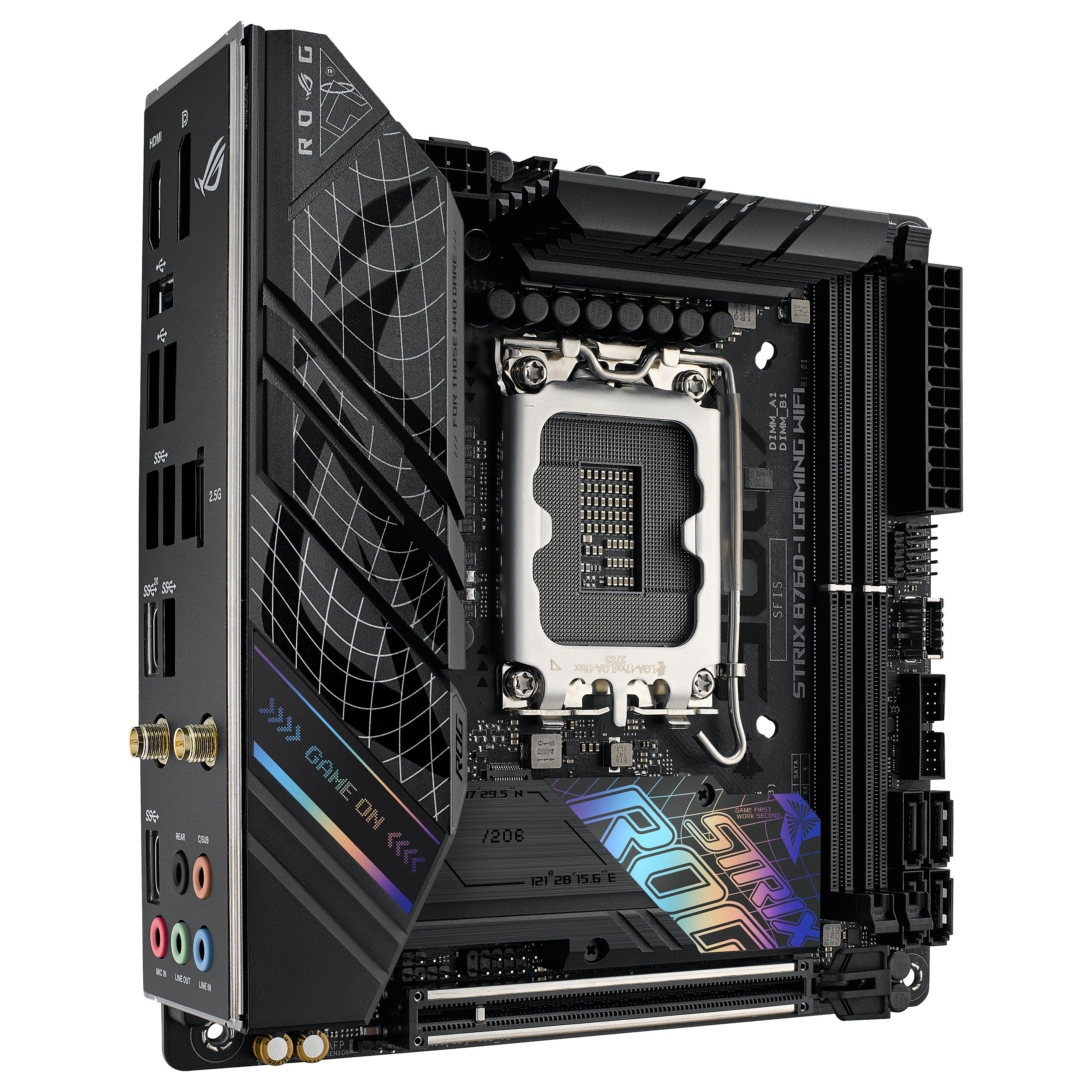

Asus ROG STRIX B760-I GAMING LGA 1700
Product code: 27304222 // MPN: 90MB1D90-M0EAY0 // EAN: 4711081997658
New entry
€271,90 (inc. VAT)
Available from 3 to 6 business days (9 pcs available)
Similar product
The Asus ROG STRIX B760-I GAMING LGA 1700 is a motherboard. It also offers socket LGA 1700 and 2 memory slots. Designed to deliver reliable performance and quality.
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
- Supported memory clock speed (max): 7600 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- EPS power connector (8-pin): Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 2.0 ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: Intel B760
- Audio chip: SupremeFX S1220A
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- Package width: 226 mm
- Package depth: 94 mm
- Package height: 185 mm
- Package weight: 1.28 kg
- Width: 170 mm
- Depth: 170 mm
- Height: 50 mm
- Cables included: SATA
- User guide: Yes
- Weight: 644 g
| Bluetooth Version: | 5.3 |
| Connection Type: | Wireless |
| CPU Brand: | Intel |
| Ethernet LAN Ports: | 1 |
| Memory Slots: | 2 |
| Processor Socket: | LGA 1700 |
22.600x18.500x9.400
