ΤΡΟΦΟΔΟΤΙΚΑ (PSU)

Supremo FM6 1000 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

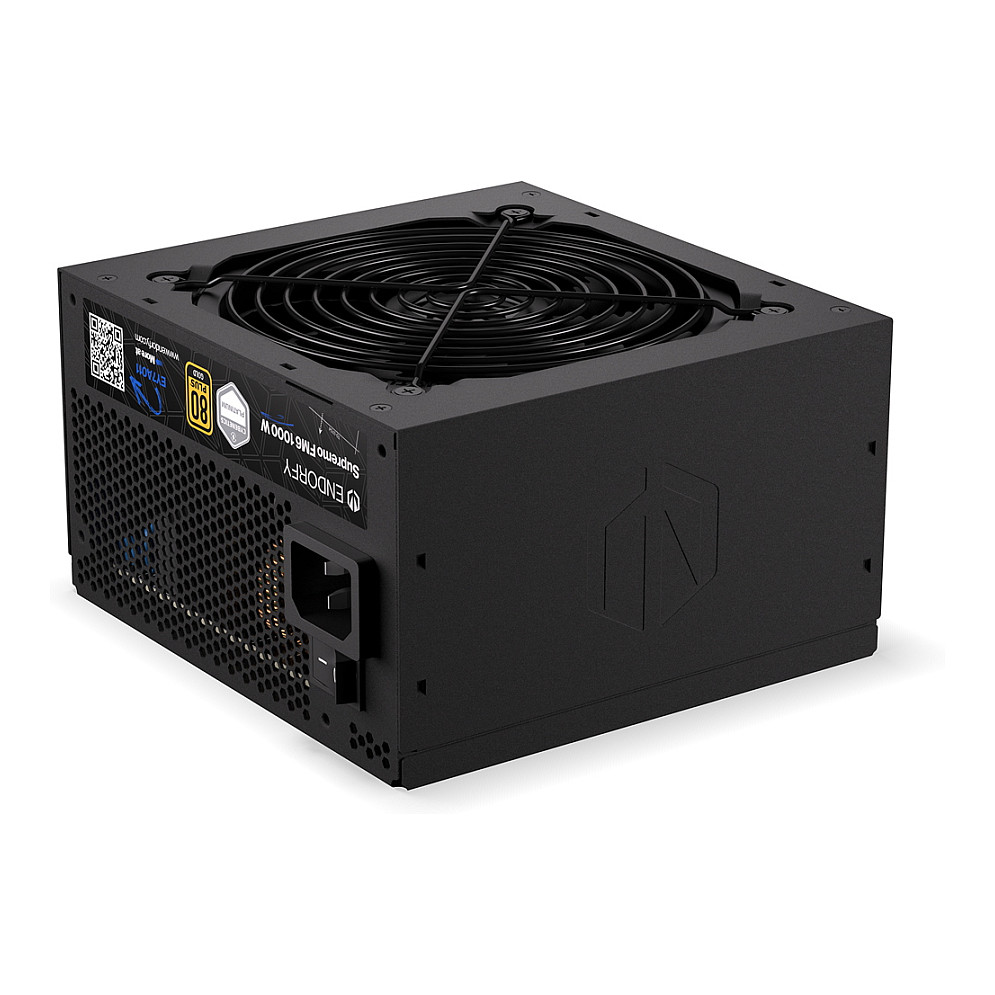

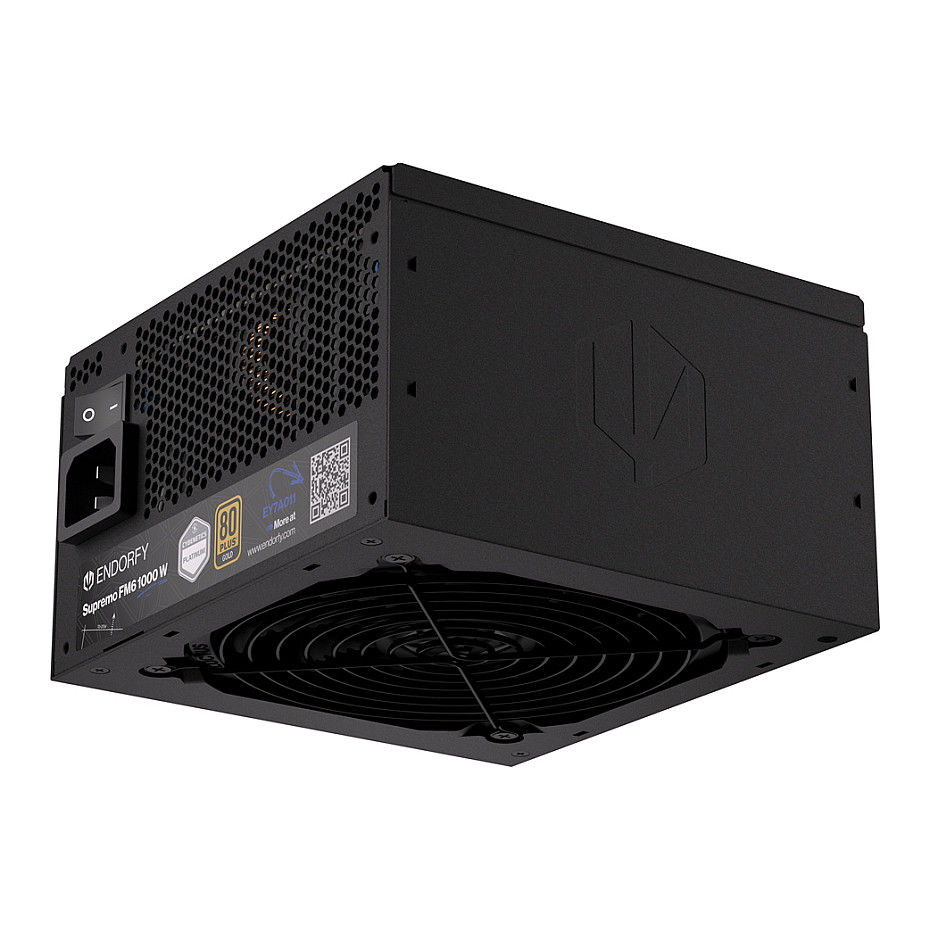

Supremo FM6 1000 W
Supremo FM6 1000 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 1000 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 1000 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 1000 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 1000 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

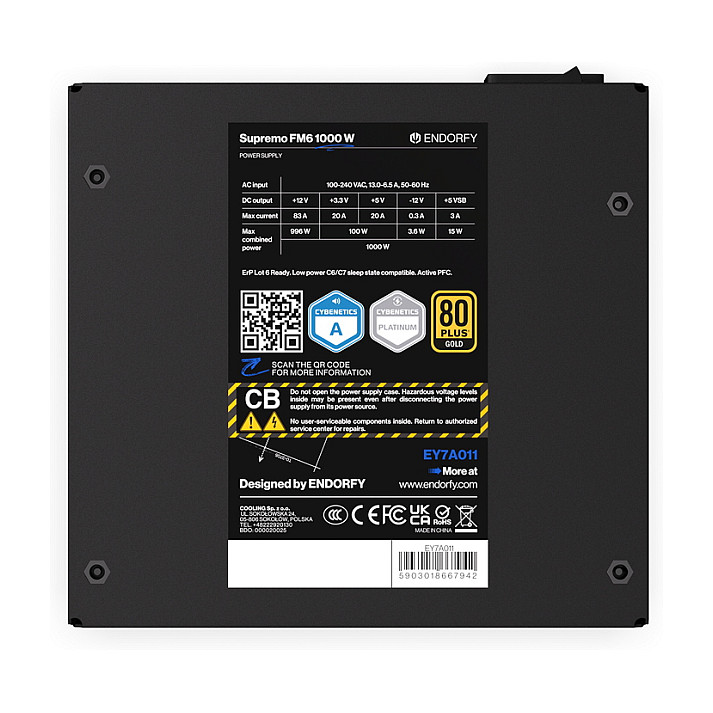

Power
Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 13 - 6.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 996 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A

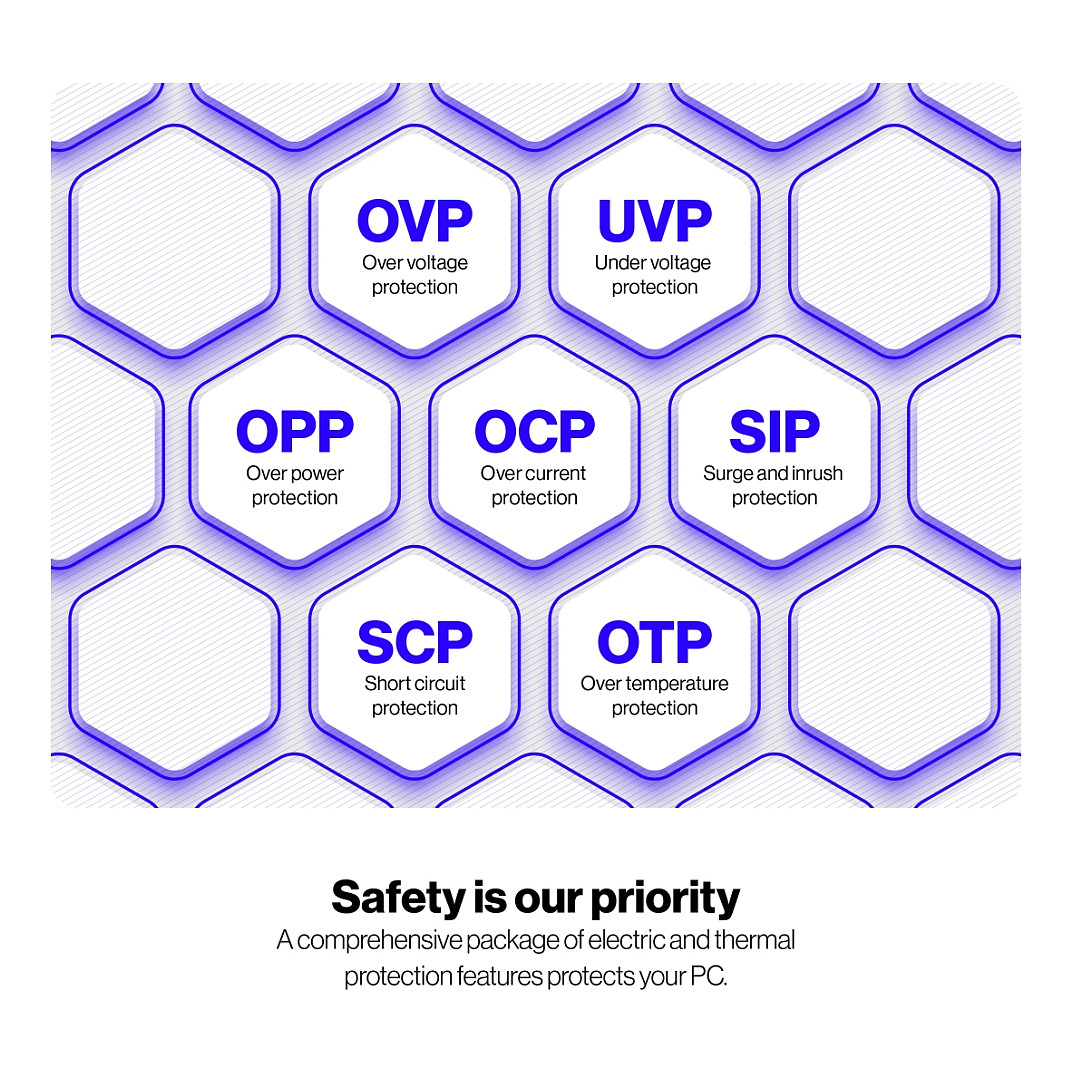

Power protection features: Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 560,720,880 mm
Number of SATA power cables: 3
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 880 mm
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12+4 pin): 1
PCI Express power cable length: 56 cm

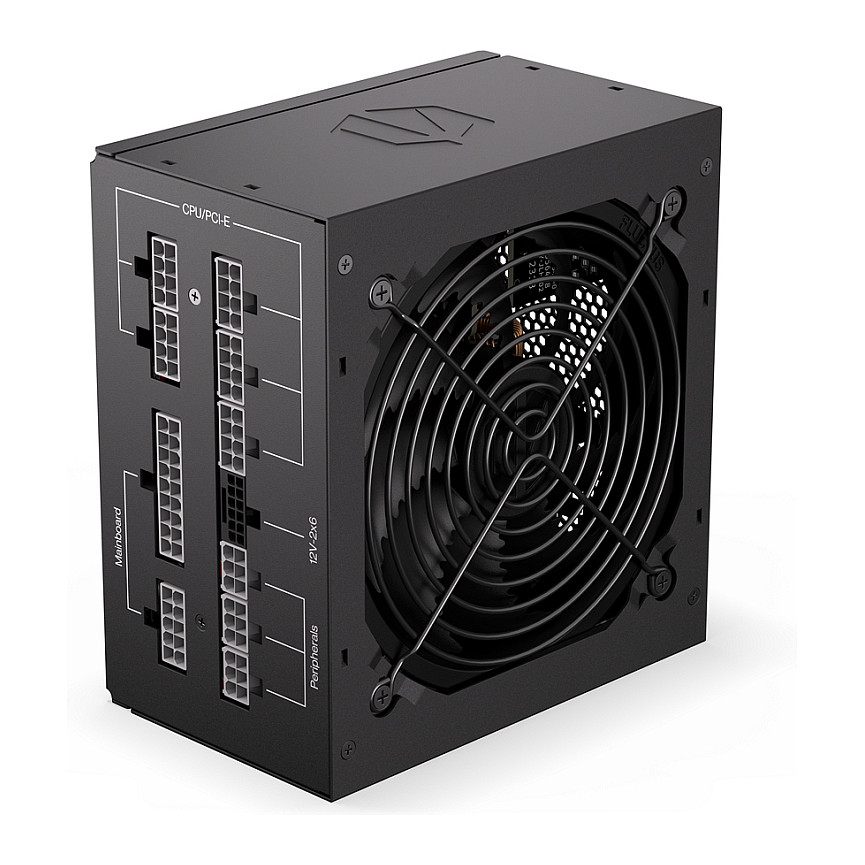

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Cybenetics certification: Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Illumination: No
LED indicators: No
On/off switch: Yes
On/off fan switch: No
Packaging content
Cables included: AC
Certificates
Compliance certificates: CB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 87 mm
Packaging data
Manual: Yes
Package width: 220 mm
Package depth: 270 mm
Package height: 95 mm
Package weight: 2.74 kg
Package type: Box
Technical details
Sustainability certificates: ErP
Doesn't contain: Cadmium, Lead, Mercury
Logistics data
Warranty period: 10 year(s)
