SERVERS

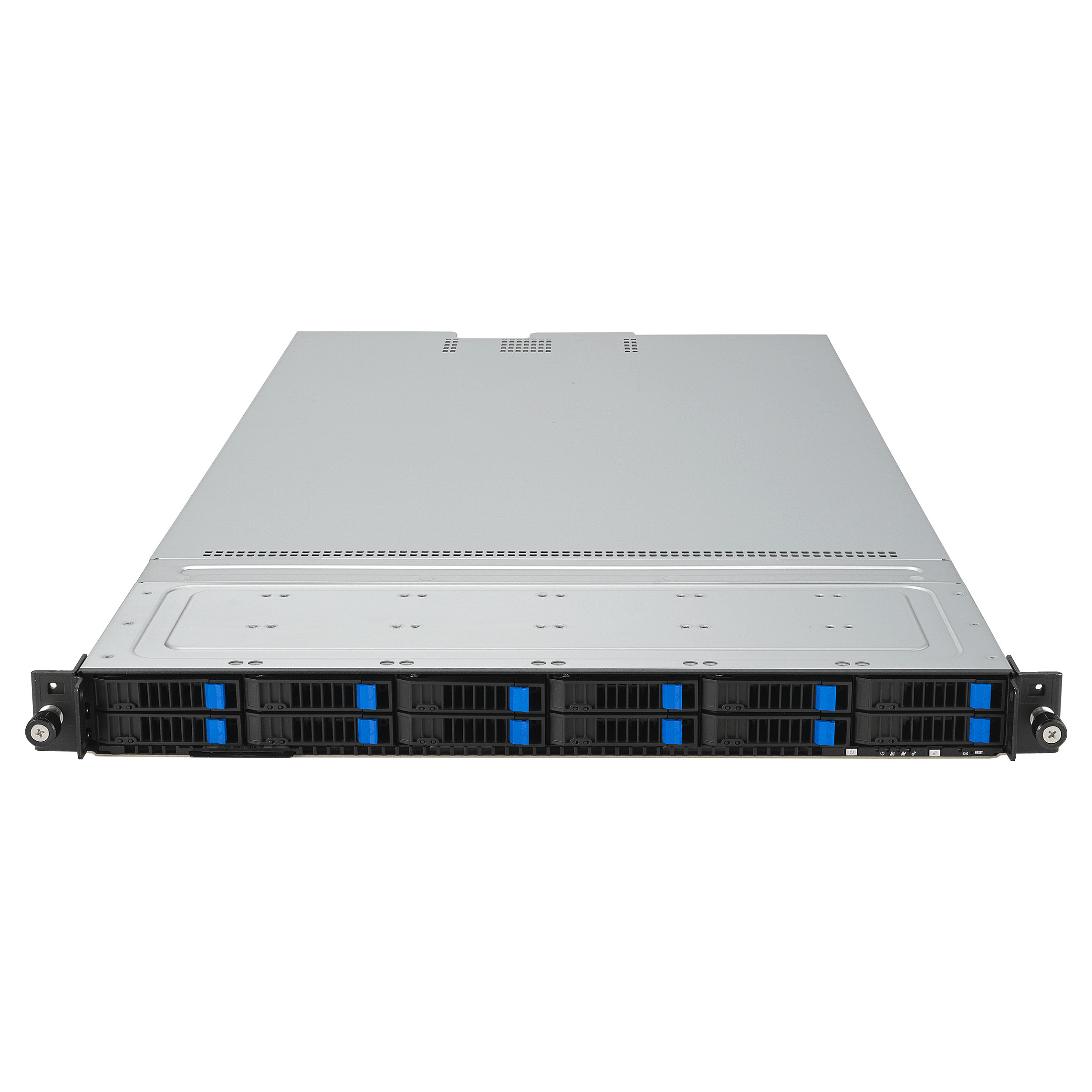

AMD EPYC™ 9005 single-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, two single-slot GPUs, and ASUS ASMB11-iKVM

Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data centers.

Processor
Built-in processor: No
Processor socket: LGA 6096
Processor manufacturer: AMD
Number of processors supported: 1
Memory
Number of DIMM slots: 24
Supported memory types: DDR5-SDRAM
Maximum internal memory: 3 TB
Supported RDIMM clock speeds: 6400,5600 MHz
Storage
Number of storage drives supported: 14
Hot-swap HDD bays: Yes
Number of 2.5" bays: 12
Storage drive sizes supported: M.2,2.5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
SSD form factor: M.2
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Expansion slots
PCI Express x8 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 2
Design
Chassis type: Rack (1U)
Product colour: Black, Silver
LED indicators: Yes
On/off switch: Yes
Power
Power supply: 1600 W
Redundant power supply (RPS) support: Yes
Number of redundant power supplies supported: 2
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 842.5 mm
Depth: 449 mm
Height: 43.9 mm
Weight: 14.2 kg
Packaging data
Package weight: 19.2 kg
