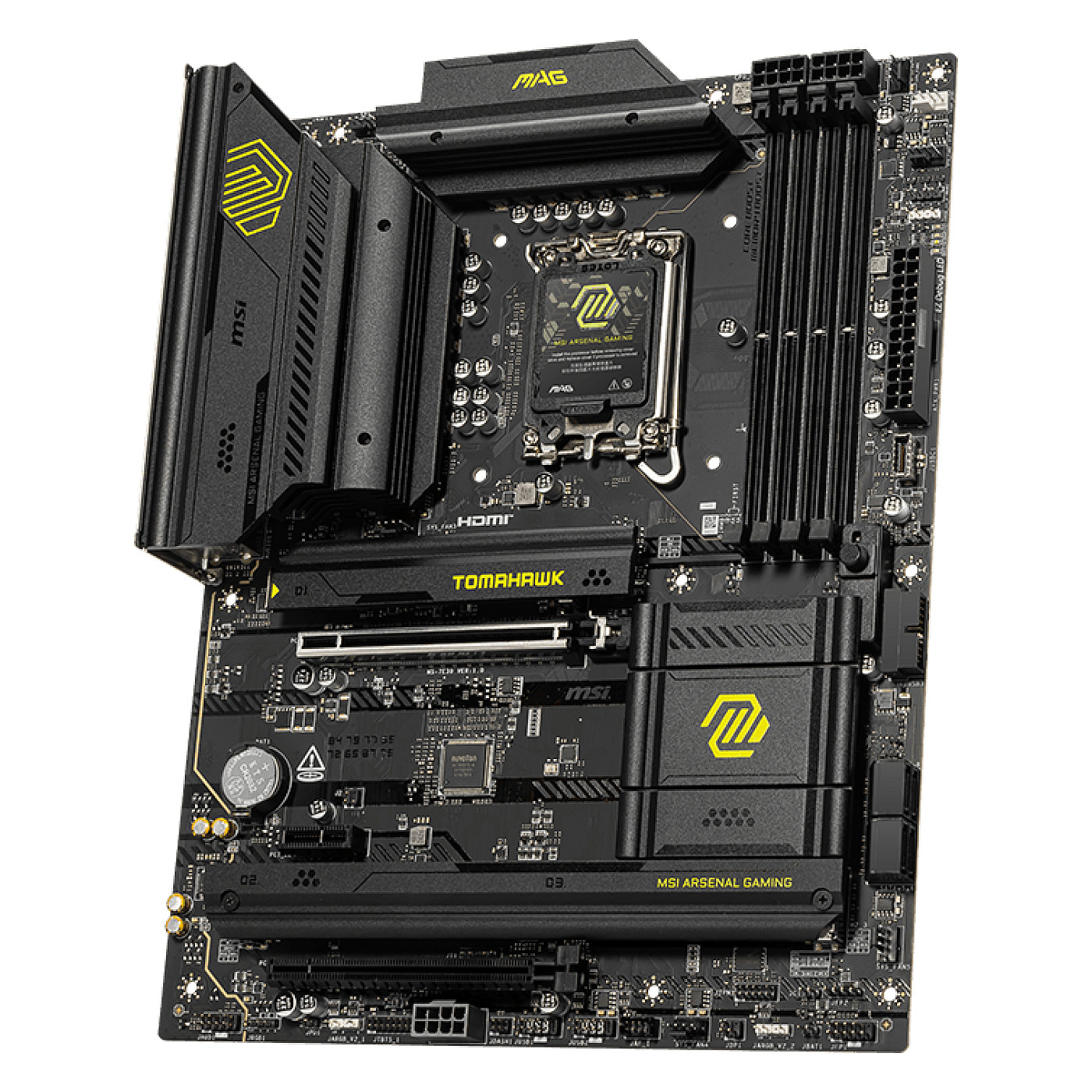

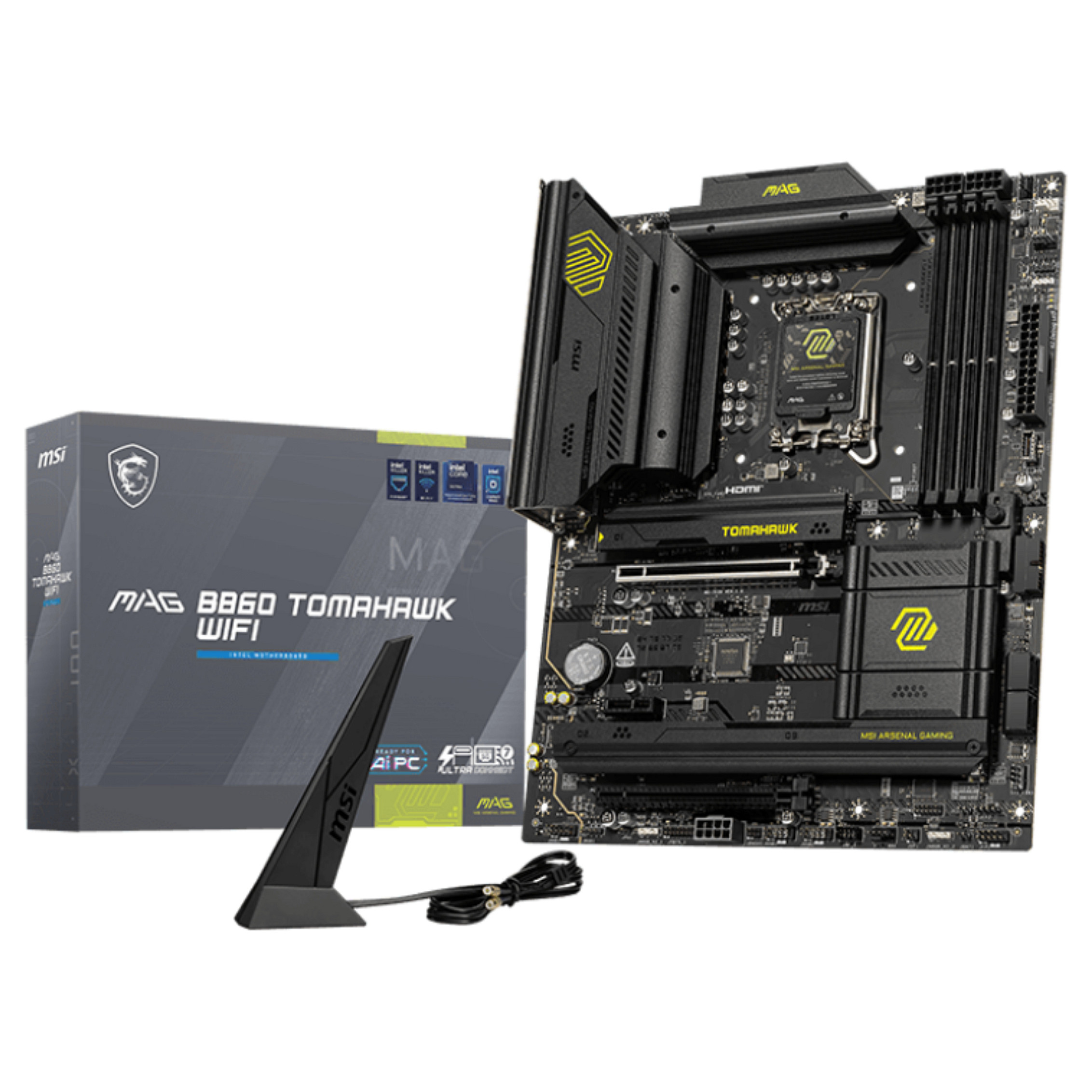

MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.



Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 5600,6400,7200,9200 MHz
Supported memory clock speed (max): 9200 MHz
Maximum internal memory: 256 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card: No
Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of water pump connectors: 1
RGB LED pin header: Yes
Number of RGB LED pin headers: 3
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Network
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model: Killer Wi-Fi 7 1750x
Bluetooth: Yes
Bluetooth version: 5.4
Features
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x1 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7
Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm
