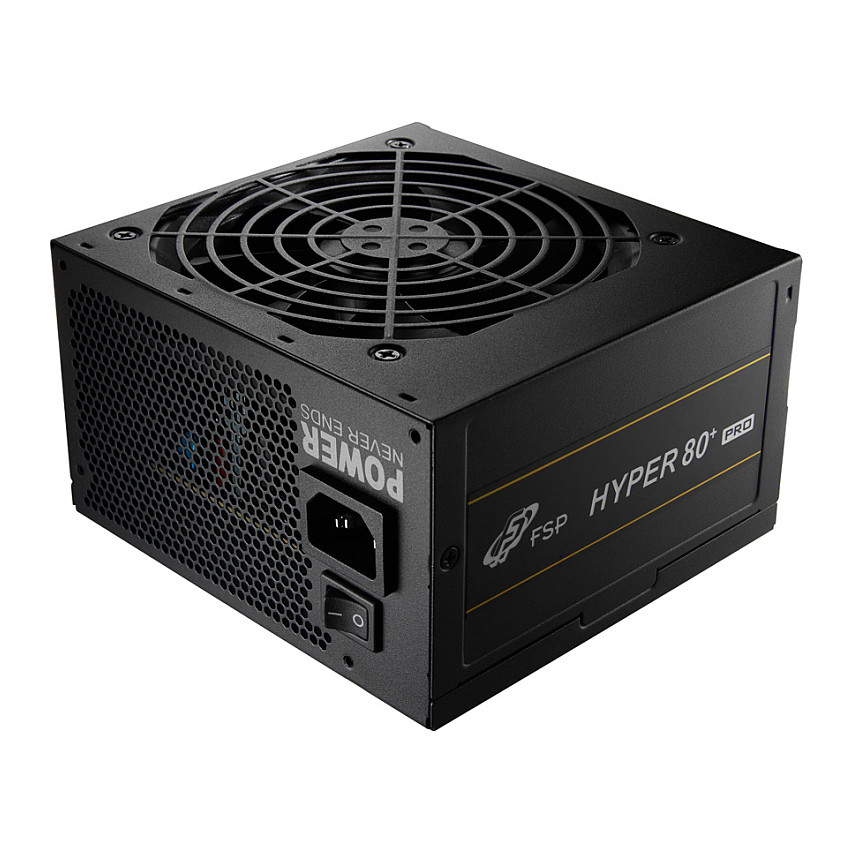

The new HYPER 80+ Pro PSUs comply fully ATX 12 v2.52 standard and latest safety 62368 regulation as well, and features with all black and high-grade ribbon cables, will give your PC a polished look. The HYPER 80+ Pro series is characterized by a powerful single +12V rail design that continually delivers maximum performance for the most demanding components, while FSP’s custom DC-DC design provides safety and power efficiency. With an 230V 80 Plus™ rating, both models deliver over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

80 Plus® 230V EU White Certification

HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.

DC-to-DC Module Design

With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.

450V 105C, Heavy-duty capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Energy Related ErP/Eup 2013

Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.

Keep in Compliance IEC 62368

FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.

Intelligent Fan Speed Control

An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.

120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.

All Black Round Cables

The all black coating round cables give your system a superior look rather so many entry-level power supplies.

Power
Total power: 650 W
AC input voltage: 220 - 240 V
AC input frequency: 50/60 Hz
Input current: 5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 649.2 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 17 ms
Efficiency: 85%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 2
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (8-pin): 1
CPU power connector (4+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Bearing technology: Sleeve
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Illumination: No
On/off switch: Yes
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Certificates
Certification: IEC 62368
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.46 kg
Technical details
Sustainability compliance: Yes
Sustainability certificates: ErP
