ENCLOSURE

TR200 WS Micro Chassis

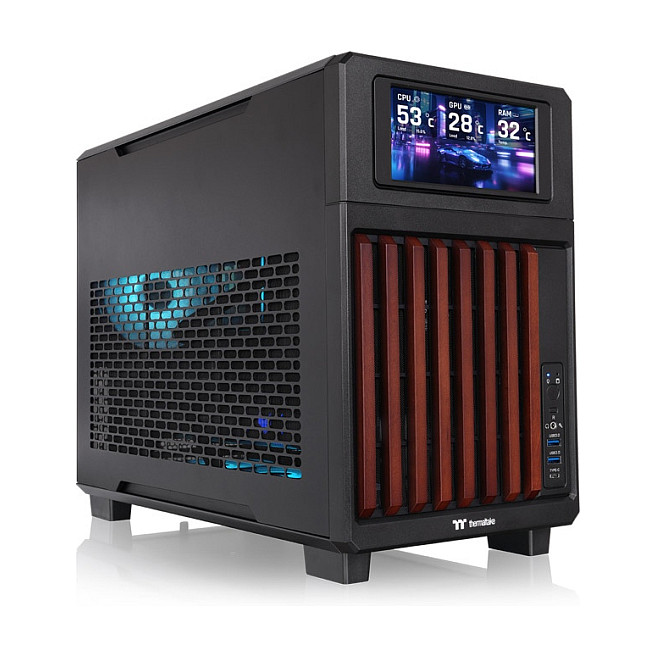

The TR200 WS Micro Chassis is an Micro-ATX case featuring a 5.25” drive bay for multi-purpose use and supports up to 360mm AIO for maximum cooling efficiency. An optional 6” LCD Screen Kit is available for enhanced visuals. Up to seven 120mm fans, and it supports up to 360mm radiator, providing flexible options for cooling solutions.

Visually Pleasing, Totally Interactive
Maximize your TR200 WS Micro Chassis visual effects by upgrading it with our LCD Screen Kit.

The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.

Personalize Your LCD Display
Through TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

Unleash Limitless Creativity with AI Forge
Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.

Storage Support
Supporting up to two 3.5” HDDs and one 5.25” drive bay, or one 3.5” HDD, two 2.5” SSDs, and one 5.25” drive bay.

PSU Installation Compatibility
Supports Mini-ITX and Micro-ATX motherboards; power supply can be installed at different mounting positions inside the case.

Design
Material: Steel, SPCC
Type: PC
Product colour: Black
Supported motherboard form factors: Mini-ITX, micro ATX
Number of 3.5" bays: 2
Number of 5.25" bays: 1
Number of 2.5" bays: 2
Number of expansion slots: 5
Anti-dust filter: Yes
Reset button: Yes
On/off button: Yes
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 36.5 cm
Maximum PSU length: 25.8 cm
Power supply
Power supply included: No
Supported power supply form factors: PS2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Combo headphone/mic port: Yes
Cooling
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 360,240,120,280,140 mm
Storage
Supported HDD sizes: 3.5"
SSD form factor: 2.5"
Weight & dimensions
Width: 220 mm
Depth: 494 mm
Height: 364 mm
