ENCLOSURE

The IPC 2U-20248 is the perfect rack for a low-priced server system. The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

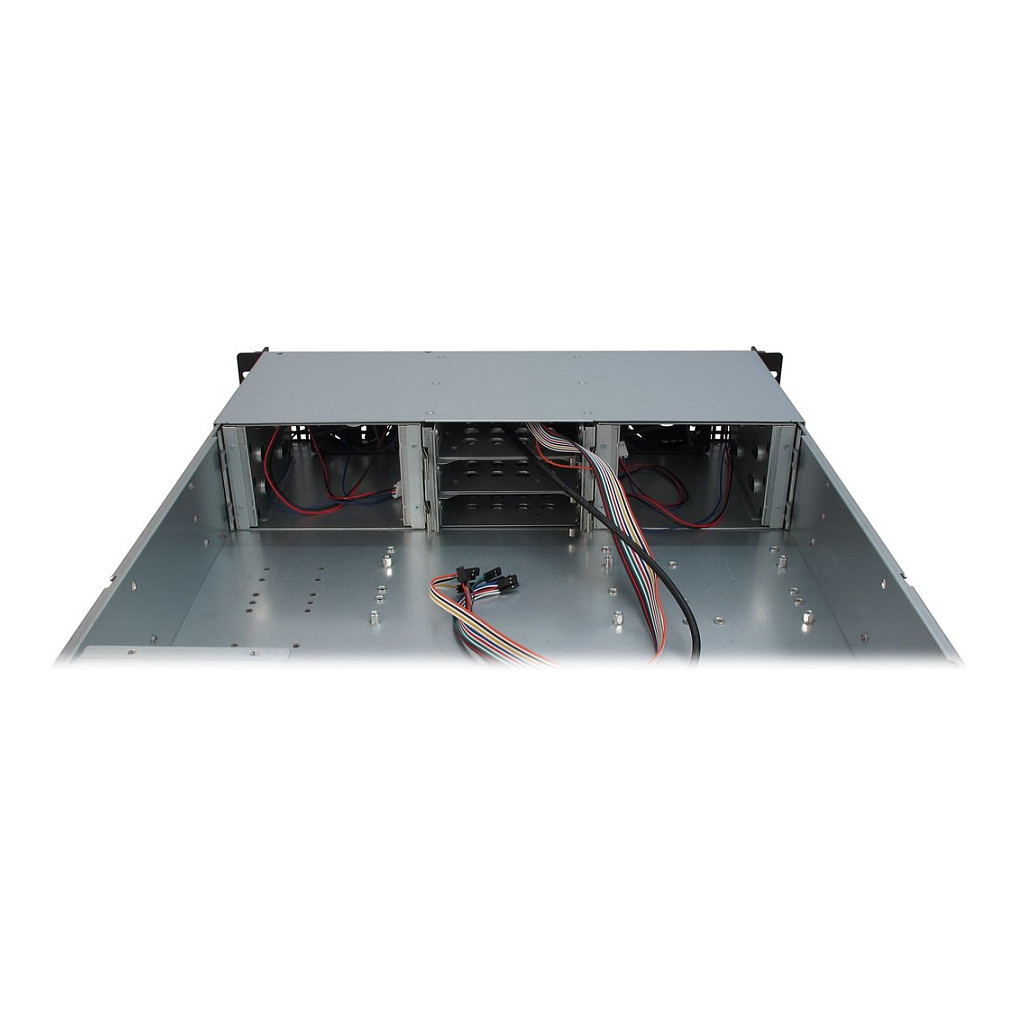

The IPC 2U-20248 provides the possibility to mount eight 3.5" and three 2.5" internal hard drives. Two standard 80mm fans guarantee an optimal cooling.

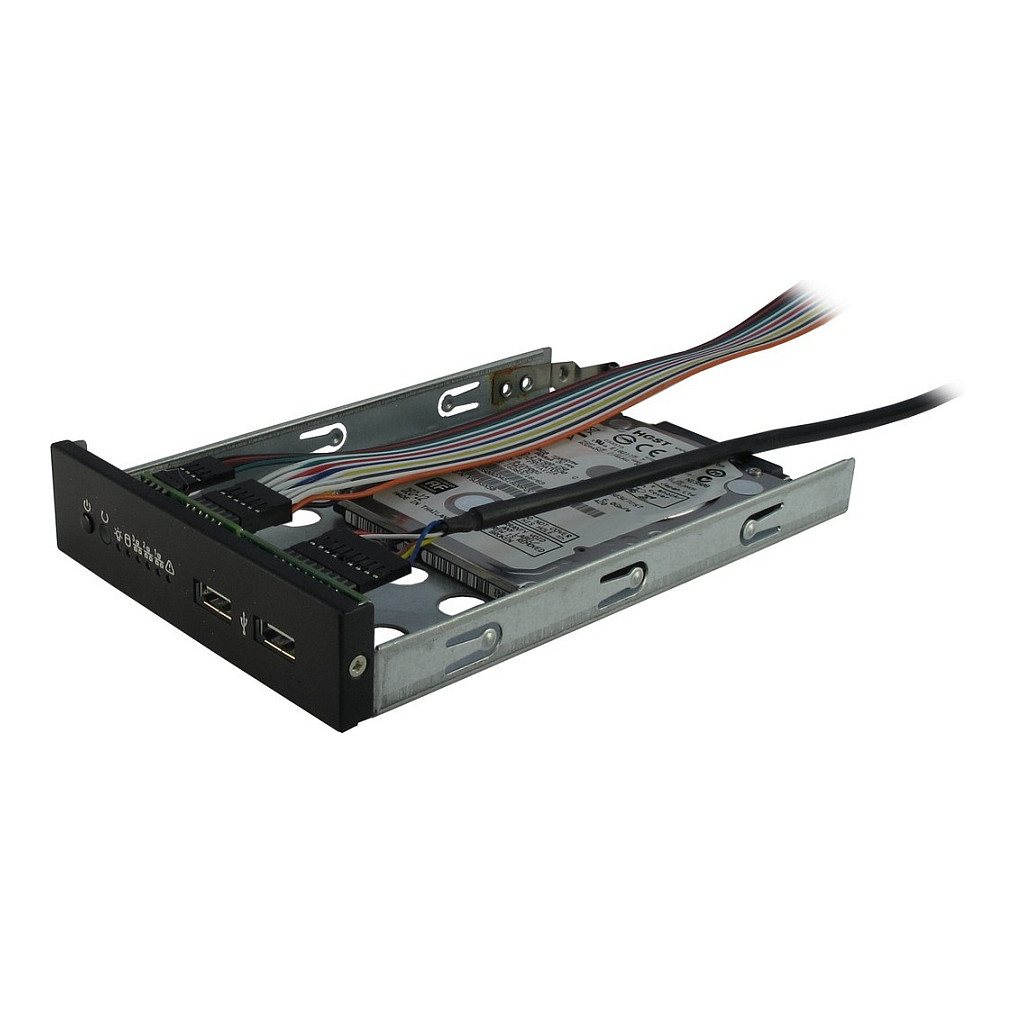

The USB 2.0 connectors are easily reachable.

Design
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 8
Number of 5.25" bays: 4
Number of 2.5" bays: 3
Number of internal 3.5" bays: 8
Feature: Reset button
LED indicators: HDD, Network, Power
Ports & interfaces
Audio input: No
Audio output: No
USB 2.0 ports quantity: 2
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 480 mm
Depth: 515 mm
Height: 89 mm
Weight: 7.39 kg
Material thickness: 1.2 mm
Packaging data
Package width: 555 mm
Package depth: 660 mm
Package height: 160 mm
Package weight: 9.1 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Ventilation fan(s): 2x 80mm
Size (imperial): 48.3 cm (19")
