AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

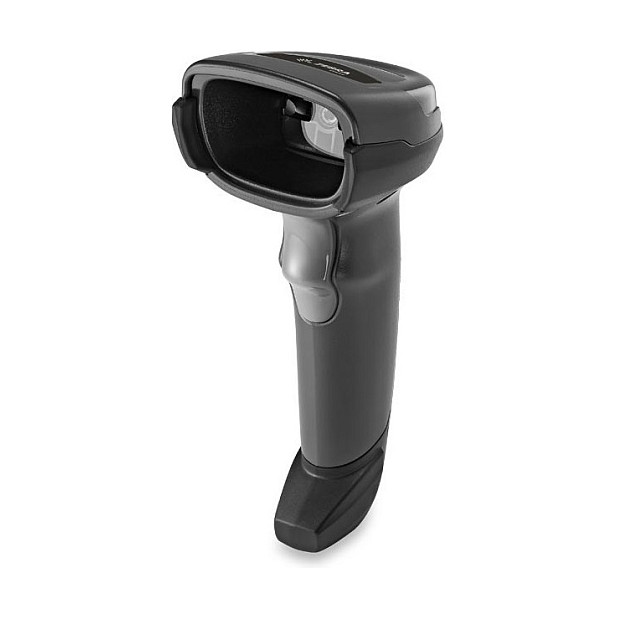

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Scanning
Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported: Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Optical sensor resolution (W x H): 640 x 480 pixels
Working distance: 36.8 cm
Wavelength: 645 nm
Tilt reading angle: -65 - 65°
Pitch reading angle: -65 - 65°
Yaw reading angle: -65 - 65°
Motion tolerance (cm/s): 13
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
Performance
International Protection (IP) code: IP42
LED indicators: Yes
Product colour: Black
Power
Power source type: DC
AC adapter output voltage: 5 V
Power consumption: 250 mA
Weight & dimensions
Width: 66 mm
Depth: 99 mm
Height: 165 mm
Weight: 161.6 g
Packaging data
Cables included: Micro-USB
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84716070
