The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors

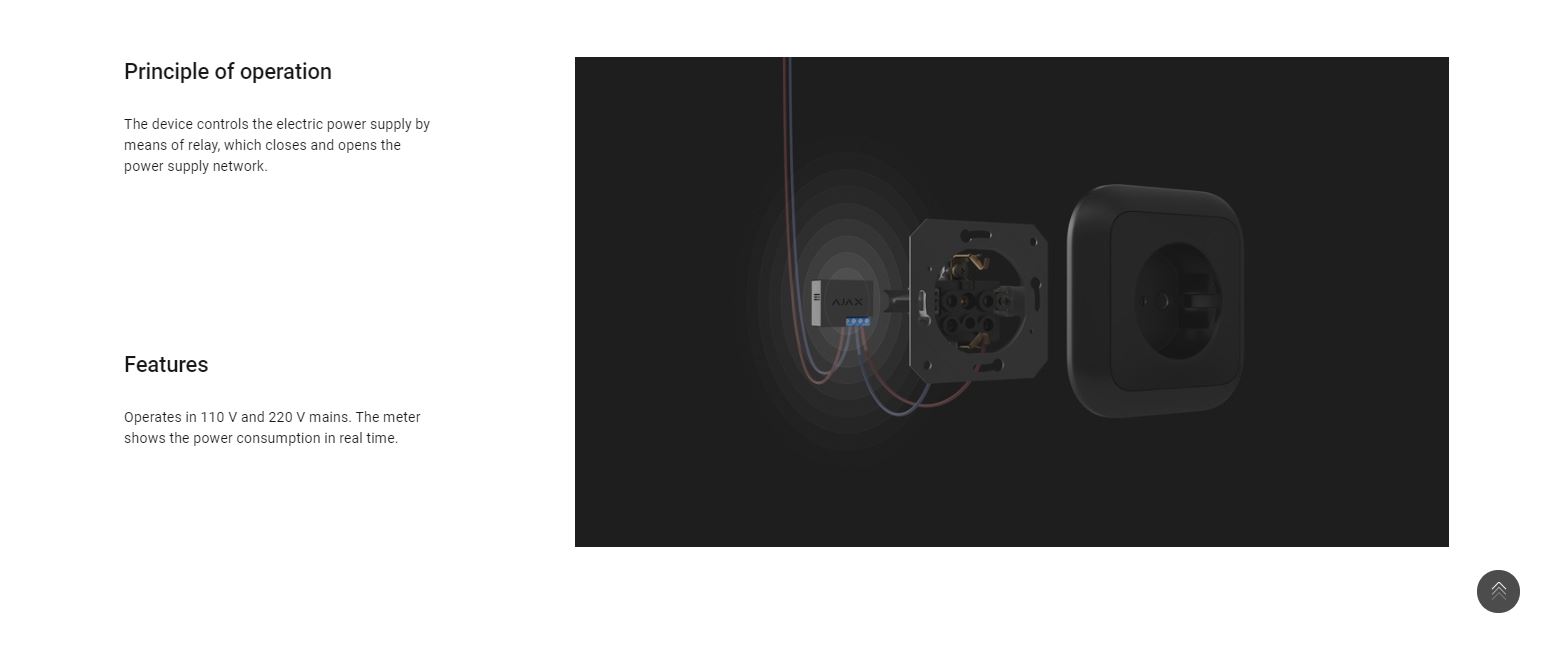

The device controls the electric power supply by means of relay, which closes and opens the power supply network

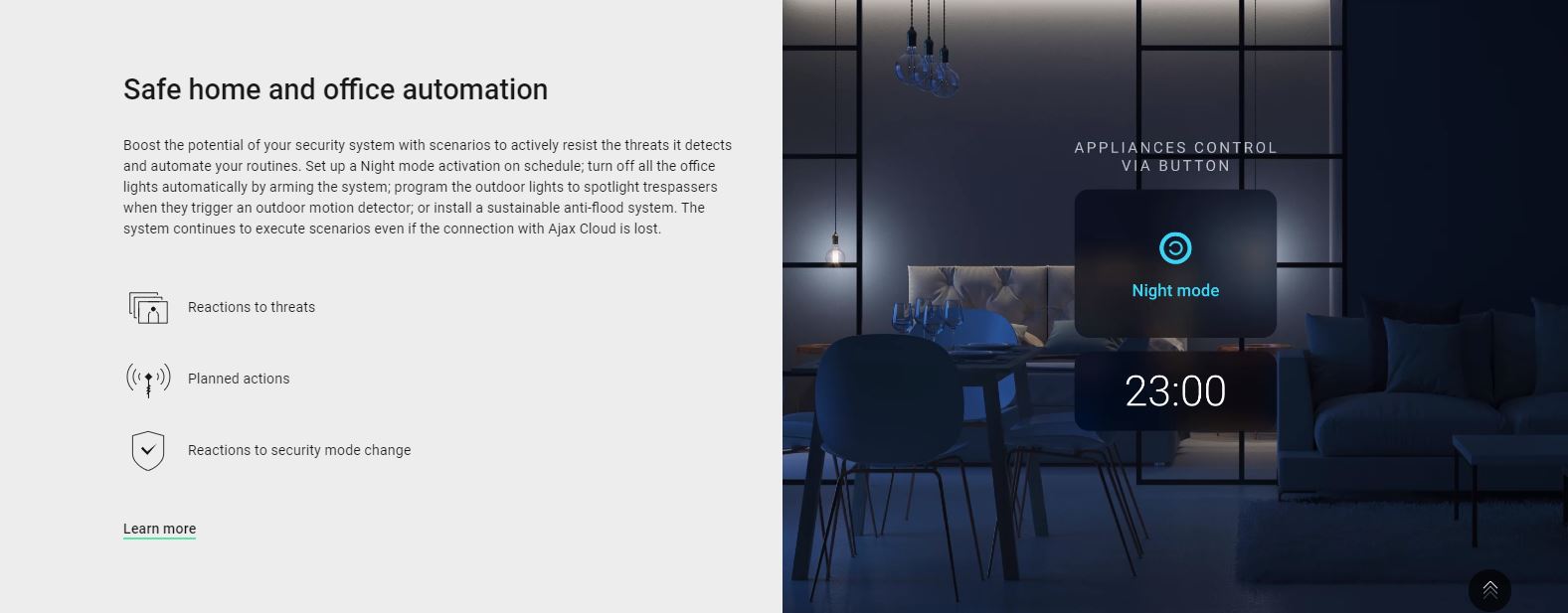

Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost

Actuating element : Electromagnetic relay
The service life of the relay : 200,000 switching-ons
Supply voltage : 110 – 230 V AC ± 10% 50/60 Hz
Voltage protection For 230 V mains : max 253 V, min 184 V
Maximum load current : 13A
Maximum current protection : Yes, 13 A
Power output (resistance load 230 V) : Up to 3 kW
Electricity meter function : Yes
Power consumption parameters control Yes: current, voltage, consumed power
The power consumption of the device in the standby mode : Less than 1 W⋅h
Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
Compatibility Operates only : with Hub, Hub Plus, Hub 2 and ReX
Maximum RF output power : Up to 25 mW
Modulation : GFSK
Radio signal range : Up to 1,000 m (any obstacles absent)
Shell protection rating : IP20
Operating temperature range : From 0°C to +64°C
Maximum temperature protection : Yes, 65°C
Operating humidity : Up to 75%
Overall dimensions : 39 x 33 x 18 mm
Weight : 30 g
