SWITCHES

Advanced features support for digital transformation

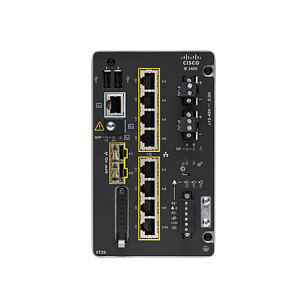

Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.

Modular, versatile switch design

The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.

Compact form factor for rugged switch use cases

Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.

Fast speed, all Gigabit Ethernet

Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Open extensible platform with IOS XE

Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.

Extend intent-based networking to the IoT edge

With Cisco’s highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments.

Management features
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
ARP inspection: Yes
System event log: Yes
MIB support: 802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber ports quantity: 2
Fiber optic connector: SFP
Console port: Mini USB-B/RS-232
USB 2.0 ports quantity: 3
Compatible memory cards: SD
Network
Networking standards: IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Number of VLANs: 256
Data transmission
MAC address table: 8000 entries
Number of queues: 8
Security
DHCP features: DHCP snooping
Access Control List (ACL): Yes
Access Control List (ACL) IPv4 entries: 2000
Access Control List (ACL) IPv6 entries: 512
IGMP snooping: Yes
IGMP entries: 1000
Security algorithms: 802.1x RADIUS, SNMPv3, SSH
MAC address filtering: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN
Multicast features
Multicast support: Yes
Design
Rack mounting: Yes
Product colour: Black
International Protection (IP) code: IP20
DIN rail mounting: Yes
Performance
Internal memory: 4000 MB
Flash memory: 1500 MB
Mean time between failures (MTBF): 549808 h
Power
DC input voltage: 9.6 - 60 V
Input current: 6.3 A
Power consumption (typical): 36 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operational conditions
Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Non-operating altitude: 0 - 4572 m
Weight & dimensions
Width: 152.4 mm
Depth: 134.6 mm
Height: 91.4 mm
Weight: 1.72 kg
Certificates
Certification: FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386, CISPR 24, EN 55024, KN 35, EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-8 Power Frequency Magnetic Field (1000A/m), EN 61000-4-10 Pulsed Magnetic Field (30 A/m), EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec), EN 61000-4-17 Ripple Immunity DC Power (10%), EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz), EN-61000-4-29 DC Voltage Dips and Interruptions, EN 61000-6-2 Industrial Immunity, EN 61000-6-4 Industrial Emissions, EN 61000-6-1 Light Industrial Immunity, EN 61326-1 Measurement, Control and Laboratory Equipment, IEEE 1613 Electric Power Stations Communications Networking2, EN/IEC 61850 -3 Electric Substations Communications Networking2, EN50121-4 Railway – Signaling and Telecommunications Apparatus, ODVA Industrial EtherNet/IP, IP30, Information Technology Equipment:, UL/CSA 60950-1, CB to IEC 60950-1 with all country deviations, UL/CSA 62368-1, CB to IEC 62368-1 with all country deviations2, Industrial floor (control equipment):, UL/CSA 61010-2-201, CB report and certificate to IEC/EN 61010-2-201, Hazardous Locations, UL121201(Class l, Div 2, groups A-D), CSA 213 (Class l, Div 2, groups A-D), UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC), IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC), EN 60079-0, -15 ATEX certifícate (Class l, Zone 2, Gc/IIC) cabinet enclosure required, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-60
Logistics data
Harmonized System (HS) code: 85176990
